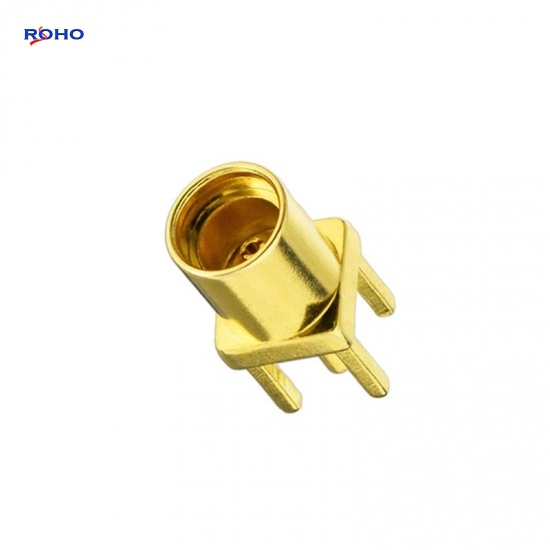

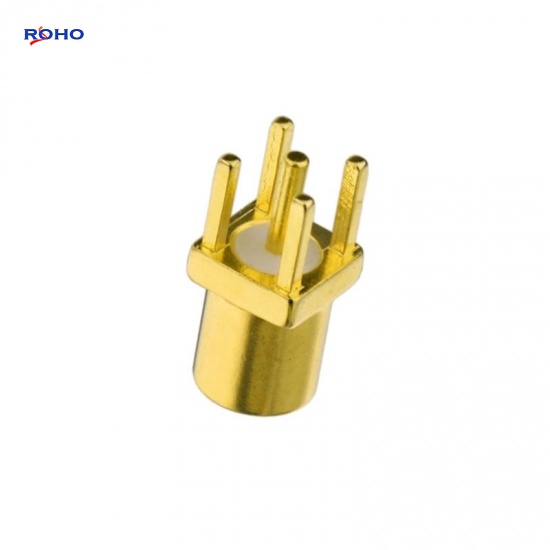

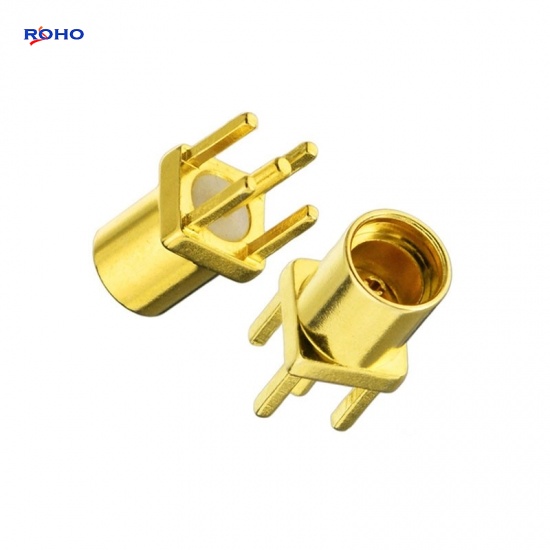

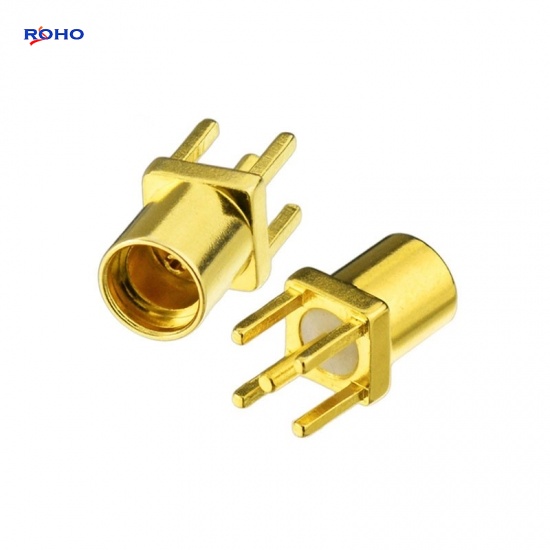

4 Feet Gold Plated RF Coaxial MMCX Jack Female Connector for PCB Mount
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50 ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series, and are available in a wide array of configurations.
Specifications
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range | DC-6GHz |
| Dielectric withstanding voltage (at sea level) | ≥750Vrms,50Hz |
| Working voltage | ≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance | ≥ 10000 mΩ |
| Contact resistance | Inner conductor: ≤5mΩ |
| Outer conductor: ≤1mΩ | |
| RF leakage(measured at 1GHZ) | Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB | |
| MECHANICAL DATA | |
| Engagement force | ≤25Nm /5.6lbs |
| Disengagement force | ≥8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation | ≥10N / 2.3 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | −40°C to +90°C |
| MATERIAL DATA | |
| Bodies | Brass--Au plated |
| Pin contacts | Brass--Au plating |
| Socket contacts | Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules | Brass--Au plating |
| Insulator | PTFE |
Applications
- Instrumentation
- Antennas
- Satcom
- Base Stations
- GPS
- Broadband
- Telecommunications
