5W N Type Male Termination Dummy Load 50ohm DC-3GHz/6GHz Terminator

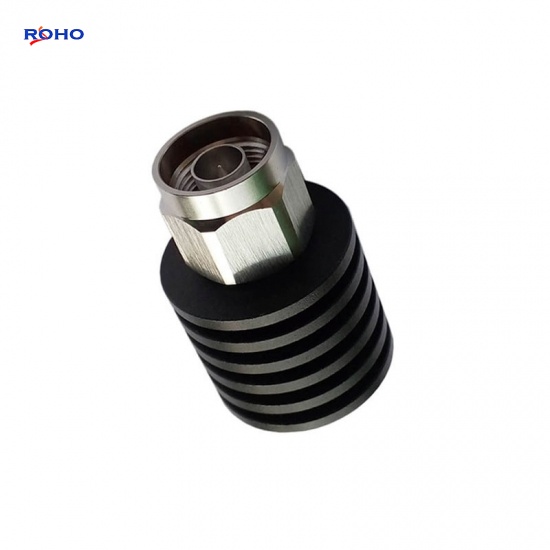

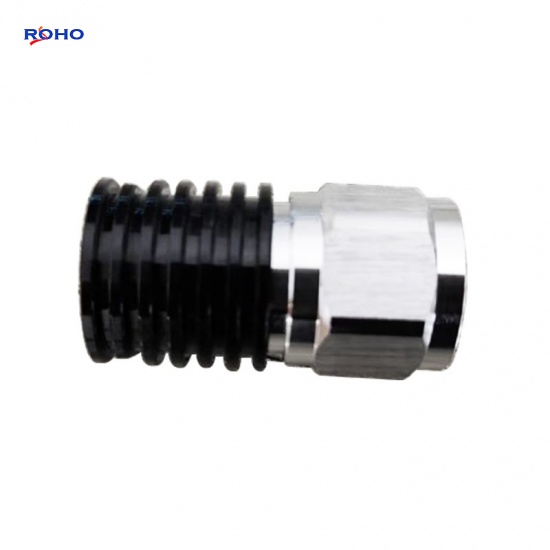

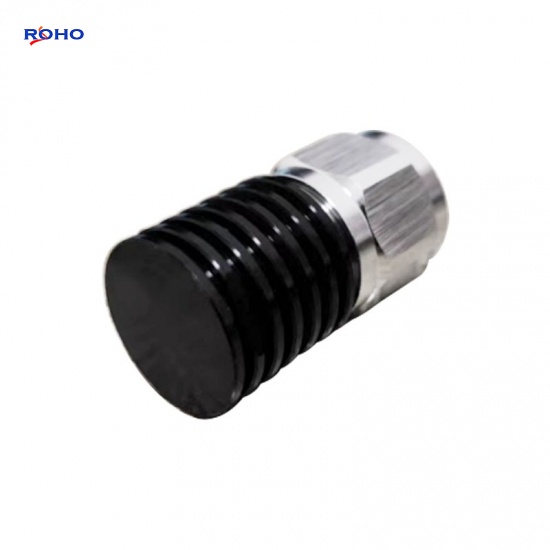

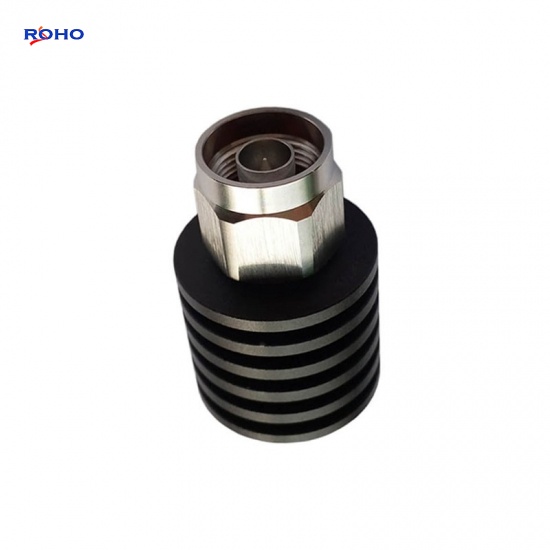

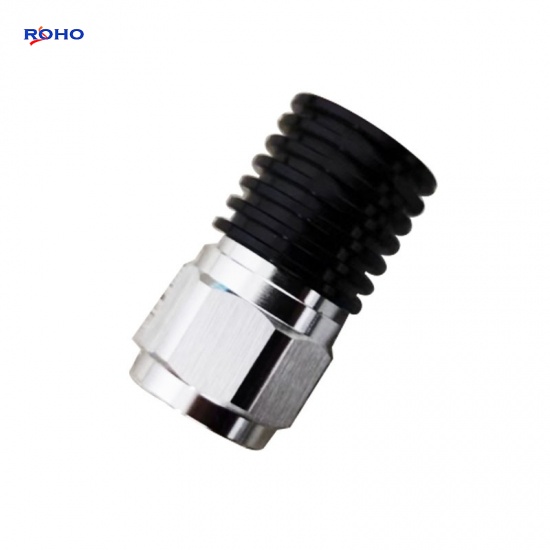

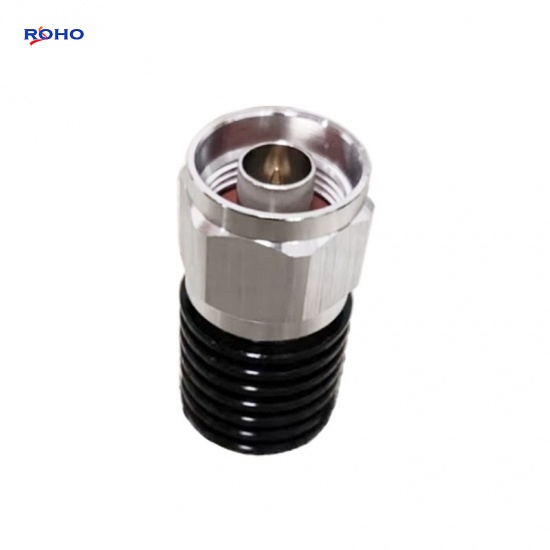

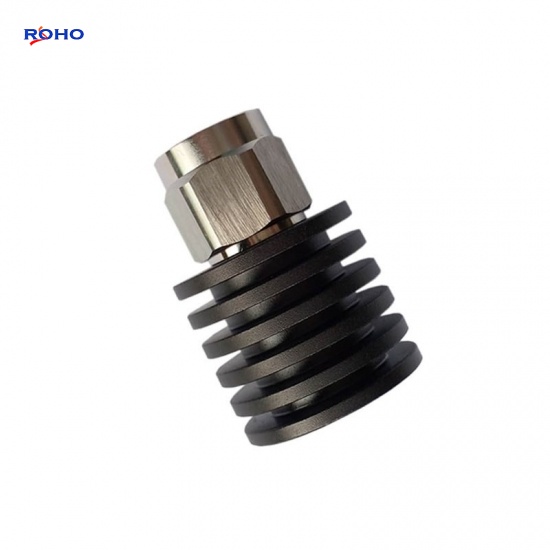

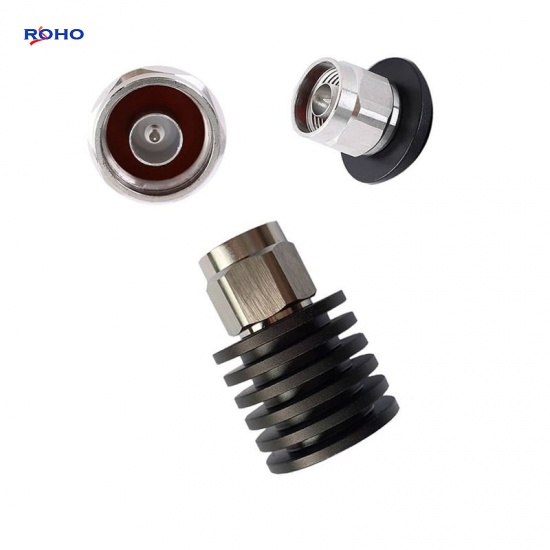

The 5W N dummy load (also known as 5W N termination or 5W N RF load) has a type N connector that is male. This 5W type N male load / termination is rated for a maximum frequency of 6GHz. ROHO's N type male termination load is a rf load termination with a 50ohm impedance; This type N load / coax terminator has an average maximum VSWR of 1.2:1. The 5W N type male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
ELECTRICAL DATA | |
Frequency | DC~3GHz/6GHz |
Connector | N Male |
VSWR | ≤1.2 |
Power | 5W |
Impedance | 50Ω |
Temperature Range | -55℃~+125℃ |
MATERIAL DATA |
|
Connector body | Brass,Plating Ni |
Insulator | PTFE |
Inner Conductor | Phosphor Bronze ,Plating Au |
Housing | Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
