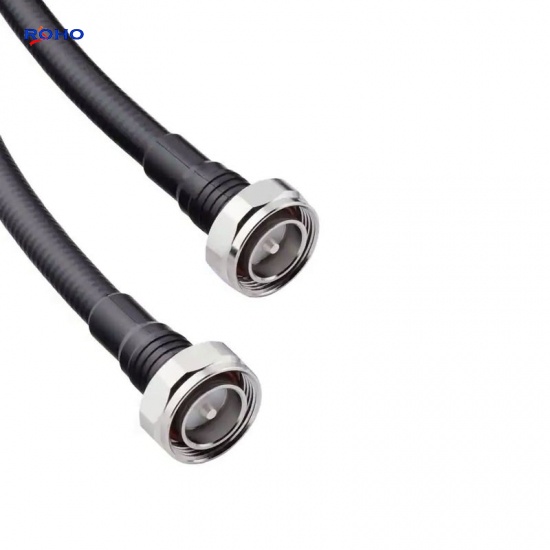

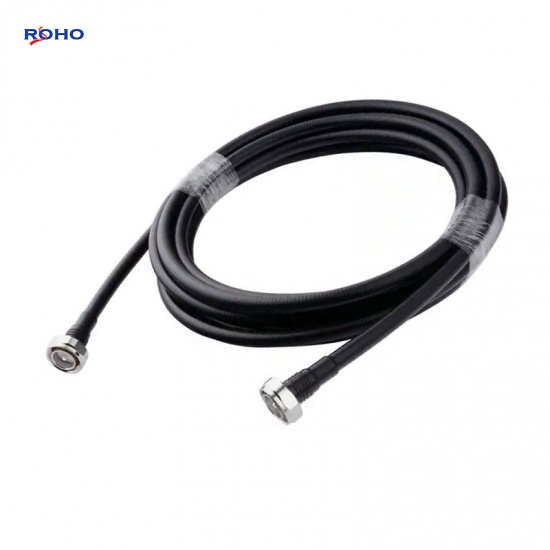

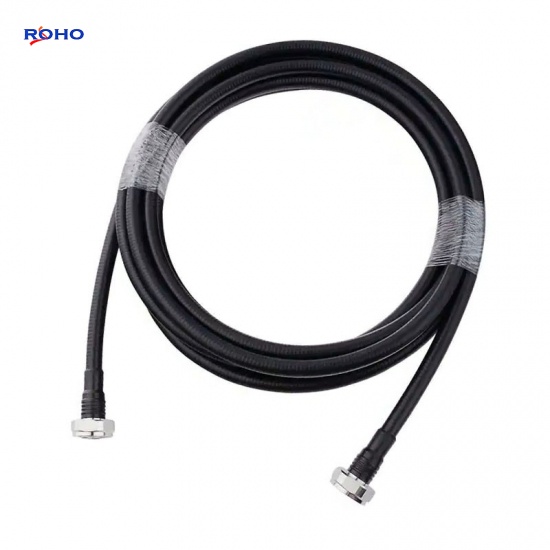

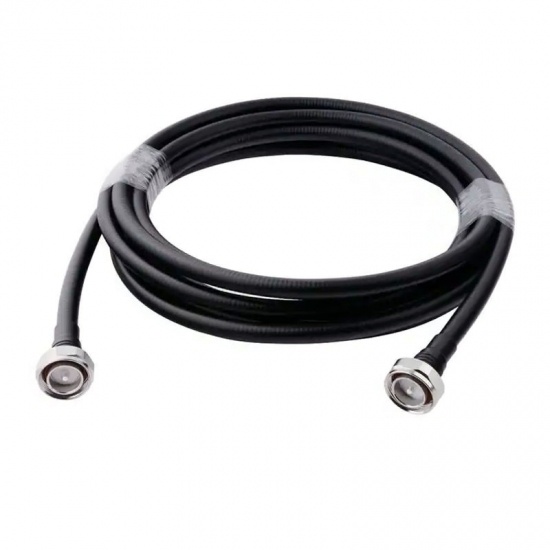

7-16 DIN Male to 7-16 DIN Male Connector Cable Assembly with 1/2 Superflexible Cable
The 7-16 DIN cable assembly can use flexible or corrugated coaxial cable such as TFT402, LMR-240 and 1/4" Superflexible; the body of 7-16 DIN to 7-16 DIN cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 7-16 DIN to 7-16 DIN cable assembly is a low PIM cable. This 7-16 DIN male to 7-16 DIN male cable assembly uses a 50ohm straight 7-16 DIN for connector 1 and a 50ohm straight 7-16 DIN for connector 2, Cable is 50ohm 1/2 super flexible.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | 7-16 DIN |
| Connector 1 Style | Str Male |
| Cable Type | 1/2 Super flexible |
| Connector 2 Series | 7-16 DIN |
| Connector 2 Style | Str Male |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Max Frequency | 6 GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
