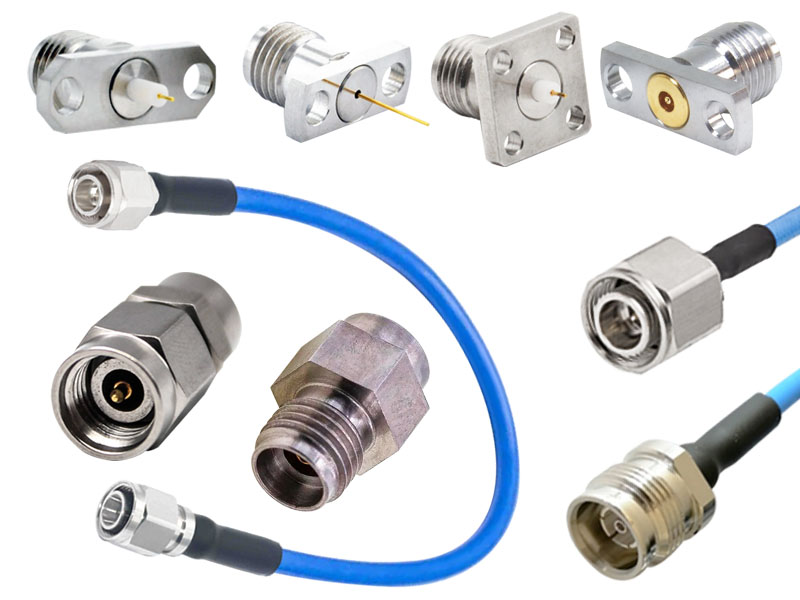

In the world of RF connectors, the 2.92mm connector has gained popularity due to its exceptional performance and versatile applications. In this blog post, we will delve into two essential components related to the 2.92mm connector: the 2.92mm dummy load and the 2.2-5 cable assembly, highlighting their key features.

1. 2.92mm Dummy Load:
   The 2.92mm dummy load offers crucial termination functionality, ensuring signal integrity and preventing reflections. Key features include:

• High-Frequency Performance: The 2.92mm dummy load supports high-frequency applications with low insertion loss and excellent VSWR characteristics.
• Reliable Termination: It provides proper impedance termination, minimizing signal reflections and maintaining system performance.
• Compact Design: With its small form factor, the 2.92mm dummy load allows for efficient space utilization in RF systems.

    Applications:
    The 2.92mm dummy load finds applications in various scenarios, including:

• RF Testing: It serves as a reliable termination load in RF testing setups, enabling accurate measurements and signal integrity preservation.
• Lab Experiments: The 2.92mm dummy load is commonly used in research laboratories for impedance matching and calibration purposes.
• Prototype Development: It aids in the development and testing of RF circuits and systems.

2. 2.2-5 Cable Assembly:
   The 2.2-5 cable assembly provides seamless connectivity between RF components, offering excellent signal performance. Key features include:

• Low Loss: The 2.2-5 cable assembly ensures minimal signal loss, maintaining signal integrity and preserving system efficiency.
• Compact Form Factor: With its compact design, the cable assembly allows for easy installation and routing in space-constrained environments.
• Durability: Built with high-quality materials, the 2.2-5 cable assembly offers robustness and long-term reliability.

    Applications:
    The 2.2-5 cable assembly is widely used in various applications, including:

• 5G Networks: It is employed in 5G base stations and small cell installations, delivering high-speed and reliable connectivity.
• Wireless Communication Systems: The 2.2-5 cable assembly facilitates seamless signal transmission in wireless communication systems, including Wi-Fi and Bluetooth.
• RF Test Equipment: It connects RF test equipment, such as spectrum analyzers and network analyzers, to DUTs (Devices Under Test), ensuring accurate measurements.
