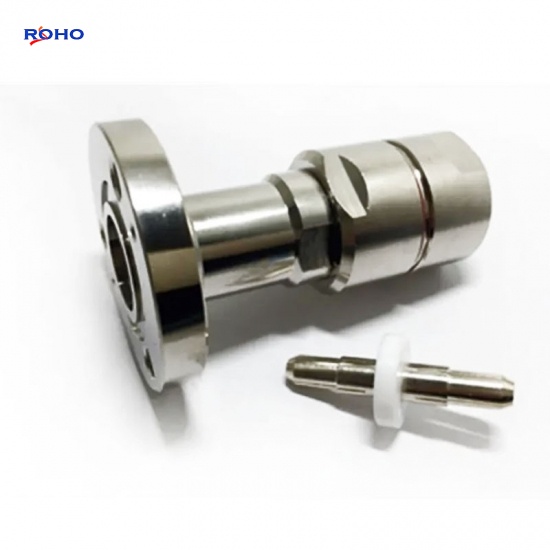

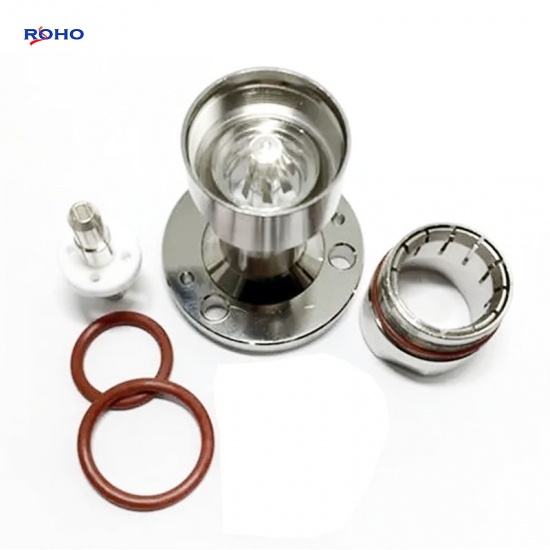

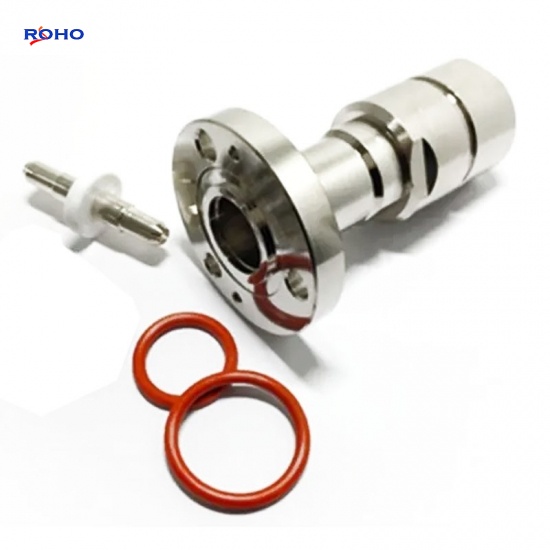

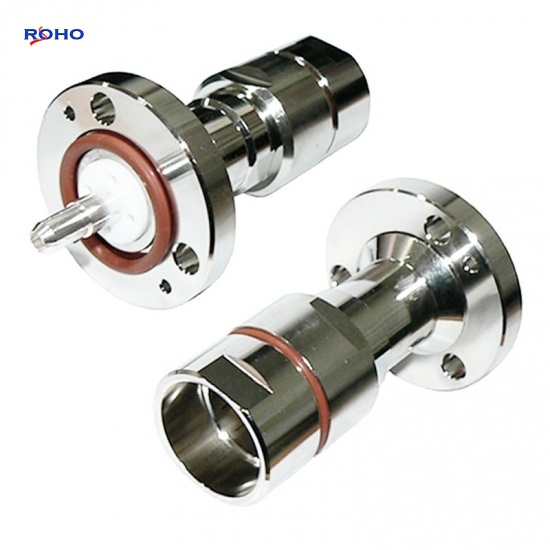

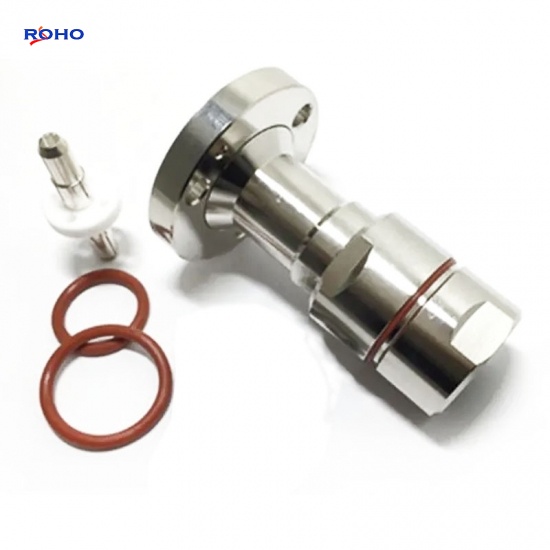

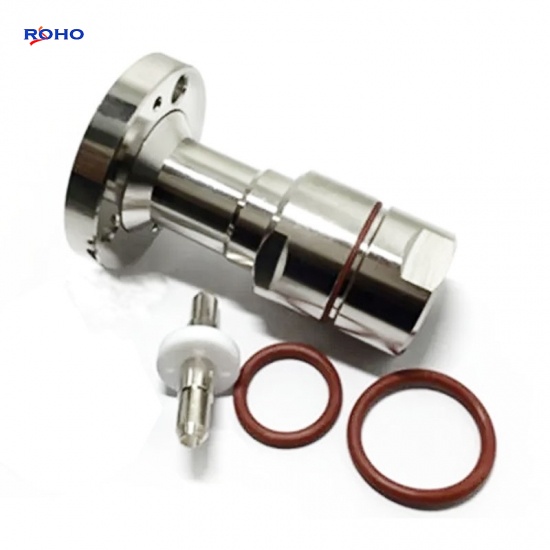

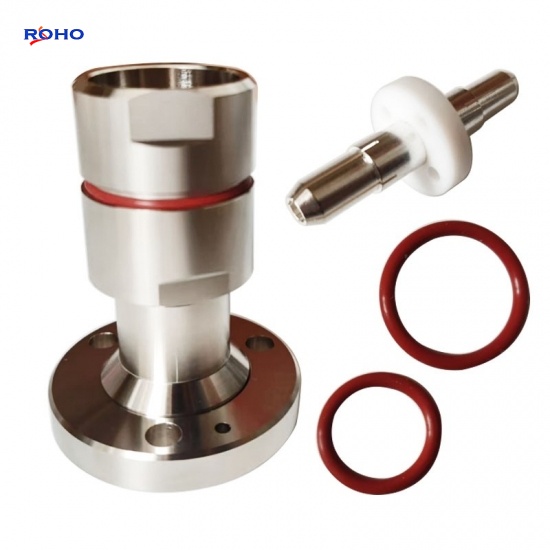

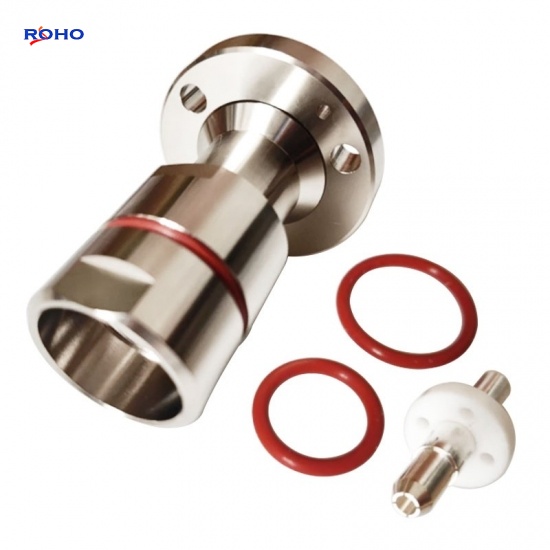

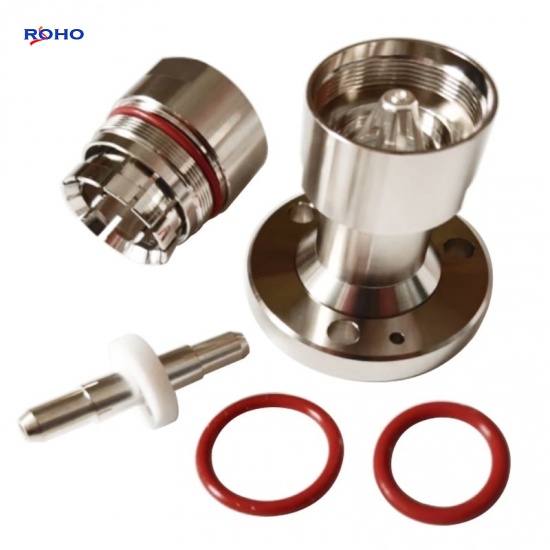

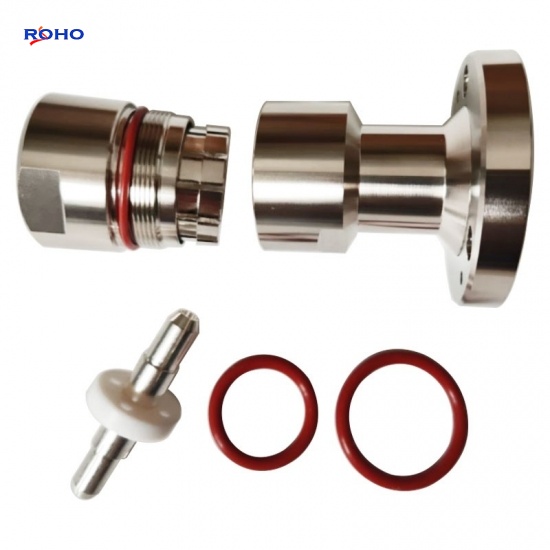

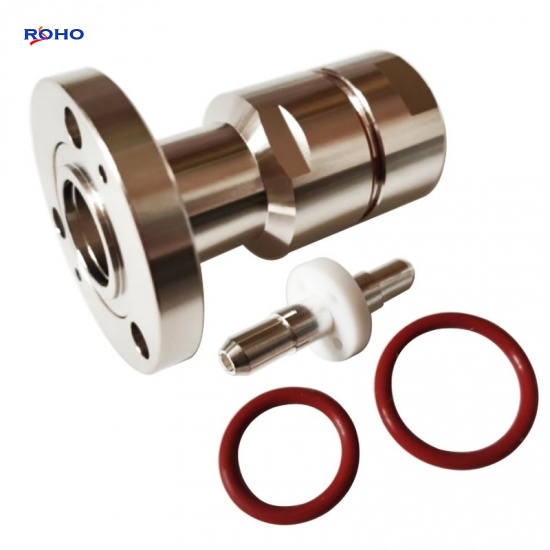

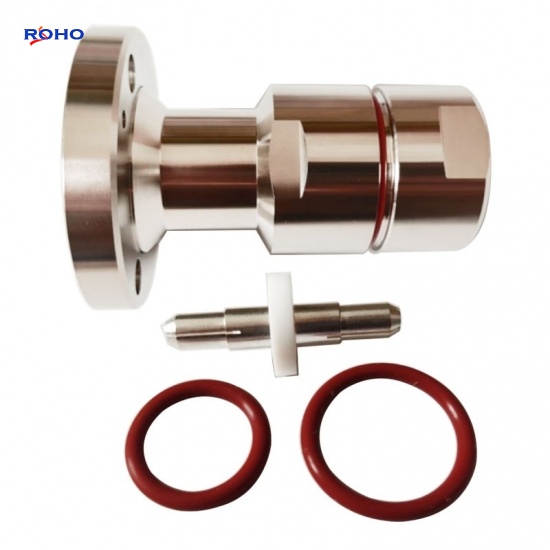

7/8" EIA Flange Clamp Connector for 7/8" Flexible Cable

Features:

  • Suitable for all the main manufacturers of the RF market;
  • Low losses, high performance and great robustness;
  • Easy mount installation with conventional tools;
  • Protection IP66 to IP68.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

7/8" EIA Flange Clamp Connector for 7/8" Flexible Cable



The EIA coaxial connectors are available in EIA 7/8”, EIA 1 5/8”, EIA 3 1/8”, EIA 4 1/2” and EIA 6 1/8” versions, all of which are suitable for RF applications. Designed to support cables with foam or air-dielectric, they consist of a main body, mounting flange with various bolt circles, and typically have interchangeable/removable center conductor “bullets”. Due to the flexibility of their design, EIA connectors are often not identified as male or female, as the connector can typically be configured as either. EIA connectors can be found in high power applications on directional couplers, coaxial cables, power amplifier outputs, and interconnects on communication towers and antennas. The most common sizes found in general test and measurement applications are the 1 5/8 and 7/8 EIA. There are a variety of adapters available to adapt the EIA series to some of the larger RF connectors such as the 7-16 and N type. This is a 7/8" EIA flanged clamp connector with internal O-rings, suitable for 7/8" corrugated shielded, foam dielectric coaxial cable, or any equivalent 7/8" cable.



Specifications

ELECTRICAL DATA
Frequency Range       DC-5GHz
VSWR    ≤1.07@DC-1000MHz
Insertion loss typical ≤0.05DBi
Dielectric Withstanding Voltage ≥6000V RMS,50Hz,at sea level
Dielectric Resistance  ≥5000MΩ
Peak Power Maximum 90KW
Average Power 2.3KW @900MHz
Contact Resistance  Center Contact ≤1.5mΩ       Outer Contact ≤1.5 mΩ
MECHANICAL DATA
Durability Mating cycles ≥500
ENVIRONMENTAL DATA
Operating Temperature -45 °C-85 °C
Weatherproof Rate IP67
RoHs (2002/95/EC) Compliant
Suitable Cable Family 7/8" corrugated shielded, foam dielectric coaxial cable, or any equivalent 7/8" cable
MATERIAL DATA
Body Brass
Insulator PTFE
Inner Conductor Phosphor Bronze
Coupling Nut Brass
Gasket Silicone Rubber
Cable Clamp Brass
Hardware kit(Bolts /Nut/Washer) Stainless Steel



Applications

  • Mobile communication
  • Broadcast
  • Measurement
  • Satellite communication
