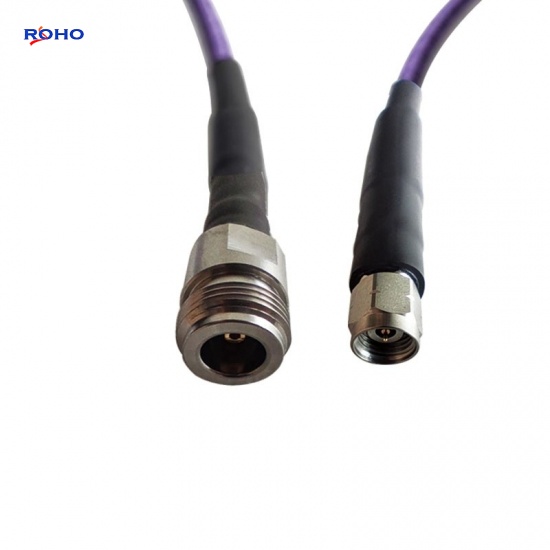

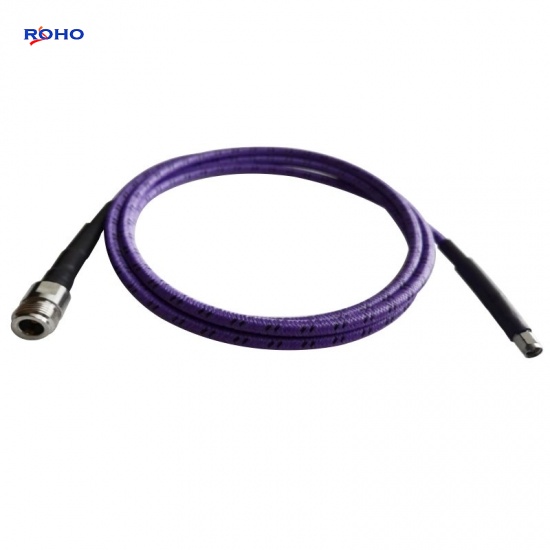

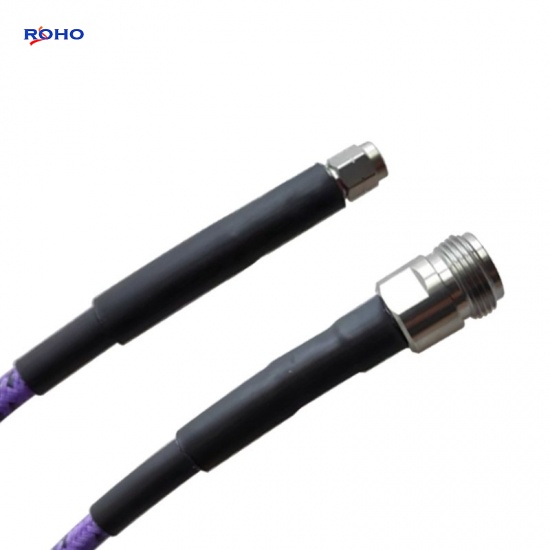

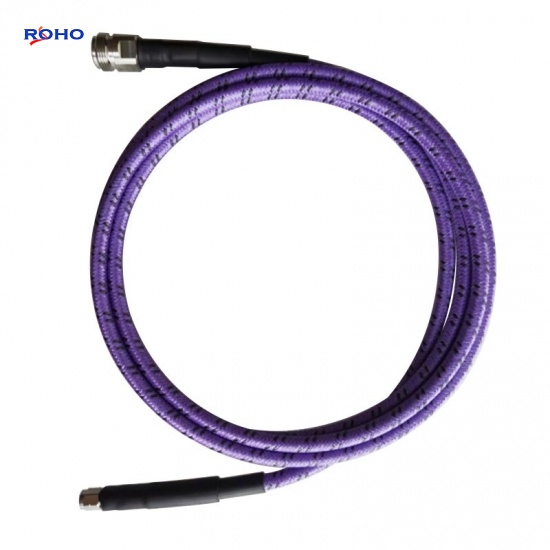

High Performance Stainless Steel 2.4mm Male to N Female Connector Cable Assembly with ZT40P Cable
The 2.4mm cable assembly can use flexible, formable or semirigid coaxial cable such as RG405, RG402, ZT40, ZT40P Cable; the body of 2.4mm to N cable assembly is straight connectors which is female to female, male to female or male to male gender. This 2.4mm male to N female cable assembly uses a 50ohm straight 2.4mm for connector 1 and a 50ohm straight N for connector 2, Cable is 50ohm ZT40P.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | 2.4mm |
| Connector 1 Style | Str Male |
| Cable Type | ZT40P |
| Connector 2 Series | N Type |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 8GHz |
| Working Temperature | -65°C to +165°C |
| ELECTRICAL DATA | |
| Body Material |
Stainless Steel |
| Body Finish |
Passivated |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material | PTFE |
Applications
- VNA network analyzer
- RF and microwave test instrument
- production line test
- ATE system
- laboratory
