2.92mm Cable Assemblies

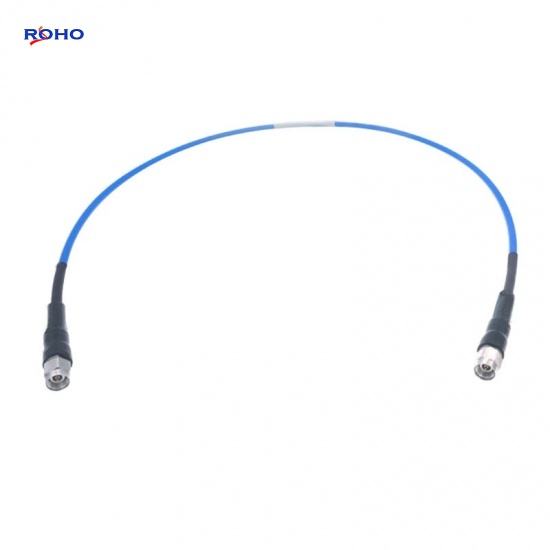

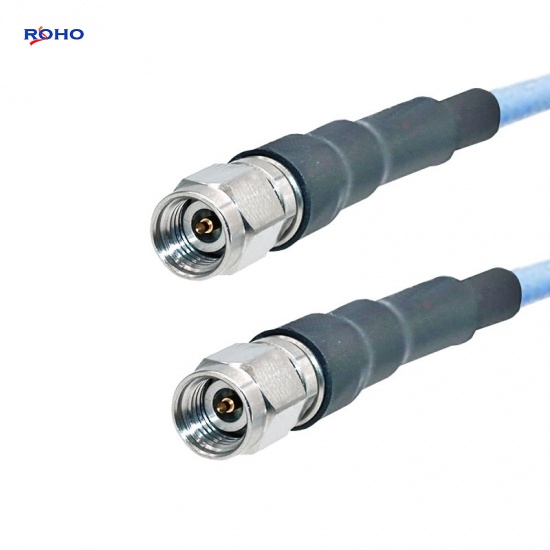

2.92mm Male to 2.92mm Male Connector Cable Assembly with .085 Flexible Spiral Strip Cable

2.92mm Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, or SMA connector;
  • Body is all straight connectors;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

2.92mm Male to 2.92mm Male Connector Cable Assembly with .085 Flexible Spiral Strip Cable



The 2.92mm cable assembly can use flexible, formable or semirigid coaxial cable such as RG405, RG402 Cable; the body of 2.92mm to 2.92mm cable assembly is straight connectors which is female to female, male to female or male to male gender. This 2.92mm male to 2.92mm male cable assembly uses a 50ohm straight 2.92mm for connector 1 and a 50ohm straight 2.92mm for connector 2, Cable is 50ohm .085" Cable.



Specifications

ELECTRICAL DATA
Connector 1 Series 2.92mm
Connector 1 Style Str Male
Cable Type .085" Cable
Connector 2 Series 2.92mm
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 40GHz
Working Temperature -65°C  to +165°C
ELECTRICAL DATA
Body Material
Stainless Steel
Body Finish
Passivated
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • VNA network analyzer
  • RF and microwave test instrument
  • production line test
  • ATE system
  • laboratory



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
2.92mm Male to 2.92mm Male Cable Assembly
RF Coaxial 2.92mm Male to 2.92mm Male Plug with Low Loss Flexible Cable Assembly
2.92mm Cable assembly Features: Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, or SMA connector; Body is all straight connectors; Cable Can use flexible, formable or semirigid cable.
2.92mm Male to 2.92mm Male Cable Assembly with Semi-Rigid Cable
Factory Customizable 2.92mm Male to 2.9mm Male Connector Cable Assembly with Semi-Rigid RF Coaxial Cable
2.92mm Cable assembly Features: Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, or SMA connector; Body is all straight connectors; Cable Can use flexible, formable or semirigid cable.
2.92mm Male to 2.92mm Female Cable Assembly with Flexible Cable
2.92mm Male to 2.92mm Female Connector Cable Assembly with Low Pim Flexible Cable
2.92mm Cable assembly Features: Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, or SMA connector; Body is all straight connectors; Cable Can use flexible, formable or semirigid cable.
2.92mm Male to Mini SMP Female Cable Assembly with .047 Cable
2.92mm Male to Mini SMP Female Connector Cable Assembly .with .047 Semi-Flexible Cable
2.92mm Cable assembly Features: Can be combined with 1.85mm, 2.4mm, 2.92mm,3.5mm, SMP, or SMA connector; Body is all straight connectors; Cable Can use flexible, formable or semirigid cable.
N Male to SMA Male 4 Hole Flange Adapter
N Male to SMA Male 4 Hole Flange Mount Straight RF Connector Adapter
N type adapters Features: Allow to interface N connectors with N, QMA, QN, SMA, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7-16 DIN, 4.3-10, BNC, MCX, UHF, SMB, TNC or UHF connectors; Satisfy for a durable, weatherproof, medium-size RF adapter with consistent performance; High frequency range up to 8GHz; Threaded coupling mechanism, used in all systems where excellent RF and mechanical performance.

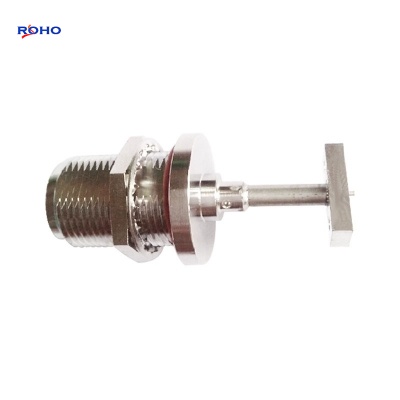

N Type Female Bulkhead Coaxial Connector
