FAKRA Cable Assemblies

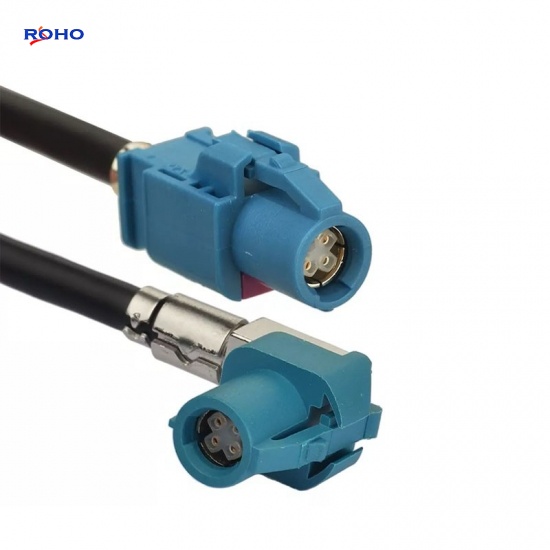

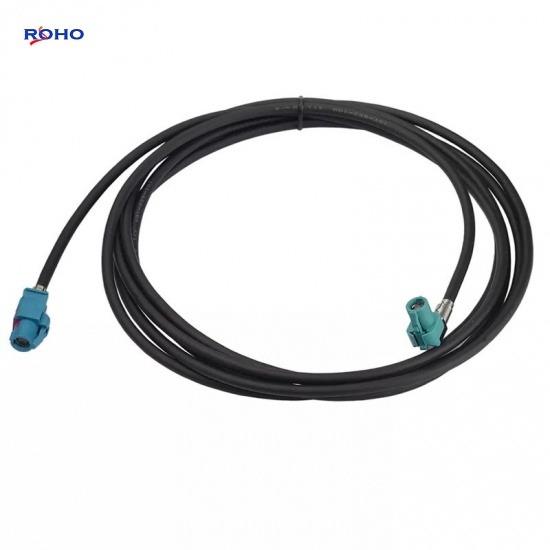

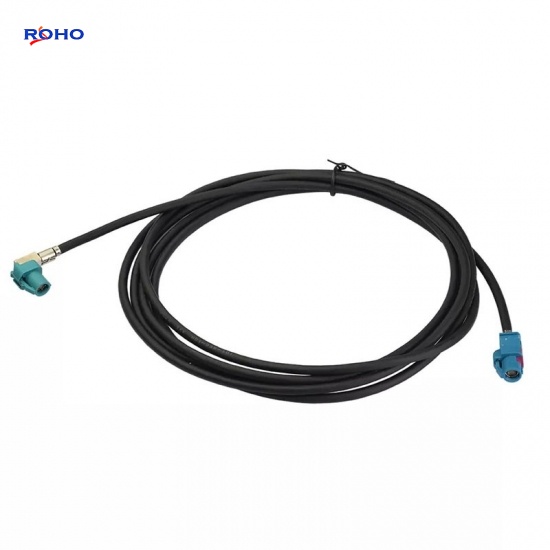

Fakra 4 Pin HSD Z Straight Jack to Fakra HSD Z Right Angle Jack Connector Assembly with Dacar 535 4-Core Cable

FAKRA Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, SMA or TNC connector;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Fakra 4 Pin HSD Z Straight Jack to Fakra HSD Z Right Angle Jack Connector Assembly with Dacar 535 4-Core Cable



The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to Fakra cable assembly is right angle or straight connectors which is jack to jack, jack to plug, plug to jack or plug to plug gender. This Fakra HSD jack to Fakra HSD jack cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm Fakra for connector 2, Cable is 50ohm flexible cable type dacar 535 4-core.



Specifications

ELECTRICAL DATA
Connector 1 Series Fakra HSD Z
Connector 1 Style Str Jack
Cable Type Dacar 535 4-Core
Connector 2 Series Fakra HSD Z
Connector 2 Style RA Jack
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material PA / PBT & PA / LCP
Body Finish
Black /  White /  Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Advanced Driving Assistant System (ADAS)
  • Telematics, multimedia
  • Infotainment, GPS
  • Navigation and camera
  • Body control, safety, security and comfort



Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products
Fakra Male to Female Cable Assembly

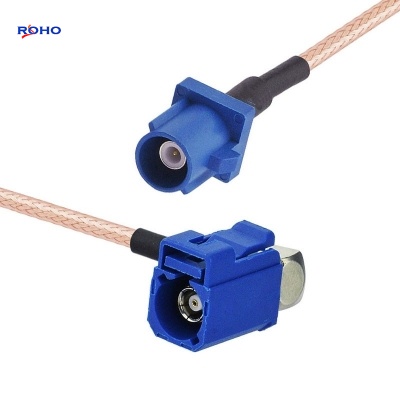

Blue Fakra Male Plug to Fakra Female Jack Right Angle with RG316 Cable Assembly
