The connectors are the mating elements which lines connected with appropriate ,Electronica mechanical components that enable the circuit to be turned on and off. They are called as plug-ins, plugs and sockets,With the difference among object, frequency, power, application environment. There are different types of connectors.for example,In aviation, There are aviation plug, aviation socket and so on, In life, waterproof connectors and cable connectors are used, In society, Connectors are widely used in military systems such as aviation, spaceflight and national defense.

    The first，the choice of connector series is based on the application environment of the required product.

    1. wireless base station.

    2. Transmission equipment, switching equipment.

    3. Backplane, set-top box, network card.

    The choice of connector series is based on product performance and mechanical requirements. Such as impedance matching, VSWR, maximum frequency, Transmission power matching etc, A typical application environment can lead you to connect the parts of the product catalog.

    1. wireless base station

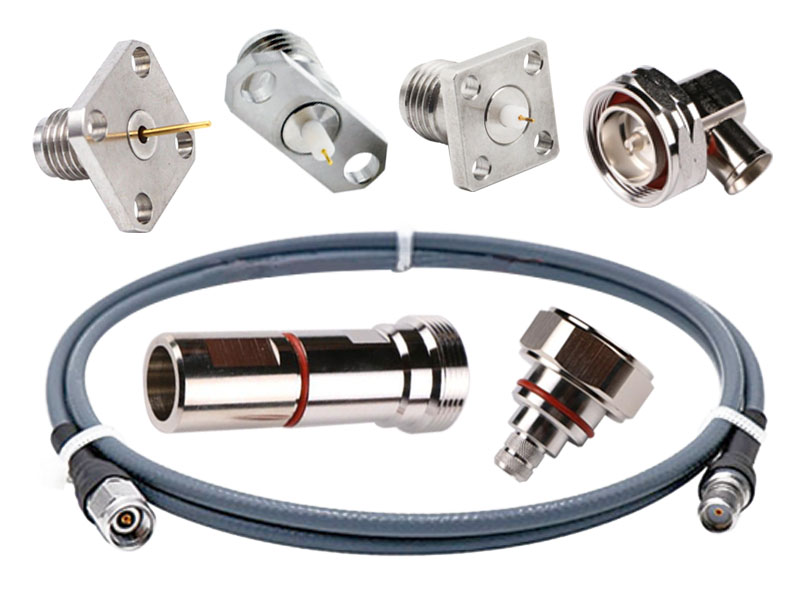

    Wireless base stations need to emit high power radio frequency signals, high-speed digital signals, and similar signals. Input/output port of equipment housing generally use N type and 7/16 type connectors. embedded rf modules require a blind matching series. Like BMA series, DIN series import module and panel connector, input/output modules use MCX, Surface mount series, panel and cable connector, Finally, The semi – rigid cable assembly and soft cable assembly are used to complete the signal connection of all parts of the equipment.

    2.Transmission equipment and exchange equipment

    In today’s large capacity transmission equipment market,Voice transmission, data transmission, image transmission,It includes connectors, cable assemblies, various consumables, from local end to user, from basic equipment to set-top boxes, From 50Ω to 75Ω, All use small rf coaxial connectors, Like BNC, TNC connectors series, to subminiature MCX. SMA. SMB. SMC and the miniaturized versions of them SSMA, SSMB, SSMC, The mini like MMCX, It provides extremely high installation density, In the standard interface among DIN IEC, High-speed signal transmission requires high – performance GHz band BNC connectors.

    3. Backplane, network card and set-top box

    The market of coaxial connector has developed rapidly in recent years, BNC connectors account for a large number of applications in coaxial exit ethernet that provide high-speed access. BNC series connectors are widely used in the lower layer of communication link,BNC series has been widely used because of its unique lock mode of bayonet and its feature of convenient plug.
