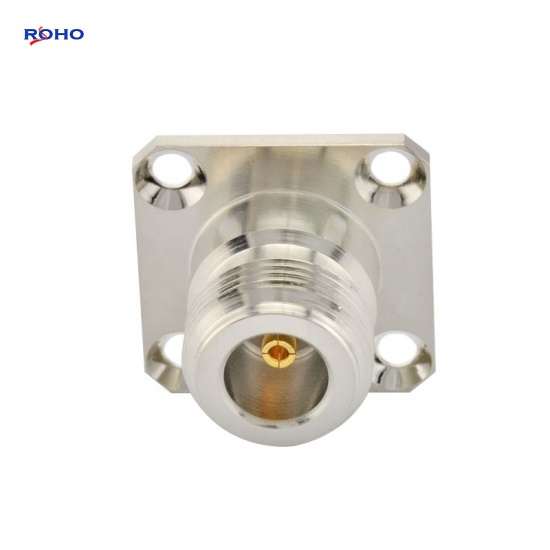

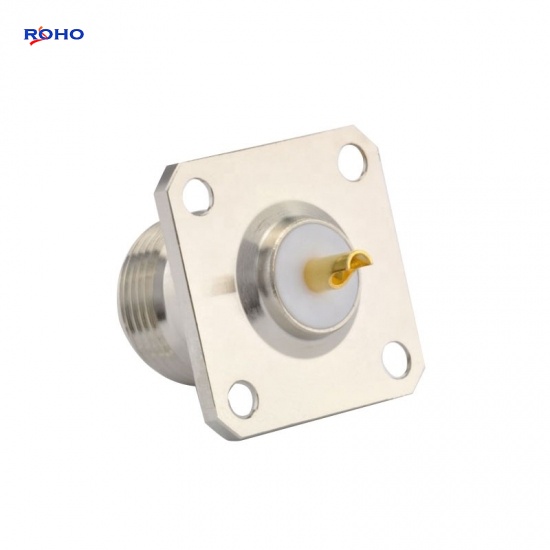

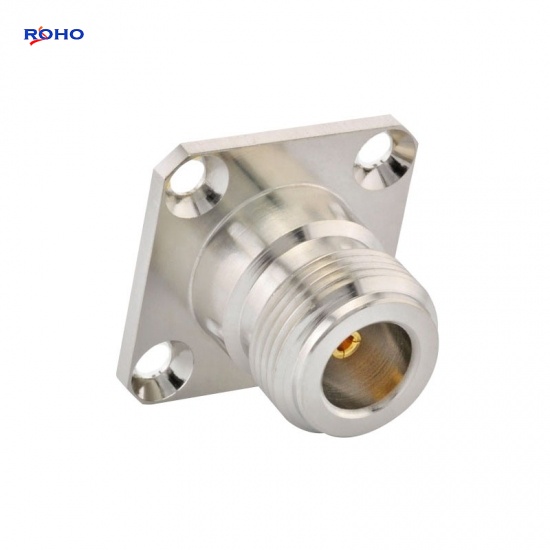

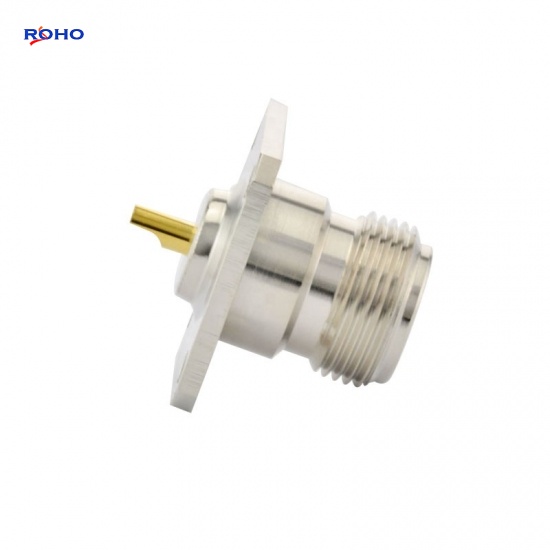

N Female Jack RF Coaxial Connector 4 Hole Flange with Solder Cup
The N type connector are designed to satisfy the need for a durable, weatherproof, medium-size RF connector, frequency max up to 11GHz; this type N female terminal connector with 4 hole flange has an interface type of solder cup and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with nickel plating.
Specifications
ELECTRICAL DATA | |
Impedance | 50Ω |
Max Frequency Range | 11GHz |
Withstand Voltage | ≥2500V,50Hz |
Working Voltage | ≤1000V,50Hz (sea level) |
Insulation Resistance | ≥5000mΩ |
Contact Resistance | Inner conductor: ≤1.0mΩ |
Outer conductor: ≤0.2mΩ | |
RF leakage(2-3GHz) | Flexible: ≥90dB |
3rd order intermodulation | ≥140dBc |
MECHANICAL DATA | |
Coupling nut torque | Recommended: 68Ncm--123Ncm / 6.0 in. lbs--10 in.lbs |
Proof torque: 170 Ncm / 15.0 in.lbs | |
Proof torque | 170Ncm / 15.0 in.lbs |
Durability (matings) | ≥500 |
ENVIRONMENTAL DATA | |
Temperature range | -65°C to +165°C |
MATERIAL DATA | |
Bodies | Brass--Nickel plating |
Pin contacts | Brass--Au/Ag plating |
Socket contacts | Copper beryllium alloy--Au plating |
Crimp ferrules | Brass--Ternary alloy plating |
Insulator | PTFE |
Gaskets | Silicone rubber |
Applications
- WLAN
- Base Stations
- Instrumentation
- Satellite Systems
- Antennas
- Radar Systems
- Broadcast
- Surge Protection
