N Type Female Waterproof Bulkhead Mount Connector Crimp for RG55 RG142 RG223 RG400 Cable RF Coaxial Connector

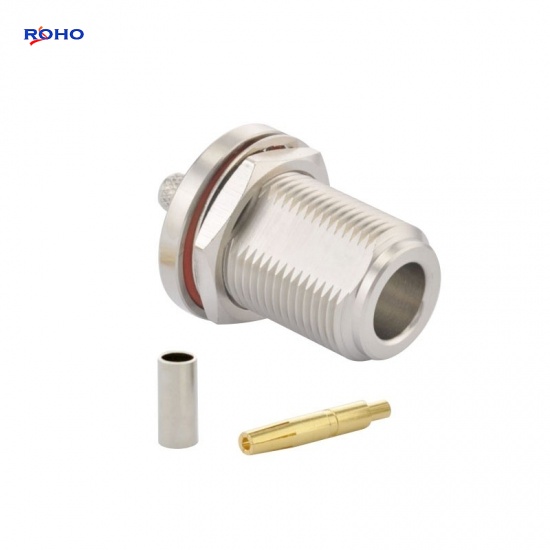

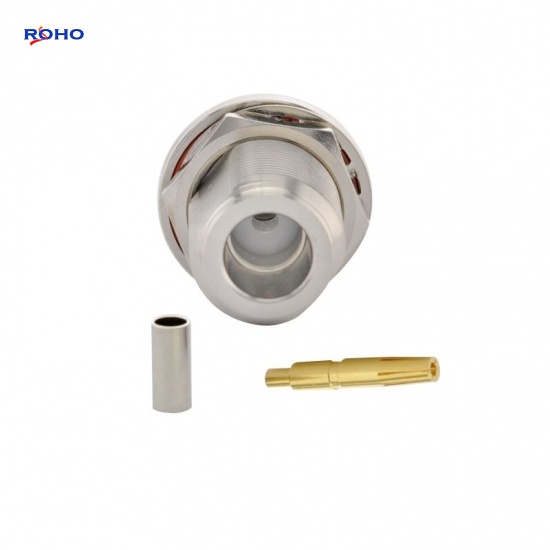

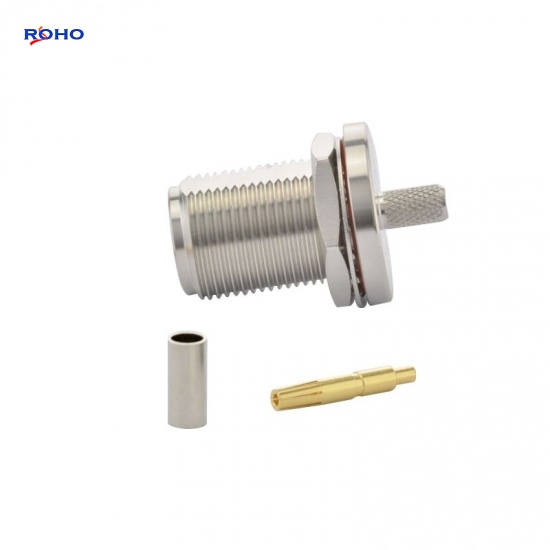

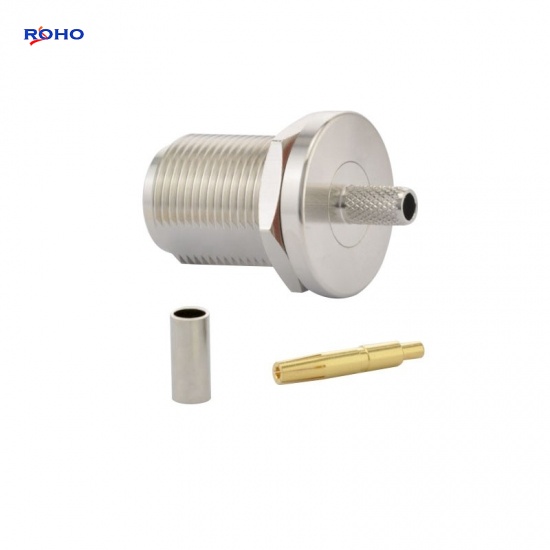

The N type connector are designed to satisfy the need for a durable, weatherproof, medium-size RF connector, frequency max up to 6GHz; this Type N female Coaxial connector with bulkhead has an interface type of RG55, RG142, RG223, RG400 and a 50ohm impedance, attachment method uses Crimp/Crimp, its Straight body is brass with nickel plating.
Specifications
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Max Frequency Range | 6GHz |
| Withstand Voltage | ≥2500V,50Hz |
| Working Voltage | ≤1000V,50Hz (sea level) |
| Insulation Resistance | ≥5000mΩ |
| Contact Resistance | Inner conductor: ≤1.0mΩ |
| Outer conductor: ≤0.2mΩ | |
| RF leakage(2-3GHz) | Flexible: ≥90dB |
| 3rd order intermodulation | ≥140dBc |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended: 68Ncm--123Ncm / 6.0 in. lbs--10 in.lbs |
| Proof torque: 170 Ncm / 15.0 in.lbs | |
| Proof torque | 170Ncm / 15.0 in.lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--Nickel plating |
| Pin contacts | Brass--Au/Ag plating |
| Socket contacts | Copper beryllium alloy--Au plating |
| Crimp ferrules | Brass--Ternary alloy plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
Applications
- WLAN
- Base Stations
- Instrumentation
- Satellite Systems
- Antennas
- Radar Systems
- Broadcast
- Surge Protection
