N Type Connectors

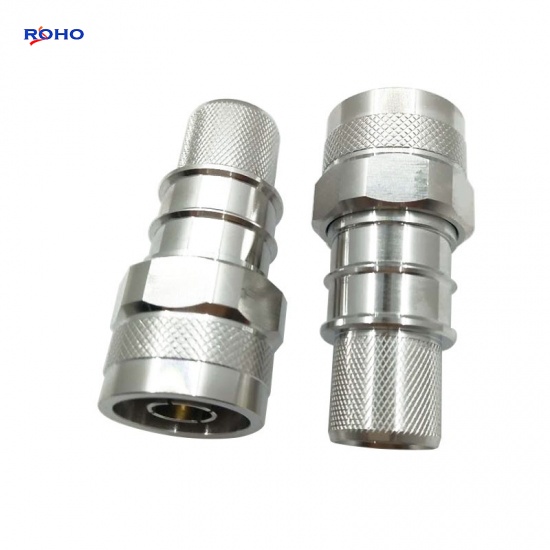

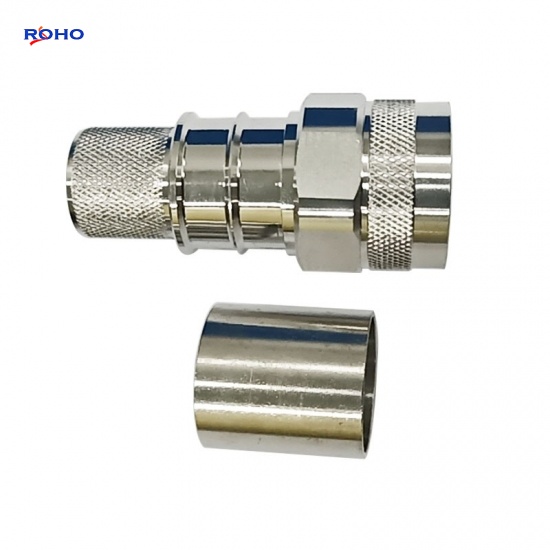

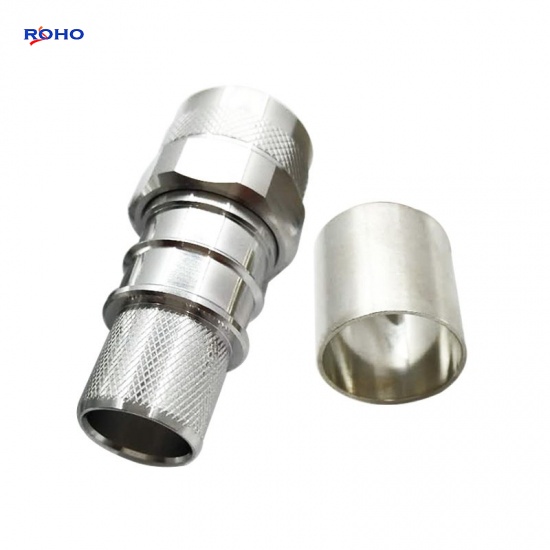

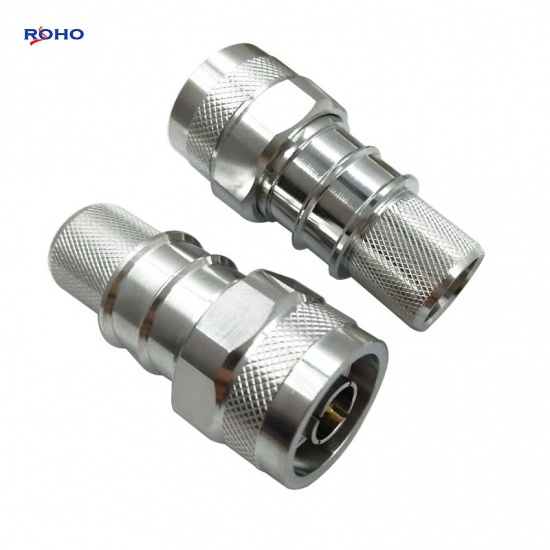

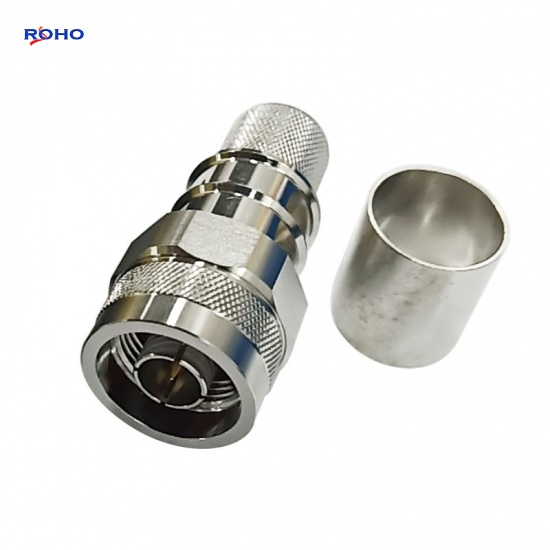

N Type Male Connector Crimp Non-Solder Contact Attachment for LMR600 Coaxial Cable

N type features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be press in, bulkhead, 2 hole panel, 4 hole panel or mount-less;
  • Attachment methods include clamp/solder, clamp/solder (captive contact), crimp/solder, field replaceable, solder or solder/solder;
  • Body is brass or stainless steel.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Type Male Connector Crimp Non-Solder Contact Attachment for LMR600 Coaxial Cable



The N type connector are designed to satisfy the need for a durable, weatherproof, medium-size RF connector, frequency max up to 11GHz; this N male coaxial connector has an interface type of LMR600 and a 50 Ohm impedance, it uses shield/contact crimp/non-solder contact as an attachment method, it provides a minimum frequency of DC and a maximum frequency of 6 GHz., its straight body is brass with tri-metal plating.



Specifications

ELECTRICAL DATA
Impedance                                                                  50Ω
Max Frequency Range  6GHz
Withstand Voltage  2500V,50Hz
Working Voltage 1000V,50Hz (sea level)
Insulation Resistance 5000mΩ
Contact Resistance Inner conductor: 1.0mΩ
Outer conductor: 0.2mΩ
RF leakage(2-3GHz) Flexible: 90dB
3rd order  intermodulation 140dBc
MECHANICAL DATA
Coupling nut torque Recommended: 68Ncm--123Ncm / 6.0 in. lbs--10 in.lbs
Proof torque: 170 Ncm / 15.0 in.lbs
Proof torque 170Ncm / 15.0 in.lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Tri-metal plating
Pin contacts Brass--Au/Ag plating
Socket contacts Copper beryllium alloy--Au plating
Crimp ferrules Brass--Ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • WLAN
  • Base Stations
  • Instrumentation
  • Satellite Systems
  • Antennas
  • Radar Systems
  • Broadcast
  • Surge Protection
