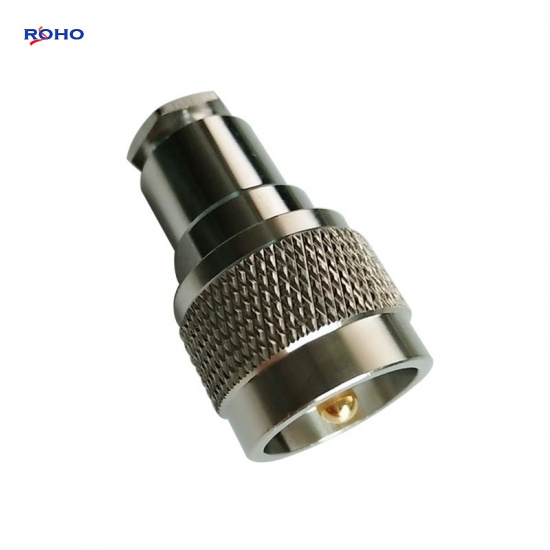

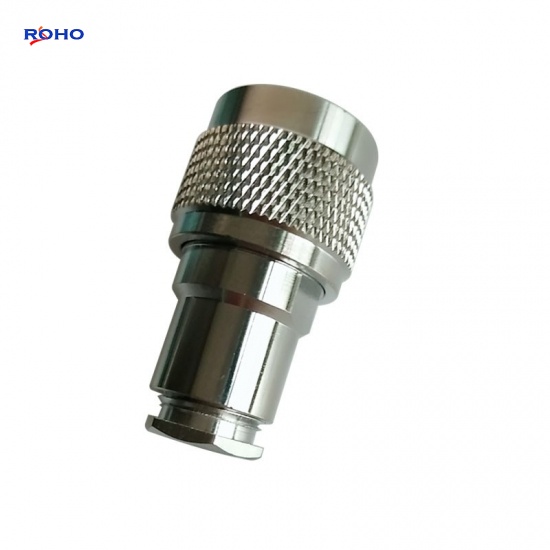

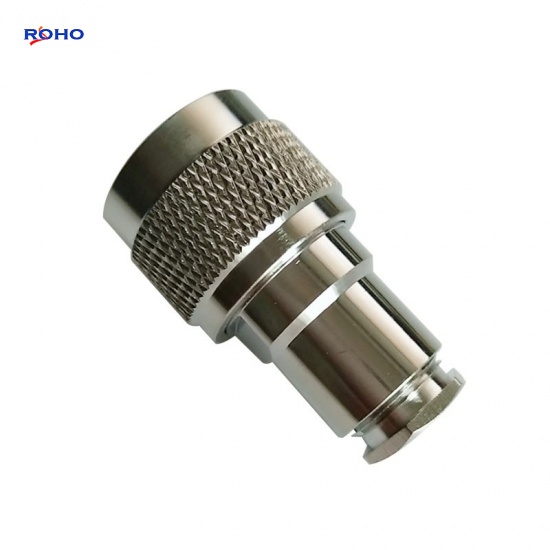

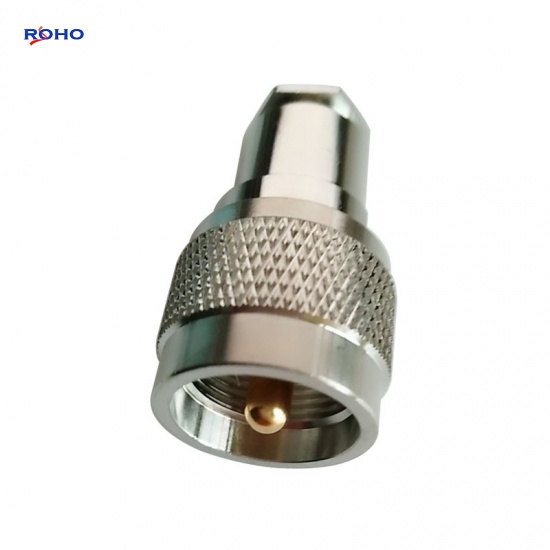

PL259 UHF Male Straight Connector Clamp Solder Attachment for ANT240 CNT240 LMR240 WBC240 Cable

UHF Connector Features

  • Can terminate to coax or terminal;
  • Can be male, female or sexless gender with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mountless options;
  • Attachment methods include clamp/solder, crimp/solder, field replaceable or solder;
  • Body is brass or zinc.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

PL259 UHF Male Straight Connector Clamp Solder Attachment for ANT240 CNT240 LMR240 WBC240 Cable



The UHF connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency; this UHF male connector has an interface type of ANT240 CNT240 LMR240 WBC240 cable and a 50ohm impedance, attachment method uses shield/contact clamp/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                                   Not defined
Frequency range DC-300MHz
Dielectric withstanding voltage (at sea level) 1500Vrms,50Hz between any two contact
Insulation resistance ≥100000MΩ
Contact resistance Inner conductor: ≤2mΩ
Outer conductor: ≤2mΩ
MECHANICAL DATA
Coupling nut torque 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force ≥450N / 101.2 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -50°C  to +125°C
MATERIAL DATA
Bodies Brass--Nickel plating
Pin contacts Brass--Au plating
Socket contacts Copper-beryllium alloy--Au plating
Crimp ferrules Copper--Ternary alloy plating
Insulator ETFE
Gaskets Silicone rubber



Applications

  • Antennas
  • Military
  • Distributed Antenna Systems (DAS)
  • Public Address Systems
  • Low-Frequency Applications
