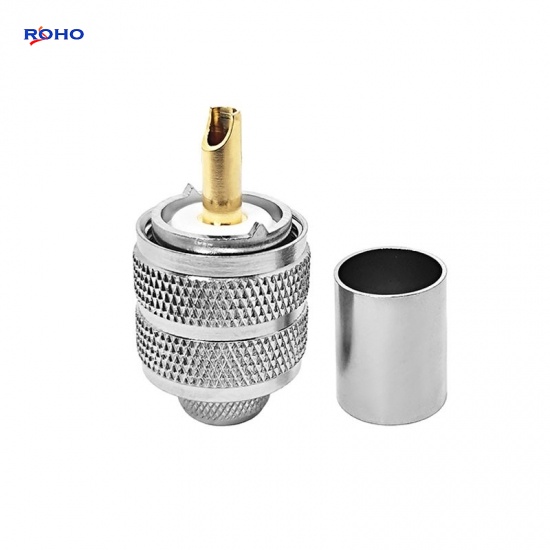

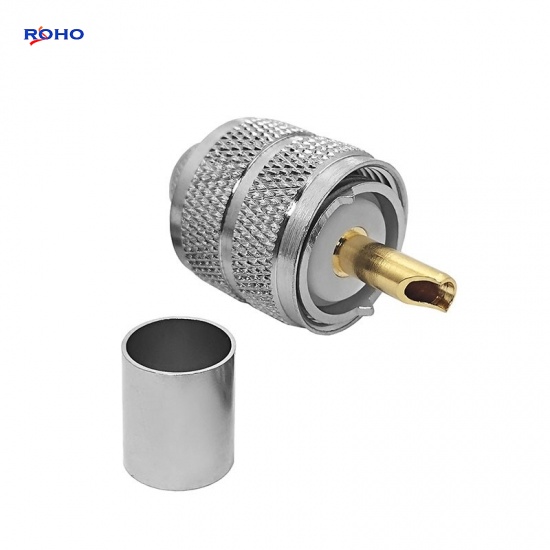

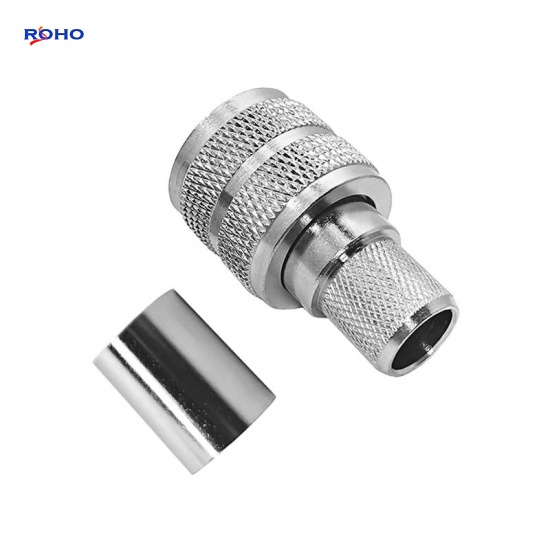

PL259 UHF Male Straight Connector Crimp Solder Attachment for RG213 RG215 RG8 Cable
The UHF connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency; this UHF male connector has an interface type of RG213 RG215 RG8 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with nickel plating.
Specifications
ELECTRICAL DATA | |
Impedance | Not defined |
Frequency range | DC-300MHz |
Dielectric withstanding voltage (at sea level) | 1500Vrms,50Hz between any two contact |
Insulation resistance | ≥100000MΩ |
Contact resistance | Inner conductor: ≤2mΩ |
Outer conductor: ≤2mΩ | |
MECHANICAL DATA | |
Coupling nut torque | 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs |
Coupling nut retention force | ≥450N / 101.2 lbs |
Durability (matings) | ≥500 |
ENVIRONMENTAL DATA | |
Temperature range | -50°C to +125°C |
MATERIAL DATA | |
Bodies | Brass--Nickel plating |
Pin contacts | Brass--Au plating |
Socket contacts | Copper-beryllium alloy--Au plating |
Crimp ferrules | Copper--Ternary alloy plating |
Insulator | ETFE |
Gaskets | Silicone rubber |
Applications
- Antennas
- Military
- Distributed Antenna Systems (DAS)
- Public Address Systems
- Low-Frequency Applications
