UHF Connectors

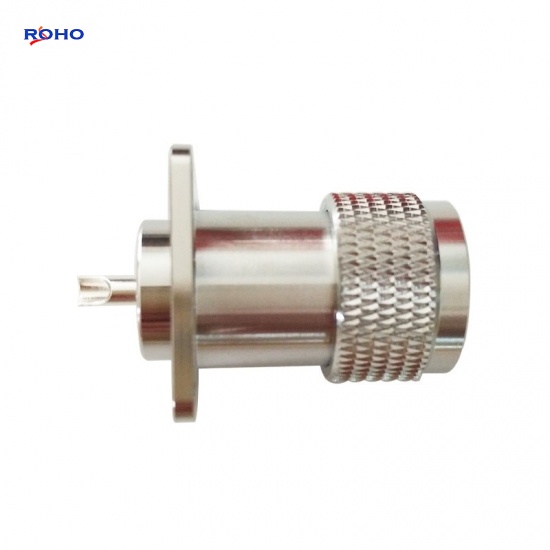

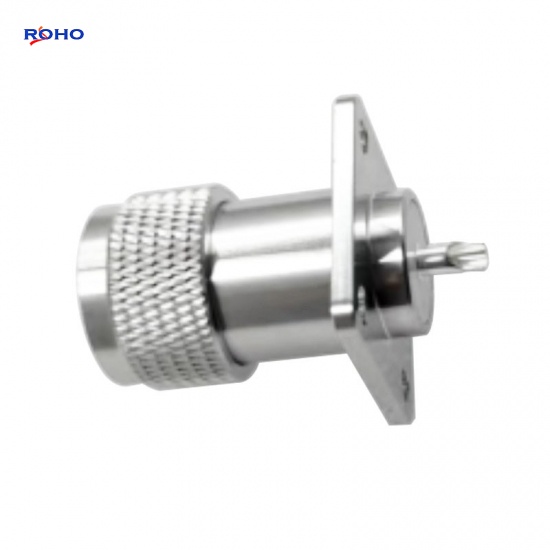

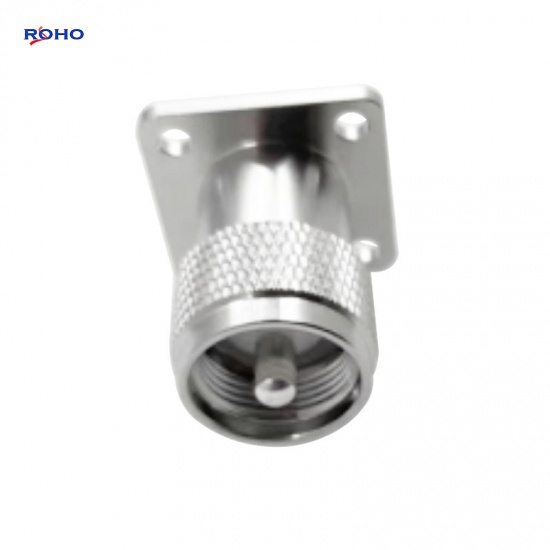

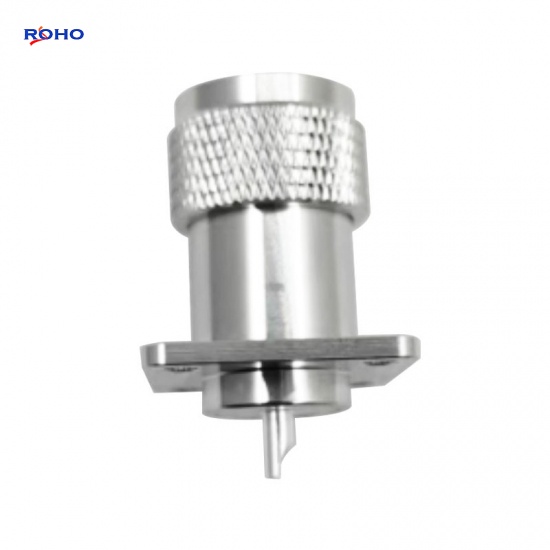

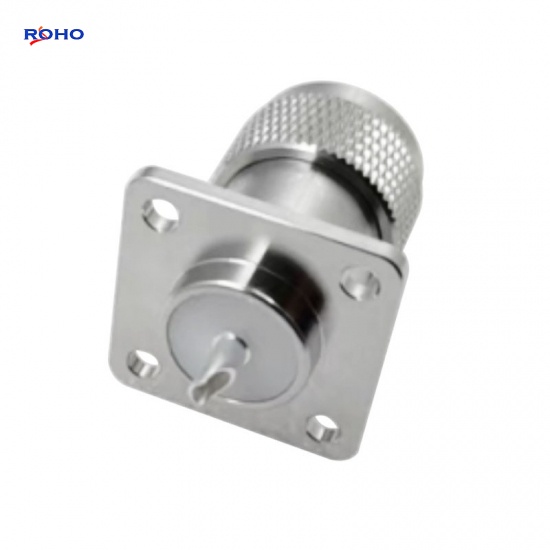

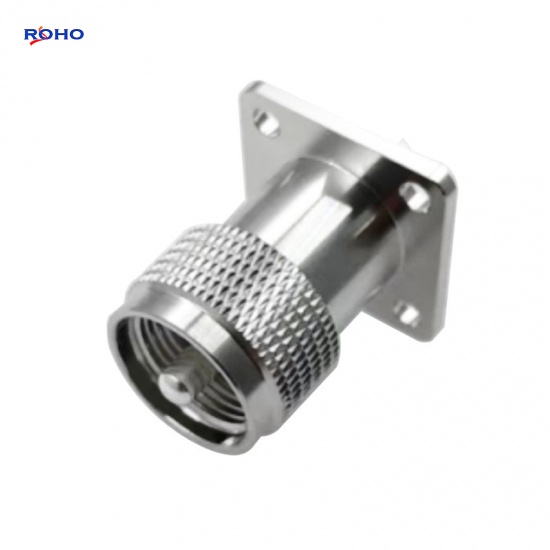

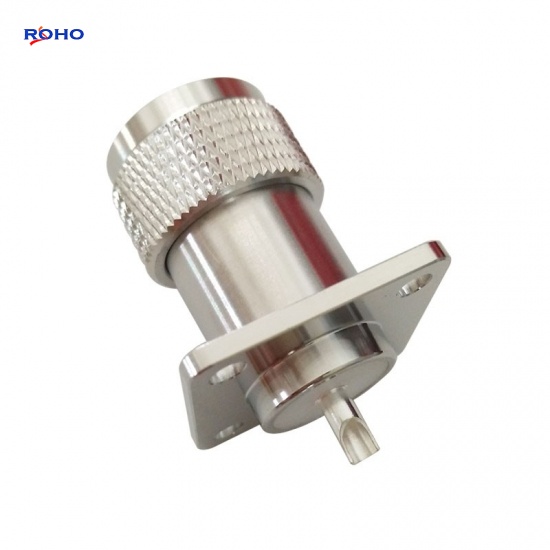

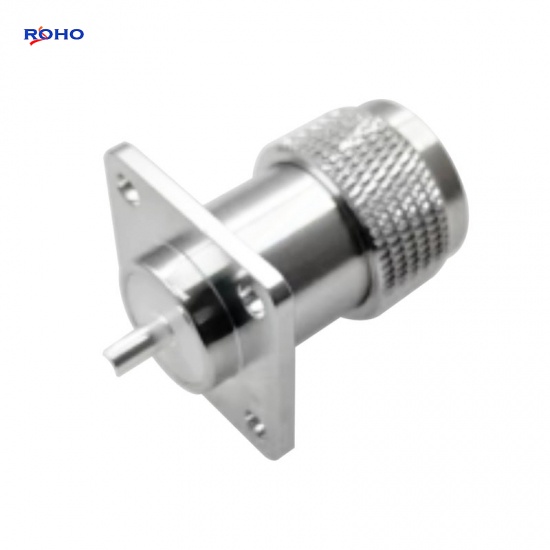

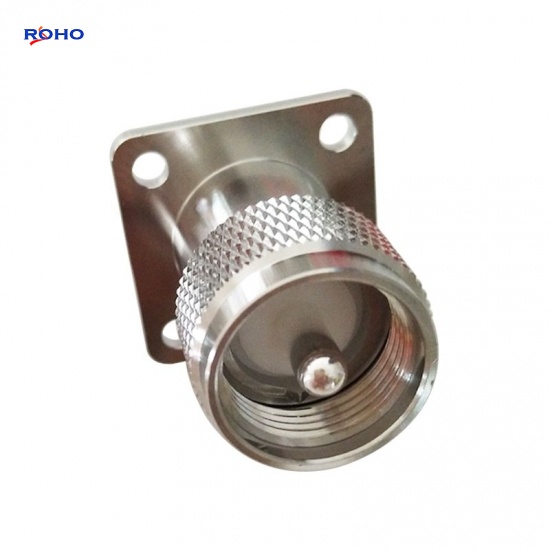

PL259 UHF Male Straight Connector Solder Attachment 4 Hole Flange Mount with Spill Insulator Solder Cup

UHF Connector Features

  • Can terminate to coax or terminal;
  • Can be male, female or sexless gender with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mountless options;
  • Attachment methods include clamp/solder, crimp/solder, field replaceable or solder;
  • Body is brass or zinc.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

PL259 UHF Male Straight Connector Solder Attachment 4 Hole Flange Mount with Spill Insulator Solder Cup



The UHF connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency; this UHF male connector with 4 hole flange has an interface type of solder cup and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                                   Not defined
Frequency range DC-300MHz
Dielectric withstanding voltage (at sea level) 1500Vrms,50Hz between any two contact
Insulation resistance ≥100000MΩ
Contact resistance Inner conductor: ≤2mΩ
Outer conductor: ≤2mΩ
MECHANICAL DATA
Coupling nut torque 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force ≥450N / 101.2 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -50°C  to +125°C
MATERIAL DATA
Bodies Brass--Nickel plating
Pin contacts Brass--Au plating
Socket contacts Copper-beryllium alloy--Au plating
Crimp ferrules Copper--Ternary alloy plating
Insulator ETFE
Gaskets Silicone rubber



Applications

  • Antennas
  • Military
  • Distributed Antenna Systems (DAS)
  • Public Address Systems
  • Low-Frequency Applications
