SMA Attenuators

10W SMA Male to Female RF coaxial fixed attenuator DC-3GHz/6GHz 1-40dB avaliable

SMA Attenuator Features:

  • SMA connector input, out connector can be N or SMA;
  • Maximum frequency of 26GHz;
  • A female gender in and a female or male gender out;
  • Attenuation values range from 1dB to 60dB.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

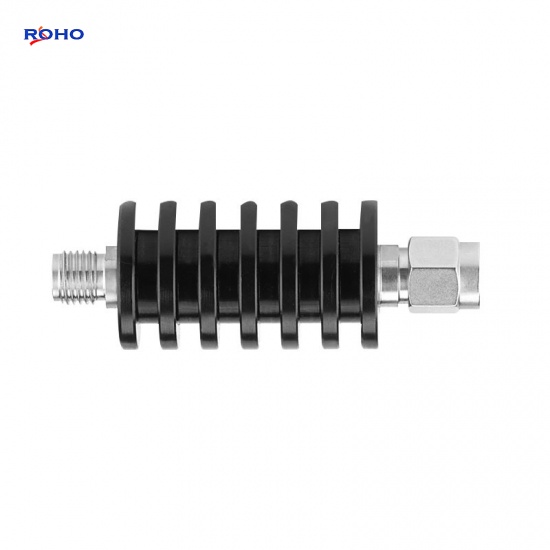

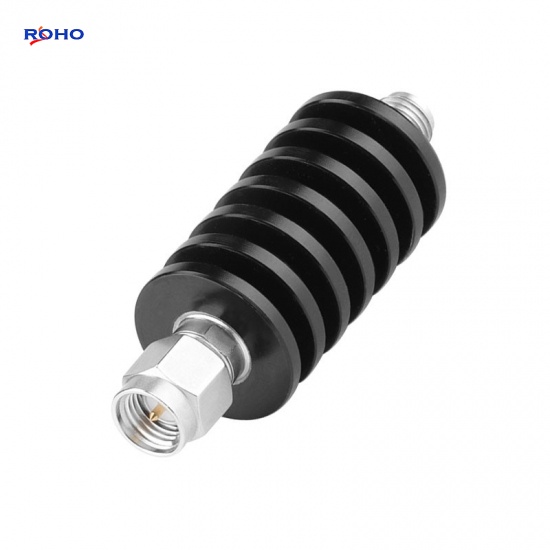

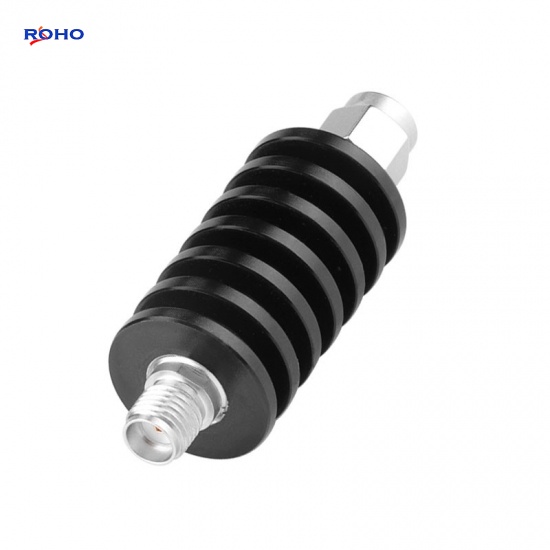

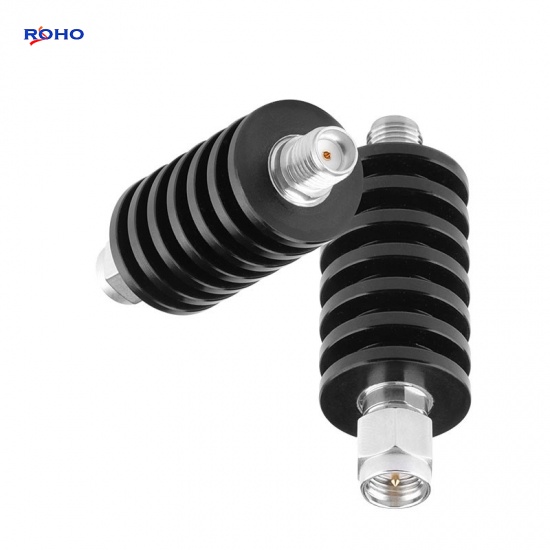

10W SMA Male to Female RF coaxial fixed attenuator DC-3GHz/6GHz 1-40dB avaliable



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's SMA Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 10W SMA to SMA Attenuator has a SMA male gender on side 1 and a SMA female connector on side 2. attenuation Max value is 40dB, frequency Max is 18GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/6GHz
Connector SMA Male to Female
VSWR ≤1.2
Power 10W
Impedance 50Ω
Attenuation value 1-40dB
Attenuation 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless steel, Passivated
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Mobile Communication Network Optimization
  • In-door distribution system
  • Cluster communication
  • Satellite communication
  • Shortwave communication
  • Aerospace equipment systems
