2.92mm/3.5mm Adaptors

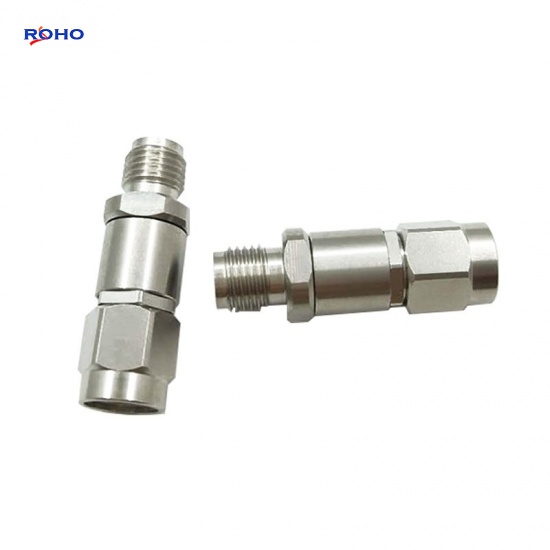

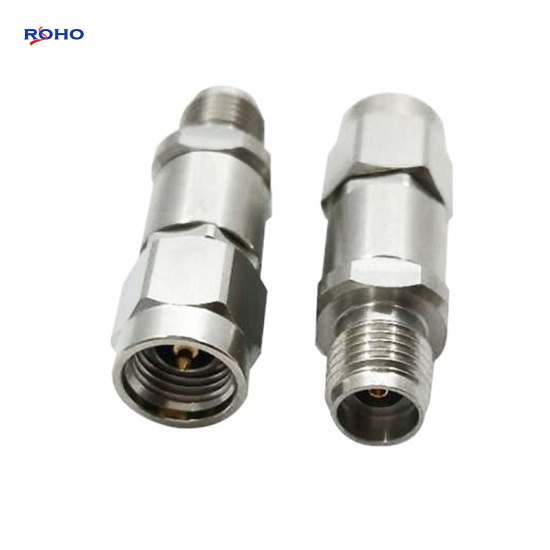

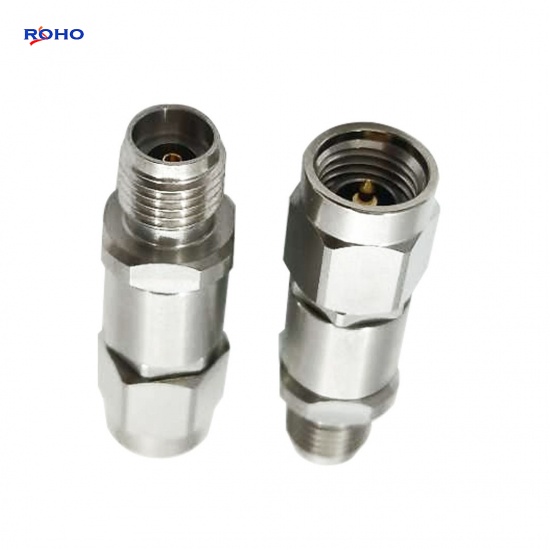

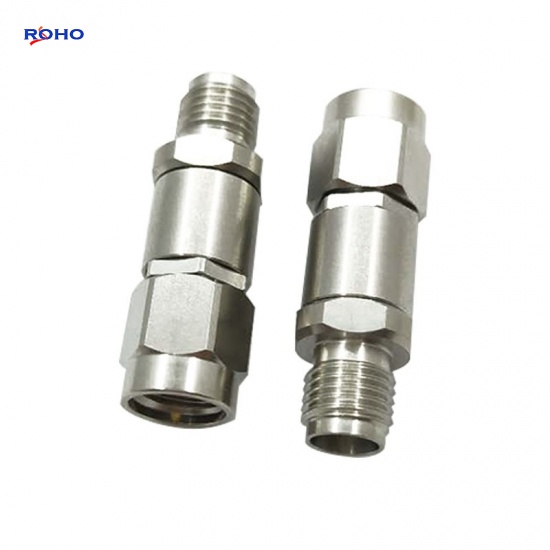

2.92mm Female to 3.5mm Male Stainless Steel RF Coaxial Connector Adapter for 5G Wireless Communication

Features:

  • Includes bulkhead, 4 hole panel or mountless configurations;
  • Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, SMP or N connectors;
  • Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations;
  • OEM & ODM available for special design with competitive Factory price;
  • 40GHz 3.5mm adapter maximum frequency is provided;
  • Can be Customized for unique material or performance requirement.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

3.5mm Male to 2.92mm Female Stainless Steel Adapter Coax Connector 5G Wireless Communication



The 3.5mm RF Coaxial adapters(also known as 3.5mm, K connector, K Type, SMK adapter) have 3.5mm female, male or sexless (jack, plug or genderless) adapters (sometimes called a 3.5mm cable coupler or gender changer when same genders) are available. These female, male or sexless (jack, plug or genderless) 3.5mm adapter coaxial interconnects are between series or in-series. Our high quality 3.5mm adapter products include 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N, SMA, SMP or SSMA side 2 interfaces.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series
3.5mm
Adapter Side 1 Style
Male
Adapter Side 2 Series
2.92mm
Adapter Side 2 Style
Female
Frequency (Max GHz)
40
Impedance (Ohms)
50
Low PIM
NO
Orientation
Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Connector Body Stainless steel 303
Body Finish Passivated
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator PTFE



Applications

  • 5G Wireless Communication
  • Test sets
  • High-frequncy products
  • Instrumentation cables
