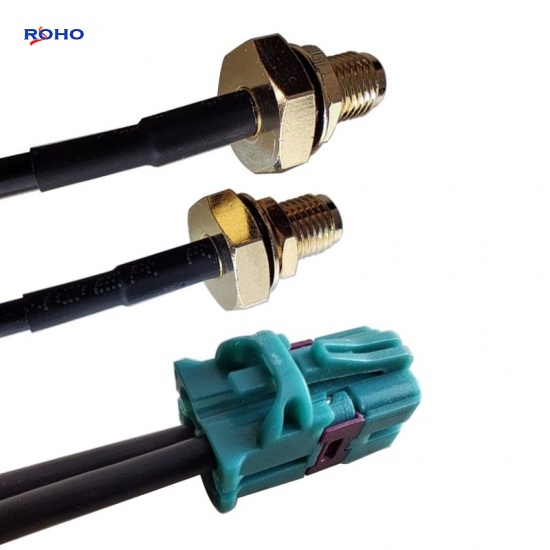

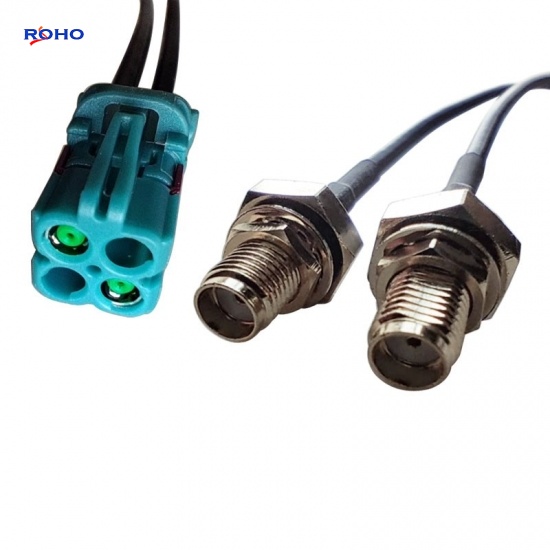

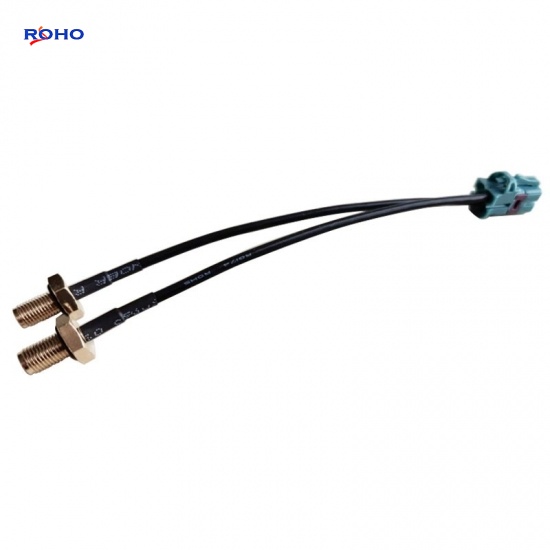

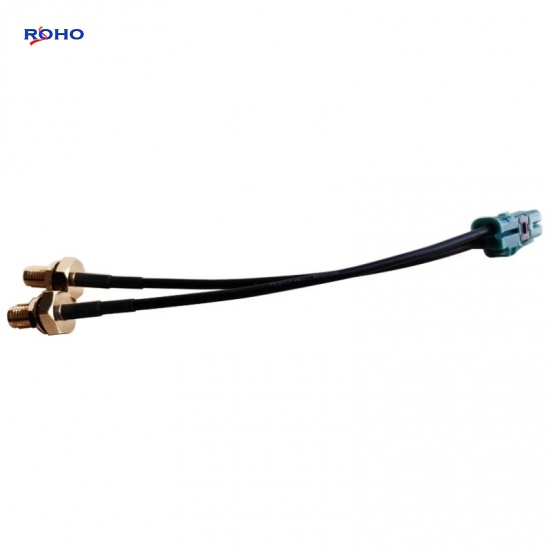

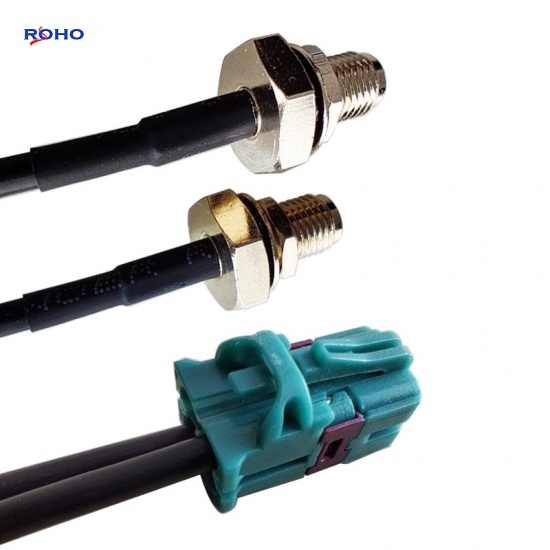

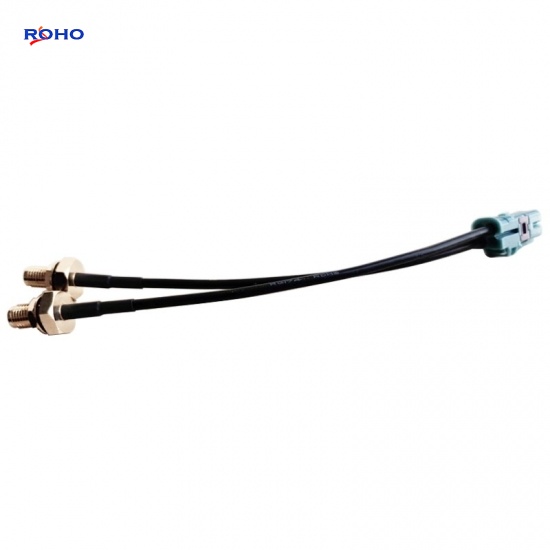

2 Pin Mini Fakra4-1 Jack Female to SMA Female Connector Cable Assembly with RG174 Cable
The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to SMA cable assembly is right angle or straight connectors which is jack to female, jack to male, plug to female or plug to male gender. This Fakra jack to 2 pin mini Fakra Jack cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm SMA for connector 2, Cable is 50ohm flexible cable type RG174 .
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | 2 Pin Mini Fakra |
| Connector 1 Style | Jack |
| Cable Type | RG174 |
| Connector 2 Series | SMA |
| Connector 2 Style | Female Str |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material | PA / PBT & PA / LCP |
| Body Finish |
Black / White / Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
|
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Advanced Driving Assistant System (ADAS)
- Telematics, multimedia
- Infotainment, GPS
- Navigation and camera
- Body control, safety, security and comfort
