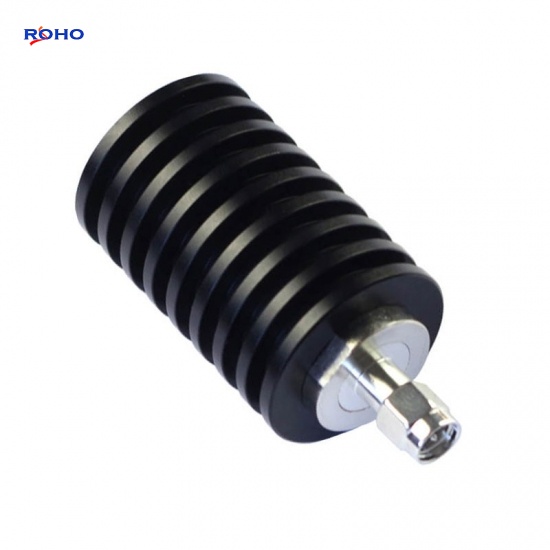

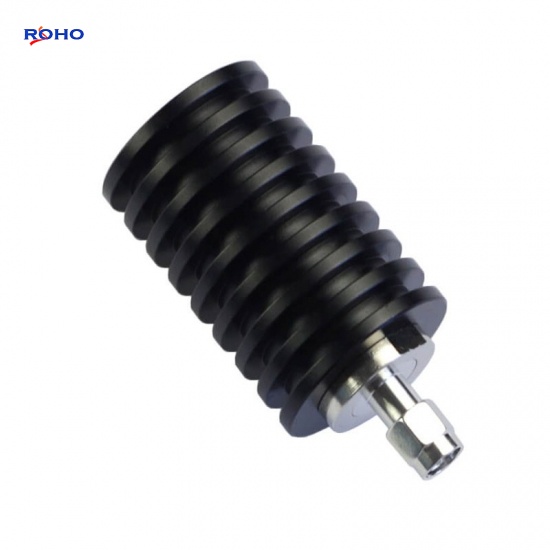

25W SMA Male DC-3GHz RF Coaxial Load 50ohm Terminal Dummy Load

Features:

  • Wide Frequency Band;
  • 2G/3G/4G/LTE Coverage;
  • Low VSWR;
  • Widely used for In-building Solutions;
  • Low  Insertion Loss.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

25W SMA Male DC-3GHz RF Coaxial Load 50ohm Terminal Dummy Load



The 25W SMA dummy load (also known as 25W SMA termination or 25W SMA RF load ) has a SMA connector that is male. This 25W SMA male load / termination is rated for a maximum frequency of 3GHz. ROHO's SMA male termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 25W SMA male load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector SMA Male
VSWR ≤1.2
Power 25W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Categories
Related Products

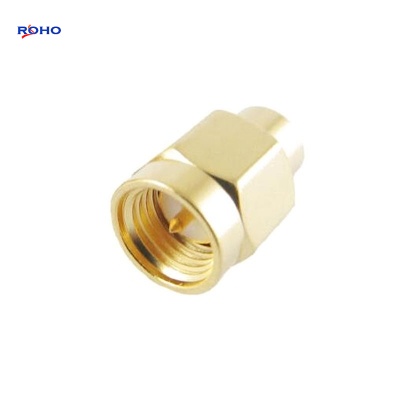

2W SMA Male dummy load
2W SMA Male Connector Termination Dummy Load 50ohm DC-3GHz/6GHz Terminator
Features: Wide Frequency Band; 2G/3G/4G/LTE Coverage; Low VSWR; Widely used for In-building Solutions; Low  Insertion Loss.
2W SMA Male Dummy Load
2W DC-6GHz Up to 26.5GHz SMA Male RF Load Terminator 50ohm Dummy Load
Features: Wide Frequency Band; 2G/3G/4G/LTE Coverage; Low VSWR; Widely used for In-building Solutions; Low  Insertion Loss.
5W SMA Male dummy load
5W SMA Male Connector Terminator Load DC-3GHz RF Dummy Load 50ohm Calibration
Features: Wide Frequency Band; 2G/3G/4G/LTE Coverage; Low VSWR; Widely used for In-building Solutions; Low  Insertion Loss.

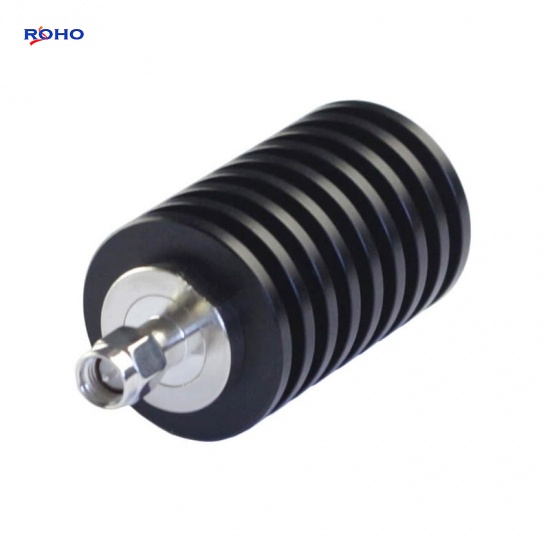

10W SMA Male dummy load
10W SMA Male DC-3GHz Connector RF Termination Load 50ohm Dummy Load
Features: Wide Frequency Band; 2G/3G/4G/LTE Coverage; Low VSWR; Widely used for In-building Solutions; Low  Insertion Loss.
100W SMA Male dummy load
High Power 100W RF Coaxial Load SMA Male DC-3GHz Terminal 50ohm Dummy Load
Features: Wide Frequency Band; 2G/3G/4G/LTE Coverage; Low VSWR; Widely used for In-building Solutions; Low  Insertion Loss.
50W SMA Male dummy load
50W SMA Male RF Dummy Load 50ohm DC-3GHz Termination Load for Laboratory Antenna Testing
Features: Wide Frequency Band; 2G/3G/4G/LTE Coverage; Low VSWR; Widely used for In-building Solutions; Low  Insertion Loss.

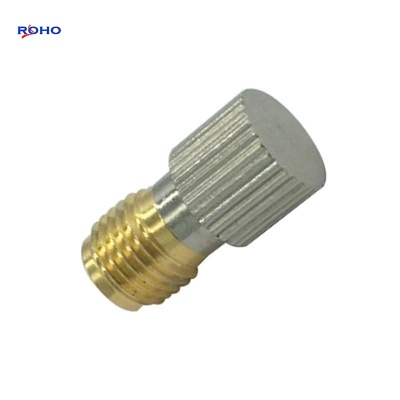

2W SMA Female Dummy Load
