4.3-10 Terminators

2W MINI DIN 4.3-10 Male Termination Dummy Load 50ohm DC-3GHz/4GHz RF Terminator

Features:

  • Wide Frequency Band, can cover 4G/5G system;
  • Low VSWR;
  • Low PIM3;
  • N,7-16 DIN, 4.3-10 connectors are available;
  • IP65/IP67 Waterproof Standard.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

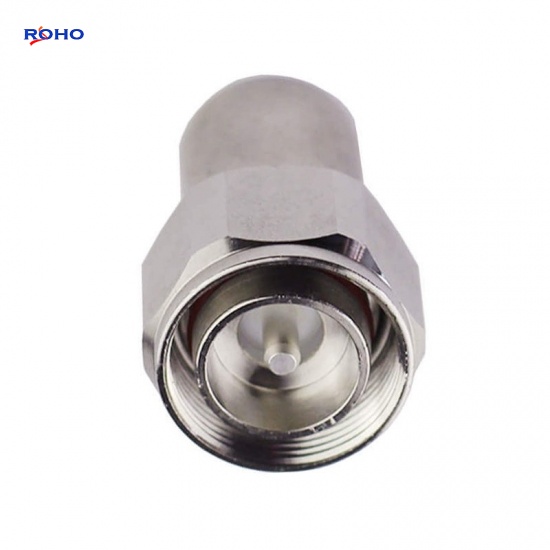

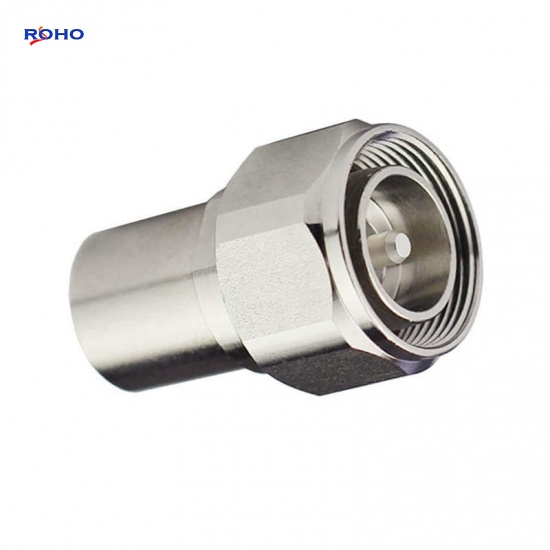

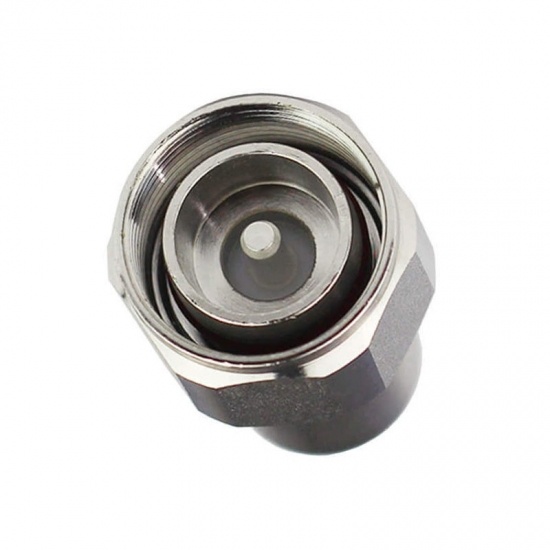

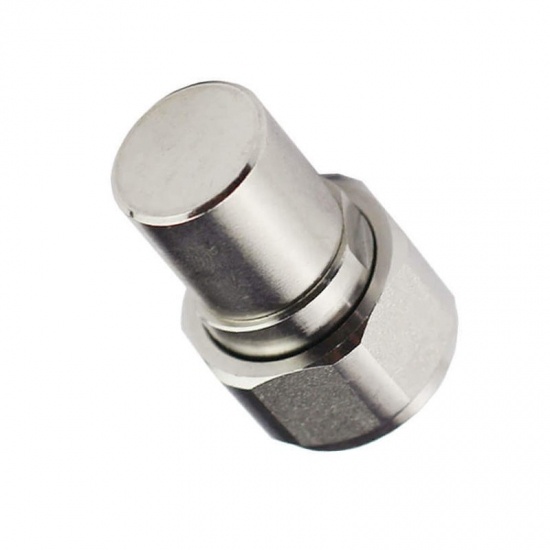

2W MINI DIN 4.3-10 Male Termination Dummy Load 50ohm DC-3GHz/4GHz RF Terminator



The 2W 4.3-10 dummy load (also known as 2W 4.3-10 termination or 2W 4.3-10 RF load) has a 4.3-10 connector that is male. This 2W 4.3-10 male load / termination is rated for a maximum frequency of 4GHz. ROHO's 4.3-10 male termination load is a rf load termination with a 50ohm impedance; 2W 4.3-10 male load termination is one of RF, microwave and millimeter wave components,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector 4.3-10 Male
VSWR ≤1.2
Power 2W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Stainless Steel,Passivate or Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
