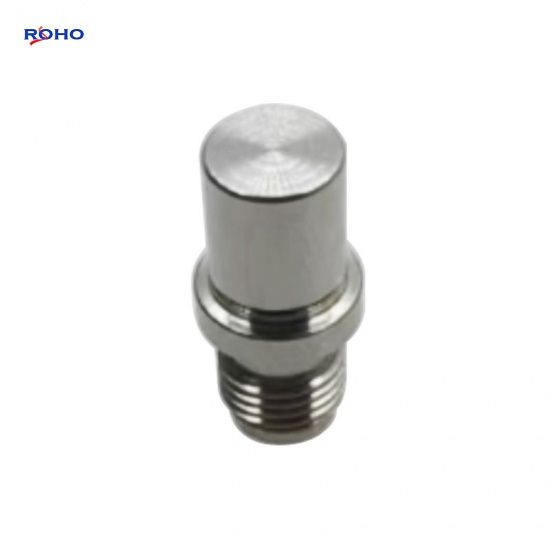

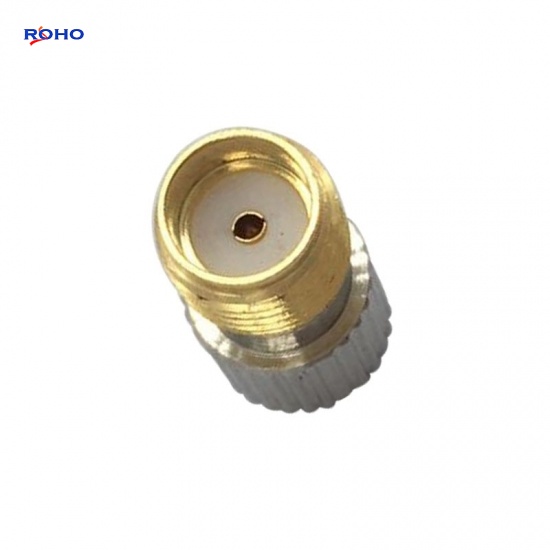

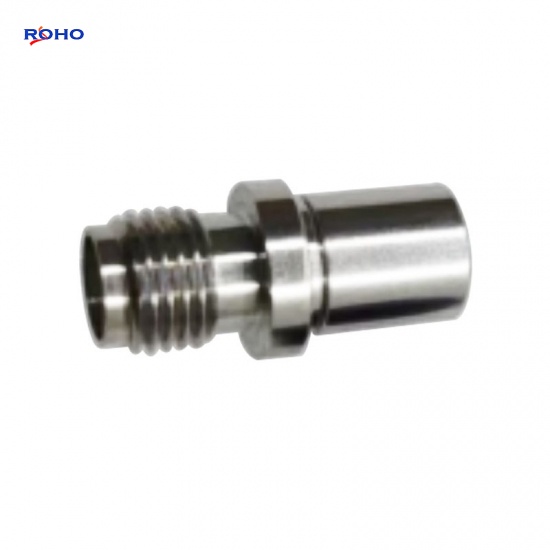

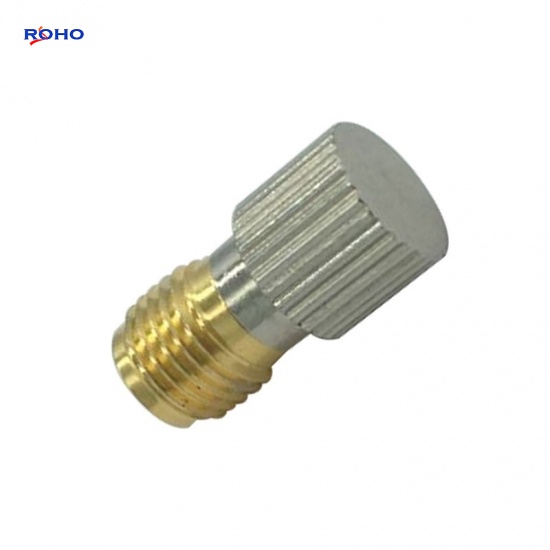

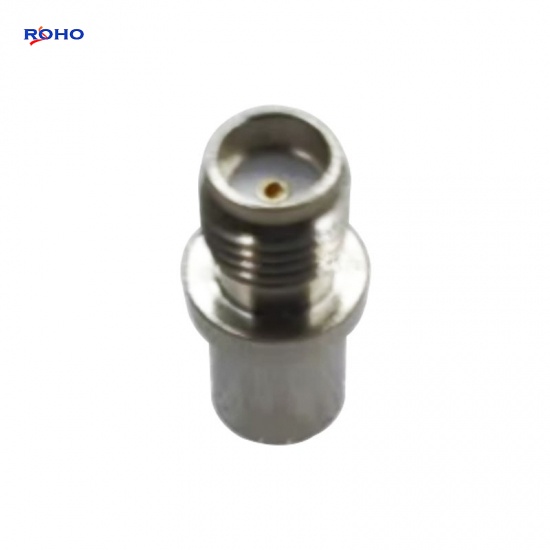

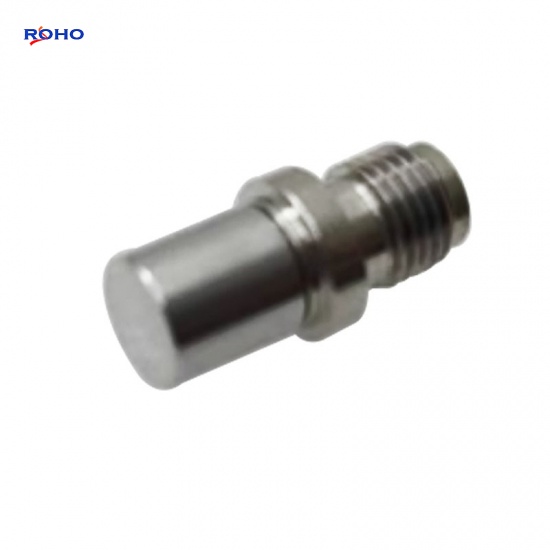

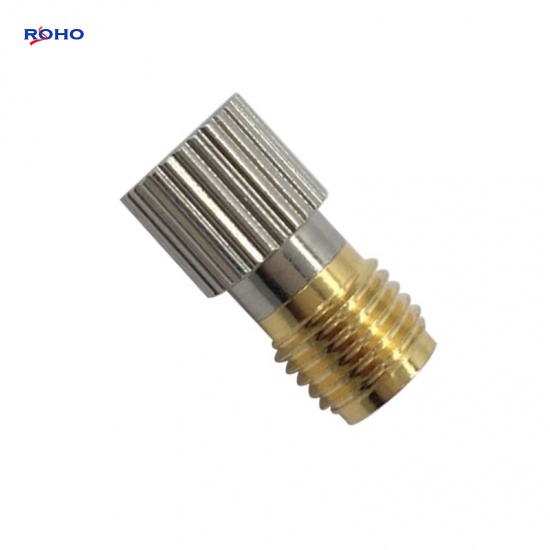

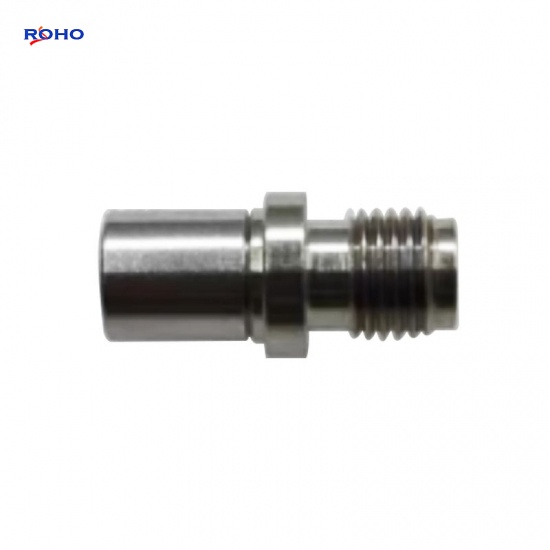

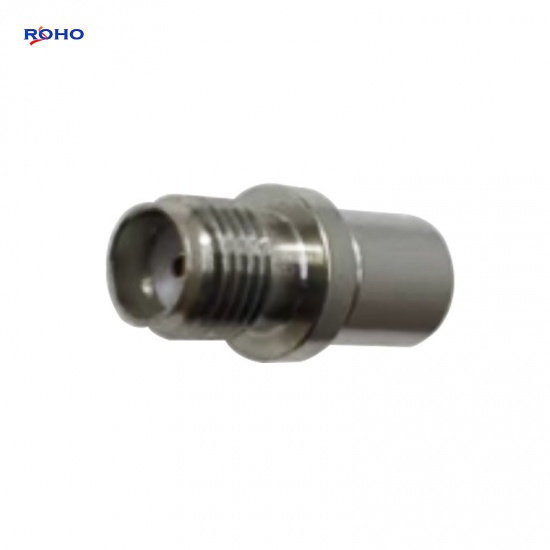

2W SMA Female DC-6GHz Up to 26.5GHz Termination 50ohm RF Dummy Load
The 2W SMA dummy load (also known as 2W SMA termination or 2W SMA RF load ) has a SMA connector that is female. This 2W SMA female load / termination is rated for a maximum frequency of 26.5GHz. ROHO's SMA female termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 2W SMA female load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
ELECTRICAL DATA | |
Frequency | DC~6GHz,up to 26.5GHz |
Connector | SMA Female |
VSWR | ≤1.2 |
Power | 2W |
Impedance | 50Ω |
Temperature Range | -55℃~+125℃ |
MATERIAL DATA | |
Connector body | Stainless Steel,Passivate or Brass,Plating Ni |
Insulator | PTFE |
Inner Conductor | Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
