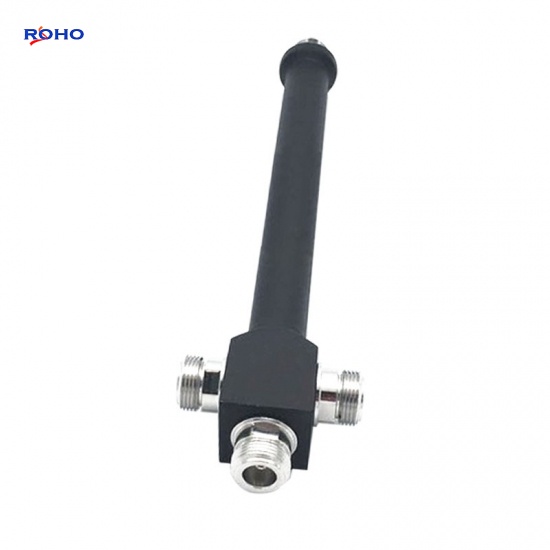

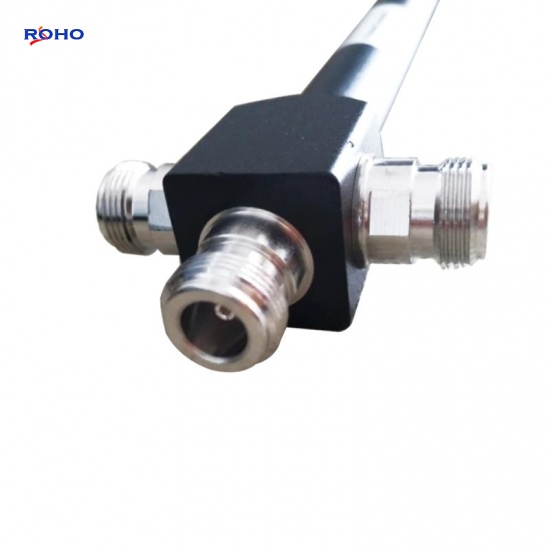

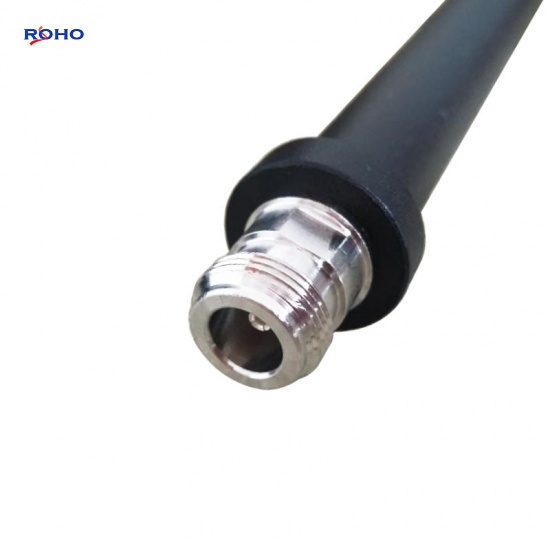

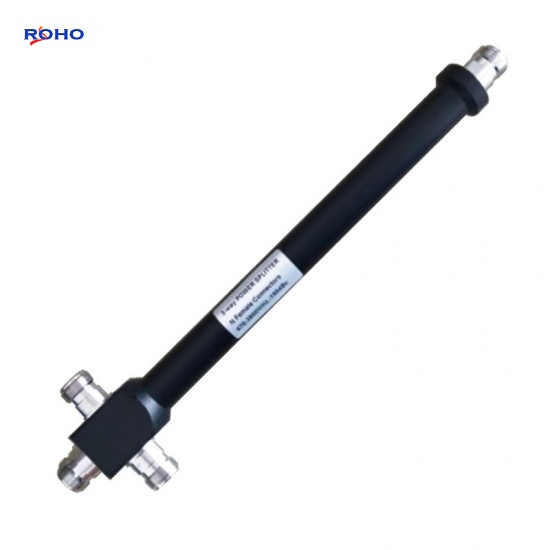

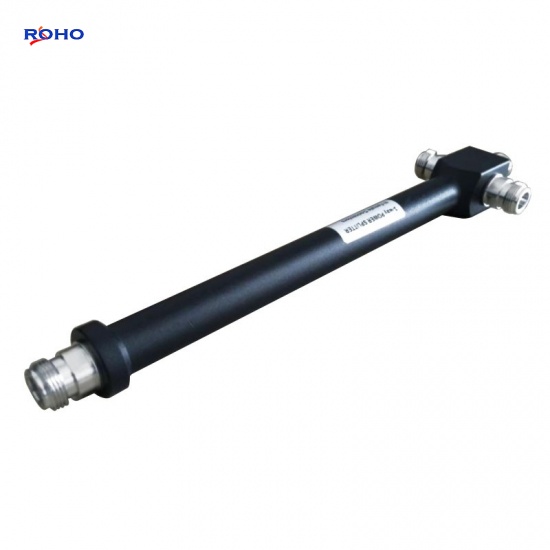

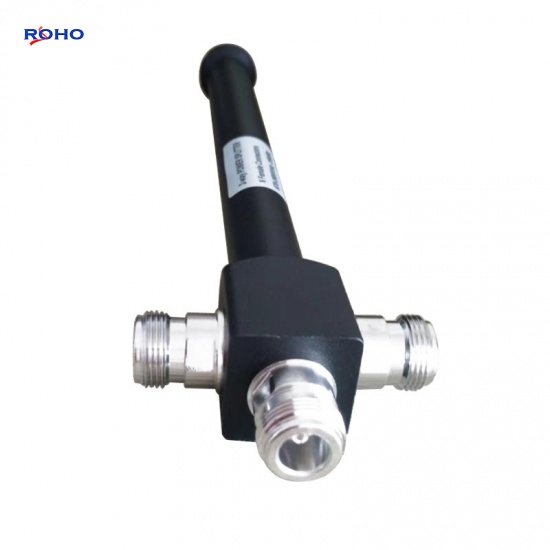

3 Way Low PIM 700W 150dbc RF Power Splitter with N Female Connector 670-3800MHz Ip65
The 3 way type N Power Splitter (also known as 3 way type N Power Divider) is rated for a minimum frequency of 617MHz and a maximum frequency of 3.8GHz. This 3 port type N power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 500W. ROHO's type N coaxial RF splitter / divider has a female N type input and 3 female type N output ports;This 3 way N type RF power divider is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this type N reactive splitter / divider is and the minimum isolation is 0 dB. The 3 port type N power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.
Specifications
Electrical Specifications | |
Frequency Range(MHz) | 670-3800 |
Type | 3 Way |
Impedance(Ω) | 50 |
Average Power(W) | 700W |
VSWR | ≤1.25 |
Split Loss(dB) | ≤4.8 |
Insertion Loss(dB) | ≤0.4 |
PIM (dBc) | ≤-150dBc@2*43dBm;≤-160dBc@2*43dBm;Or specify |
RF Connector Interface | N Female |
Environmental Specifications | |
IP Grade | IP65 |
Operating Temperature(℃) | -35~ +65 |
Relative Humidity | 5%-95% |
Application | Indoor or Outdoor |
Applications
- In-building Distribution System and Mobile Communication Network Optimization;
- Split the one Input signal into 2,3 or more paths in telecommunication applications;
- Radar, electronic navigation and electric confrontation;
- Aerospace equipment systems;
- Cluster communication, satellite communication, shortwave communication and hopping radio.
