N Type Power Splitters

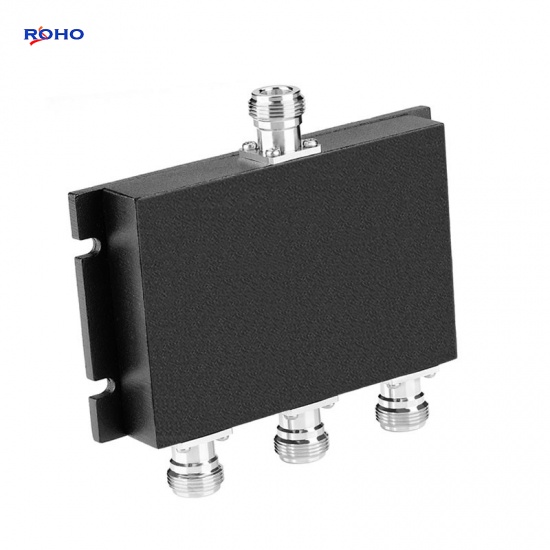

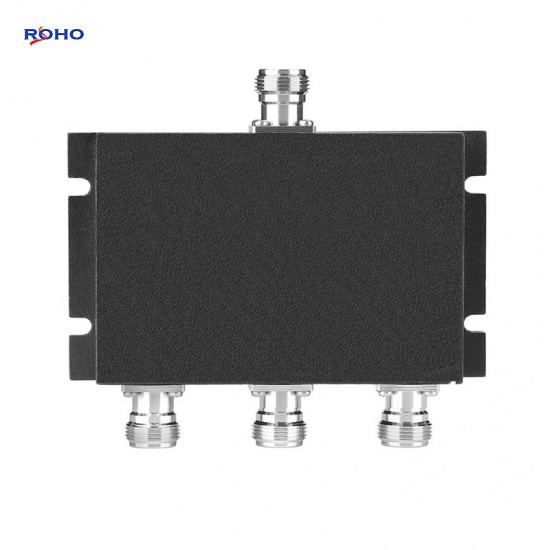

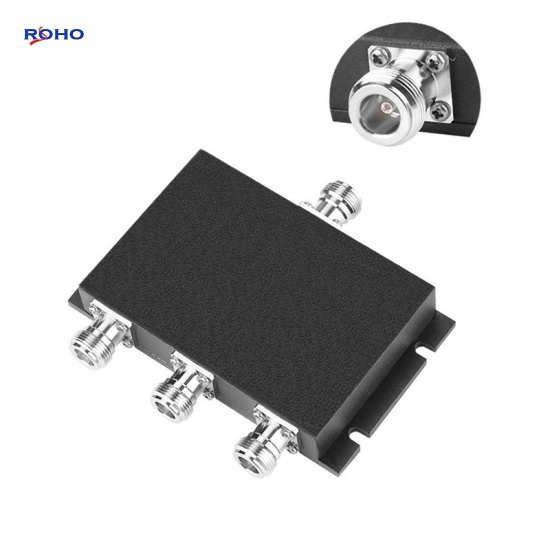

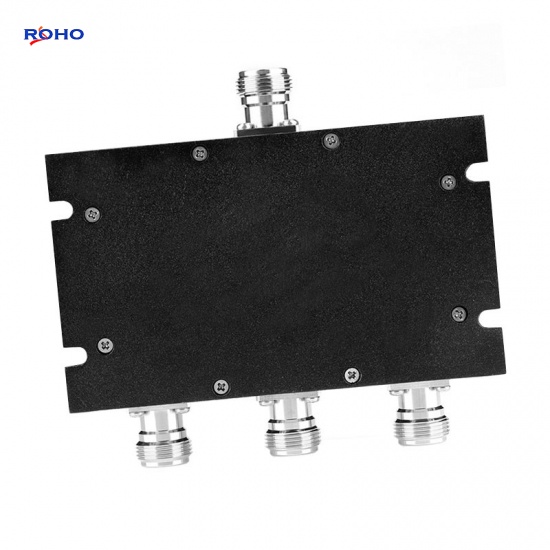

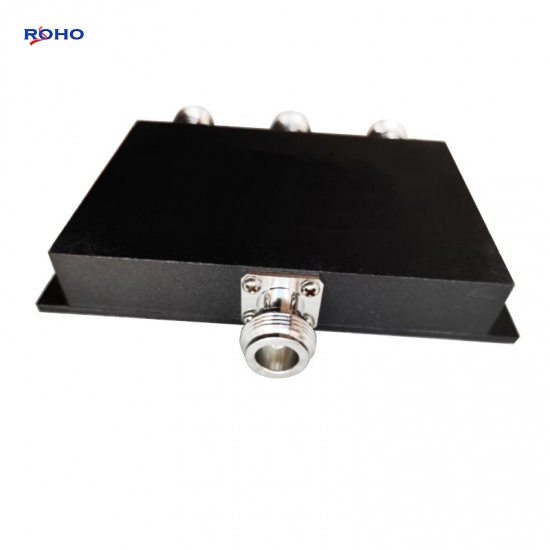

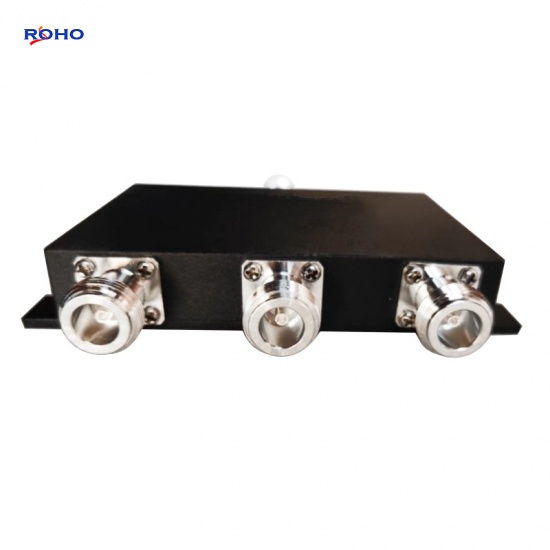

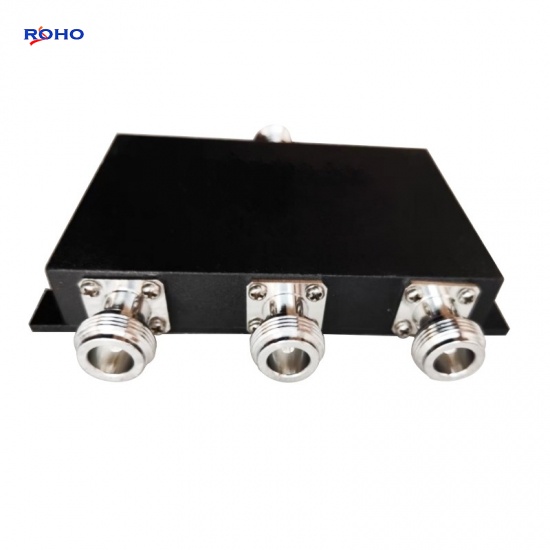

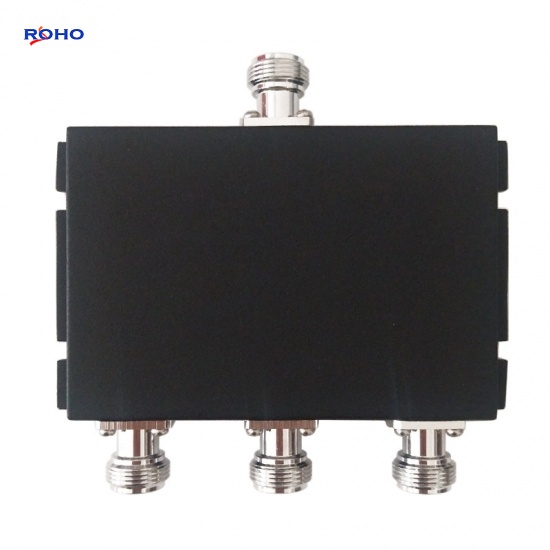

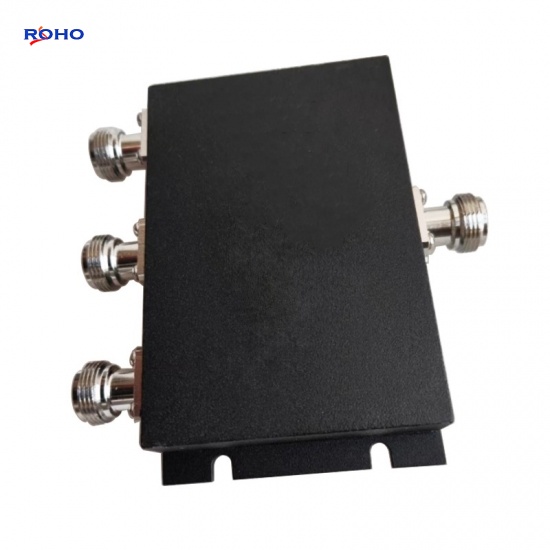

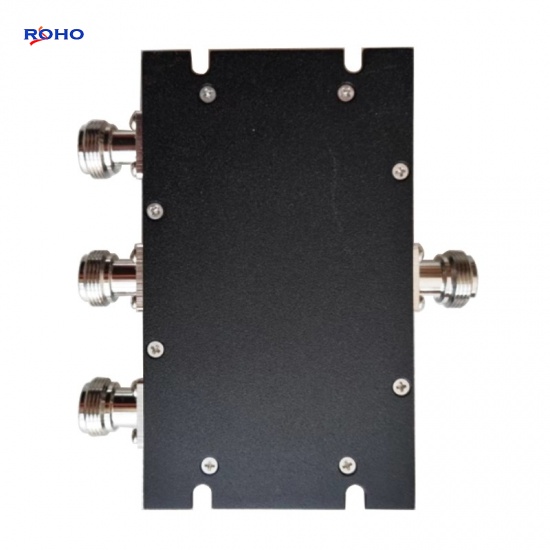

3 Way Wilkinson Power Divider 698-2700MHz 5dB N Female connector Micro-strip Power Splitter

Features

  • Wide Frequency Band
  • Low Insertion Loss
  • Low Intermodulation
  • Widely used in IBS & DAS
  • Low VSWR
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

3 Way Wilkinson Power Divider 698-2700MHz 5dB N Female connector  Micro-strip Power Splitter



This wilkinson 3 way type N Power Splitter (also known as 3 way type N Power Divider ) is rated for a minimum frequency of 698MHz and a maximum frequency of 2.7GHz. This 3 port type N power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 10W. ROHO's N type coaxial RF splitter / divider has a female type N input and 3 female N type output ports;This 3 way type N RF power divider is a wilkinson design and has a maximum insertion loss of 0. The maximum input VSWR of this type N wilkinson splitter / divider is 1.35:1 and the minimum isolation is 20dB. The 3 port type N power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.



Specifications

Product Type
3 Way
Frequency Range
698-2700 MHz
Split Loss
4.8dB
Insertion Loss
≤0.5dB
Isolation
≥20dB
VSWR
≤ 1.35 dB
Impedance
50ohm
Connector Type
N Female
Average Power
50W
Application
Indoor or Outdoor
Temperature
-35°C to +70°C



Applications

  • Mobile Communication Network Optimization and In-door distribution system.
  • Cluster communication, satellite communication, shortwave communication and hopping radio.
  • Radar, electronic navigation and electronic confrontation.
  •  Aerospace equipment systems.
