4.3-10 Power Splitters

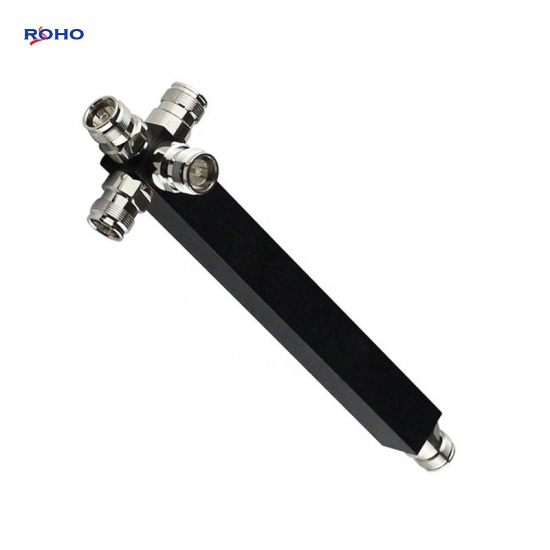

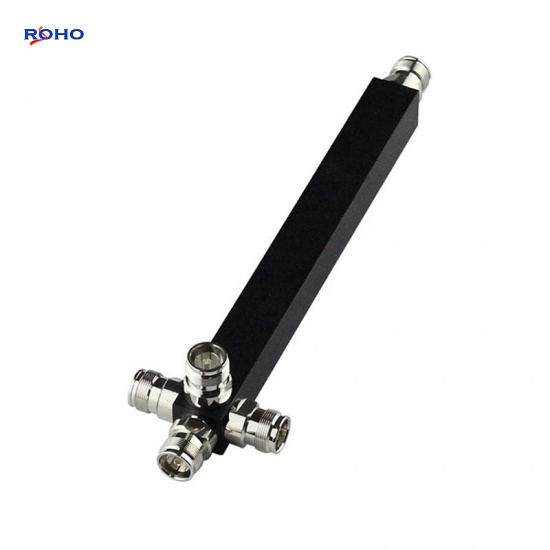

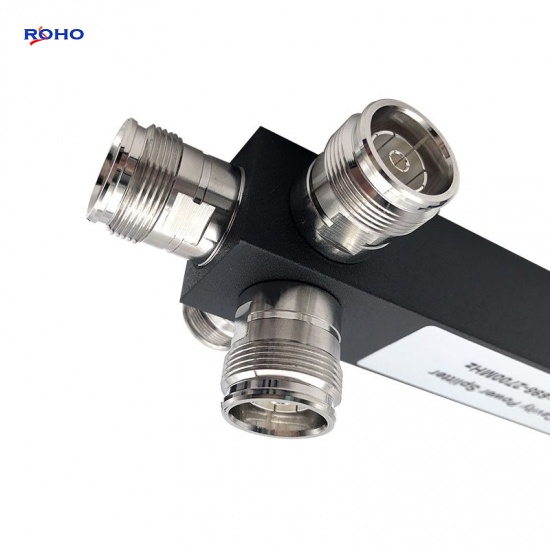

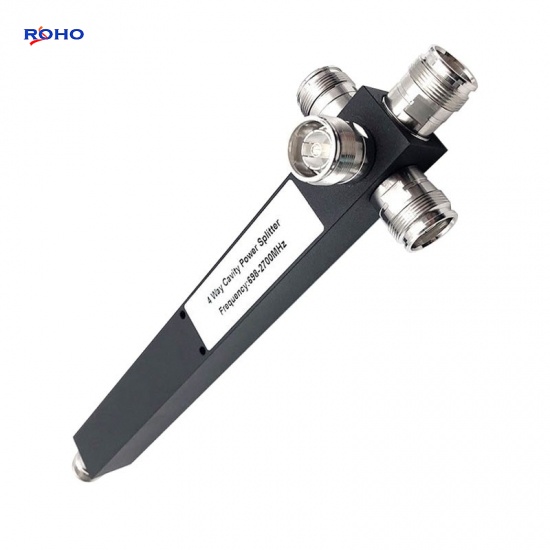

4 Way Power Splitter 698-2700MHz MINI DIN 4.3-10 Female Square Cavity Microstrip Power Divider

Features:

  • Wide Frequency Band for 4G and 5G, 698-2700MHz, 617-3800MHz, 698-3800MHz;
  • Low Insertion Loss & Low VSWR;
  • Low PIM, supports -140/-150/-155/-160dBc;
  • N, 7/16 DIN, 4.3-10 Female connectors are available;
  • Use for equal splitting of high power RF signals with minimal reflections or loss;
  • Multi-type power splitters are available in 2-way, 3-way and 4-way;
  • High Reliability, IP65 & IP67 waterproof.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

4 Way Power Splitter 698-2700MHz MINI DIN 4.3-10 Female Square Cavity  Microstrip Power Divider



The 4.3-10 Power Splitters (also known as MINI DIN Power Divider) are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined. ROHO offers 2 Way, 3 Way and 4 Way configurations fitted with N, 7-16 DIN Female or SMA Female connectors at all ports;The splitters cover the carrier bands of 698-2700Mhz and public safety/carrier bands of 380-2700Mhz. PIM performance is less than -160dBc 3rd order IM;Mainly used in repeater or base station to split, can also be used in indoor distribution system,All the specifications can be customized.



Specifications

Electrical Specifications
Frequency Range(MHz) 698-2700
Type 4 Way
Impedance(Ω) 50
Average Power(W) 300W
VSWR ≤1.25
Split Loss(dB)  ≤6.0
Insertion Loss(dB)  ≤0.5
PIM (dBc) ≤-150dBc@2*43dBm;≤-160dBc@2*43dBm;Or specify
RF Connector Interface 4.3-10 Female
Environmental Specifications
IP Grade IP65
Operating Temperature(℃) -35~ +65
Relative Humidity 5%-95%
Application Indoor or Outdoor



Applications

  • Mobile Communication Network Optimization and Indoor distribution system.
  • Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
  • Radar, Electronic Navagation and Electronic Confrontation.
  • Aerospace Equipment systems.
