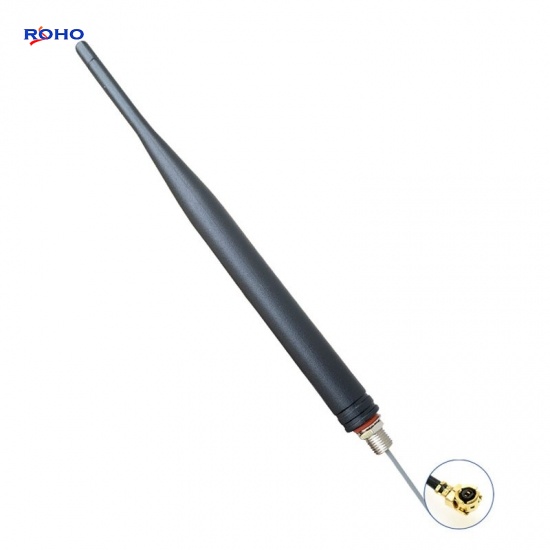

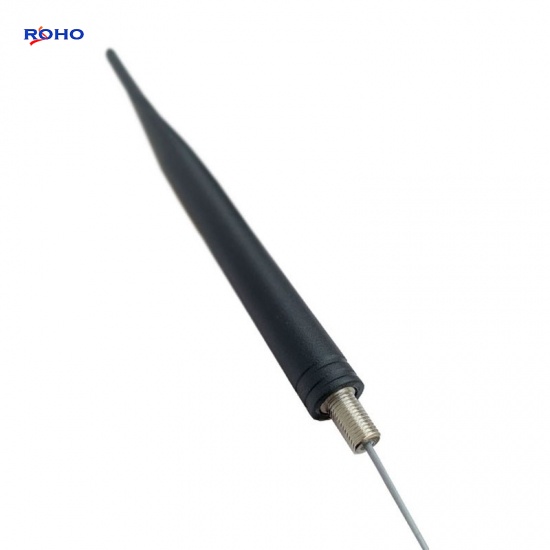

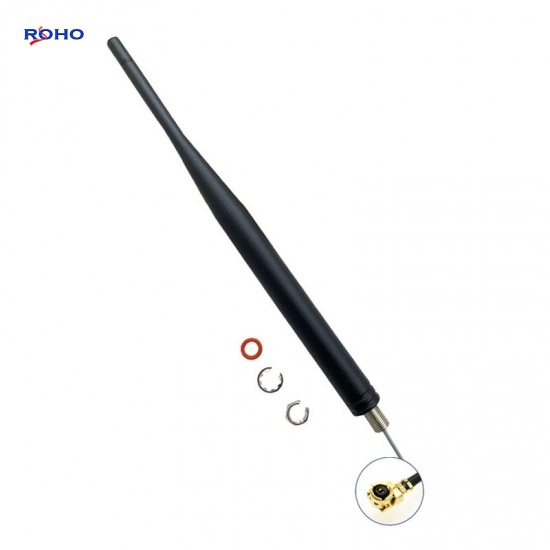

470-510MHz 3dBi Wireless Omni Direction IPEX UFL Connector for VHF Wireless Antenna

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

470-510MHz 3dBi Wireless Omni Direction IPEX UFL Connector for VHF Wireless Antenna

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  470-510
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  IPEX Male
Mounting   /
Housing  Black/White
Storage Temperature  -45 to +75
Operating Temperature  -45  to +75



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
