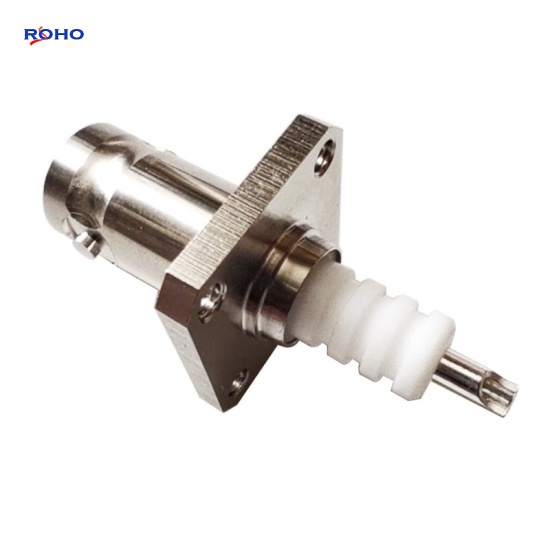

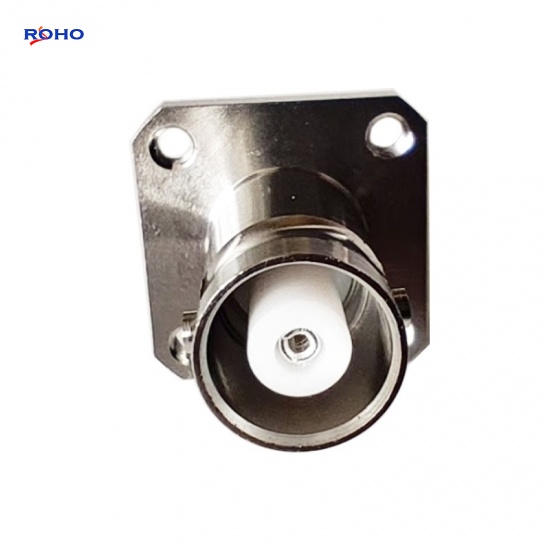

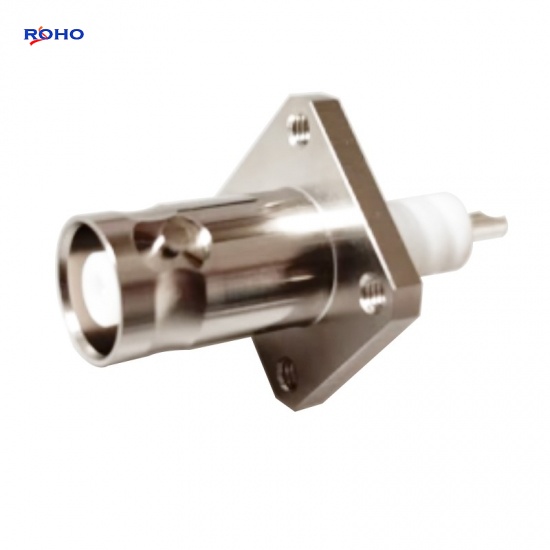

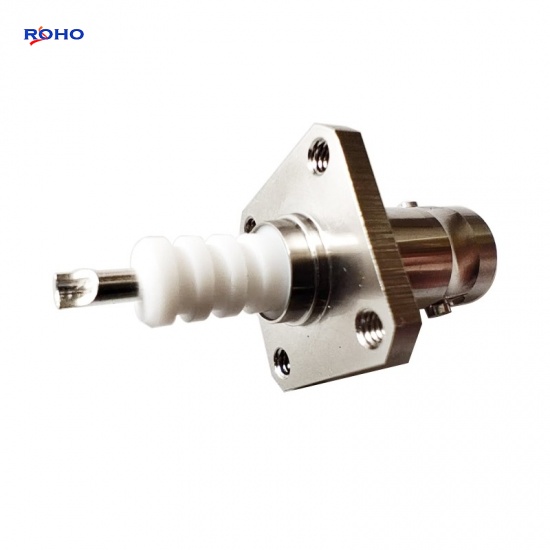

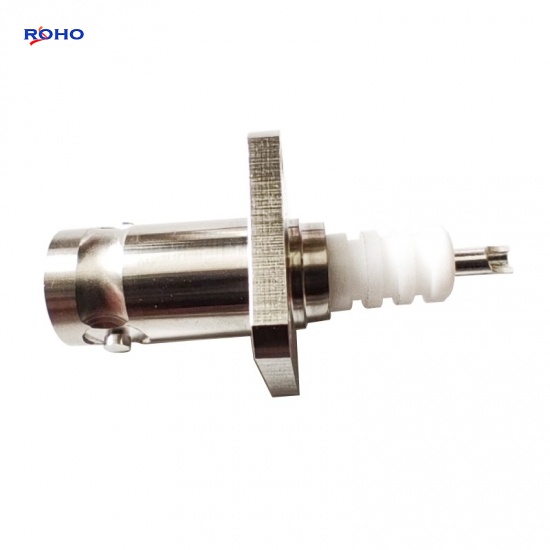

4GHz MHV Female Jack 4 Screw Thread Hole Panel Connector with Solder Cup
The MHV connectors are terminate to coax or terminal, are male or female gender with 50 Ohm impedance; it are available in straight or right angle, as well as, bulkhead, 4 hole panel or mountless, attachment methods include clamp/solder, crimp/solder or solder, ROHO's MHV coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz; this MHV female 4 hole flange connector has an interface type of solder cup and a 50 Ohm impedance, attachment method uses shield/contact solder, its straight body is a brass body with nickel plating.
Specifications
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency range (for connector interface) | 4GHz (DC - 12 GHz on Extended Range Designs) |
| Dielectric withstanding Voltage (at sea level) | 1500V rms, 50Hz (depending on cable) |
| Working voltage (at sea level) | 500V rms, 50Hz (depending on cable) |
| Insulation resistance | ≥ 5000 mΩ |
| Contact resistance | centre contact≤1.5mΩ |
| outer contact: ≤ 1 mΩ | |
| RF-leakage (between 2÷3 GHz) | ≥55 dB |
| MECHANICAL DATA | |
| Coupling nut torque | 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs |
| Coupling nut retention force | ≥450N / 101.2 lbs |
| Contact captivation | ≥27N / 6.1 lbs |
| Durability (matings) | ≥500 |
| VSWR Right angle | ≤ 1.3 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--Ni plating |
| Pin contacts | Brass--Au / Ag plating |
| Socket contacts | Copper--beryllium Au / Ag plating |
| Crimp ferrules | Copper alloy--Ni plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
Applications
- Antennas
- Telecommunications
- Automotive
- Computers/LANs
- Medical Equipment
- Medical Equipment
- Base Stations
- Cable Modems
- Instrumentation
- Military/Aerospace
