UHF Terminators

50W PL259 UHF Load Termination DC-1GHz Termination Loads 50ohm RF Dummy Load

Featrues:

  • Wide Frequency Band Covering 555-4000MHz;
  • Excellent Performance in PIM;
  • Low VSWR;
  • Indoor& Outdoor Using IP65;
  • Available with Type N, DIN7-16, 4.3-10, NEX10 Connectors.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

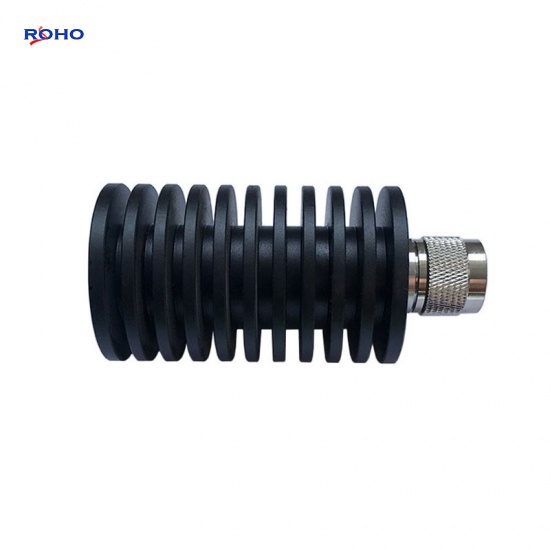

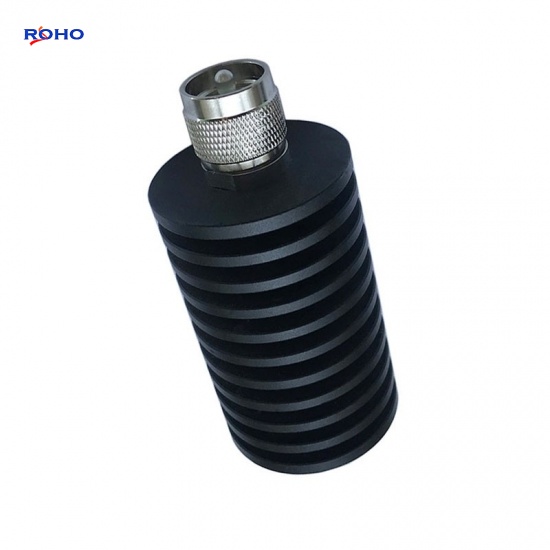

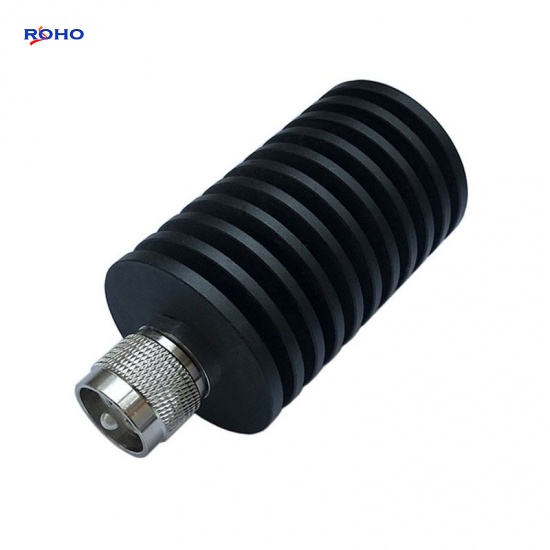

50W PL259 UHF Load Termination DC-1GHz Termination Loads 50ohm RF Dummy Load



The 50W UHF RF Dummy Load(also known as 50W UHF termination Load or 50W UHF RF load) Low-Loss RF Termination with an integral PL-259 connector which allows direct connection to the transmitter. No coaxial cable required. It's aluminum air-cooled heatsink absorbs, and 50W average power. 50ohms (±5%). Covers DC to 1GHz with an average VSWR of less than 1.2:1; This UHF RF Termination Load is mainly used to absorb the power of RF or microwave system. It can be used as the false load of antenna and the terminal of transmitter; ROHO also could do DIN-Male, DIN-Female,4.3-10 Male, 4.3-10 Female, N-Male,N Female or other Connector for this product,All specification we can be customized.



Specifications

ELECTRICAL DATA
Frequency DC~1GHz
Connector UHF Male
VSWR ≤1.2
Power 50W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Aspplication

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
