NEX10 Terminators

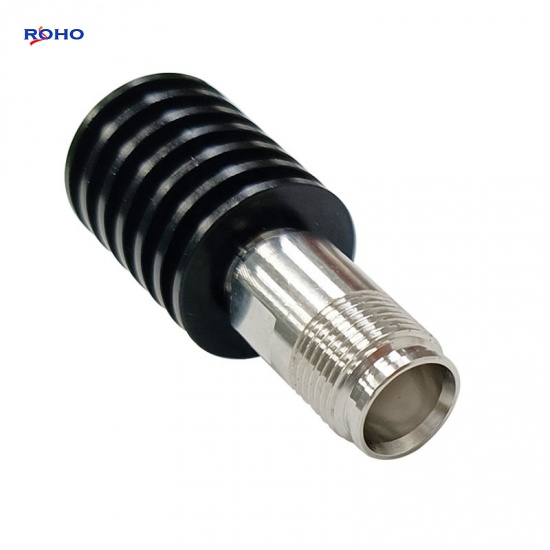

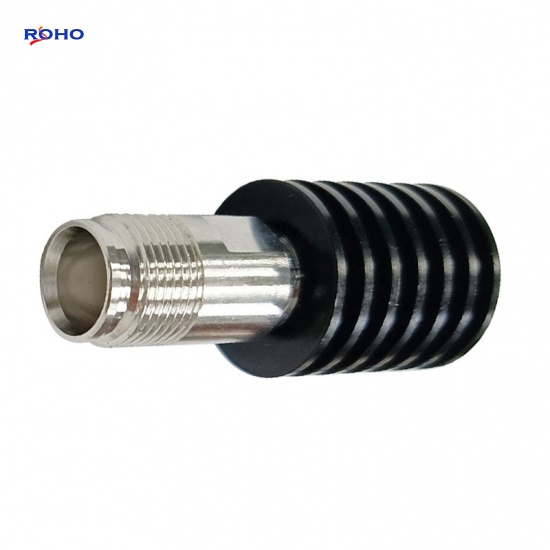

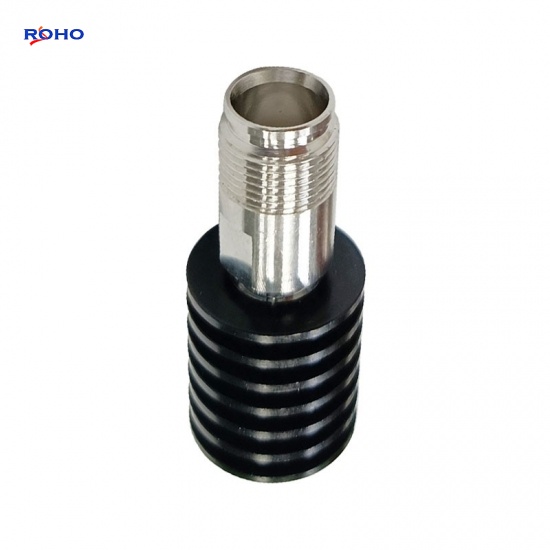

5W 50ohm NEX10 Female RF Coaxial Load Termination DC-3GHz Dummy Load

 Features:

  • Wide Frequency Band;
  • 2G/3G/4G/5G LTE Coverage;
  • Low VSWR;
  • Widely used for In-building Solutions;
  • High Quality;
  • Durable&Long Service Life;
  • A variety of products can be chosen;
  • All the specifications can be changed as customer's requirment.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

5W 50ohm NEX10 Female RF Coaxial Load Termination DC-3GHz Dummy Load



The 5W NEX10 RF dummy loads (also known as 5W NEX10 RF termination loads, or 5W Female RF terminations ), it is mainly used to absorb the power of the RF or microwave system. Termination Load / dummy load is a resistive component and indispensable components in many RF, microwave systems where signal reflection from unused ports can potentially damage the device or reduce the signal. By using a termination load on an unused port, the incident energy will be absorbed with minimal reflection, it acts as a protector. The termination load is commonly used to terminate devices, such as couplers, circulators and switches.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz
Connector NEX10 Female
VSWR ≤1.2
Power 5W
Impedance 50Ω
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • Measurement systems
  • Multi-port microwave device
  • Directional couplers
  • Isolators
