SMA Power Splitters

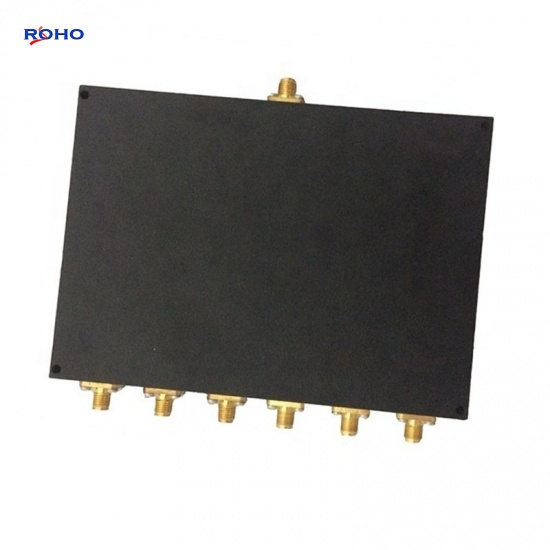

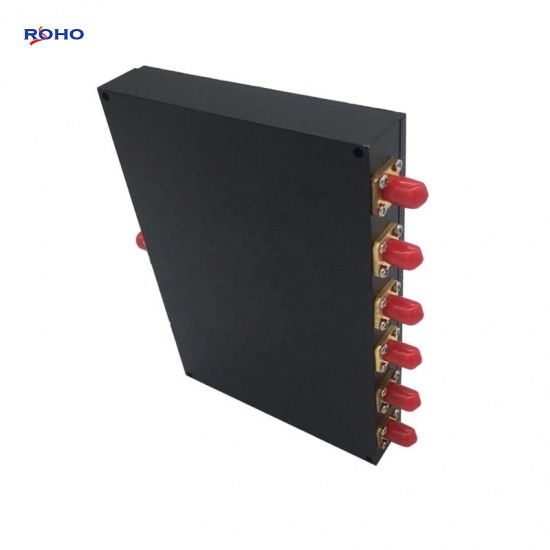

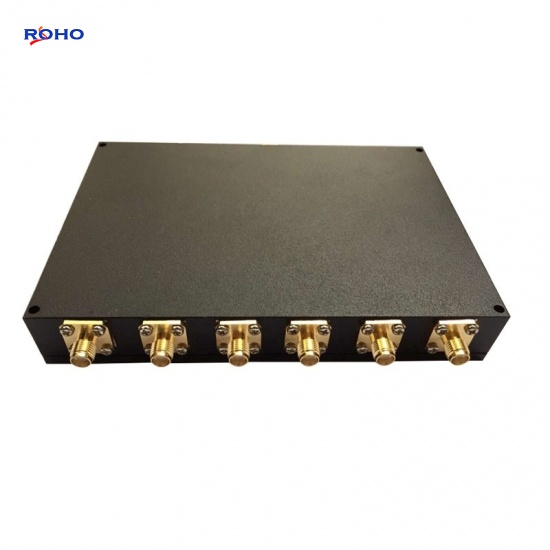

6 Way SMA Female Power Splitter 800-2700MHz Micro Strip Type Power Divider

Features:

  • Wide Frequency Band
  • Low Insertion Loss
  • Low Intermodulation
  • Widely used in IBS & DAS
  • Low VSWR
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

6 Way SMA Female Power Splitter 800-2700MHz Micro Strip Type Power Divider



The wilkinson 6 way SMA Power Splitter (also known as 6 way SMA Power Divider ) is rated for a minimum frequency of 800MHz and a maximum frequency of 2.7GHz. This 6 port SMA power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 10W. ROHO's SMA coaxial RF splitter / divider has a female SMA input and 6 female SMA output ports;This 6 way SMA RF power divider is a wilkinson design and has a maximum insertion loss of 0. The maximum input VSWR of this SMA wilkinson splitter / divider is 1.4:1 and the minimum isolation is 20dB. The 6 port SMA power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.



Specifications

Frequency Range
800-2700MHz
Split Loss
7.8dB
Insertion Loss
≤1.0dB
Isolation
≥20dB
VSWR
≤1.4
Impedance
50ohm
Connector Type
SMA Female
Average Power
50W
Application
Indoor or Outdoor
Temperature
-35°C to +70°C



Applications

  • Mobile Communication Network Optimization and In-door distribution system.
  • Cluster communication, satellite communication, shortwave communication and hopping radio.
  • Radar, electronic navigation and electronic confrontation.
  •  Aerospace equipment systems.
