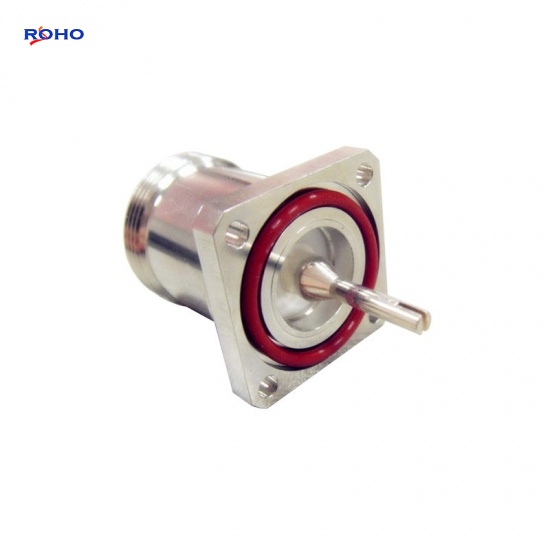

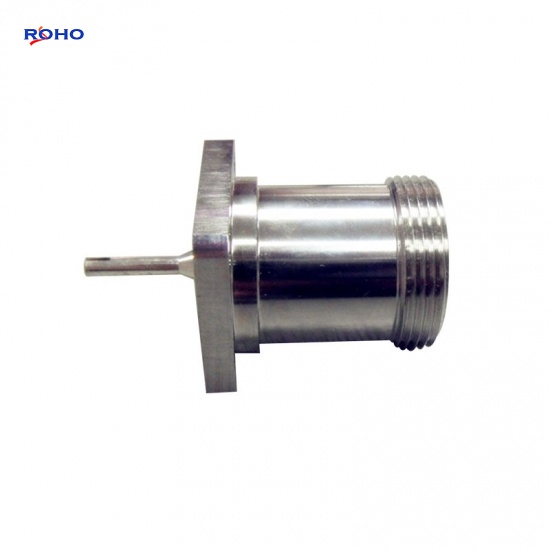

7-16 DIN Female Waterproof IP67 Low PIM Connector Solder 4 Hole Flange Mount with Slotted Pin Contact Terminal
The 7-16 DIN connector are from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact; These RF coaxial connectors are very robust, extremely stable and waterproof, frequency max up to 7.5GHz; this 7-16 DIN male coaxial connector with 4 hole flange has an interface type of slotted Ppin contact terminal and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with ternary alloy plating.
Specifications
ELECTRICAL DATA | |
Impedance | 50Ω |
Frequency Range | 7.5GHz |
Dielectric withstanding voltage (at sea level) | 4000 V rms,50Hz |
Working voltage (at sea level) | 2500 V rms,50Hz |
Insulation resistance | ≥ 100000 mΩ |
Contact resistance | Inner conductor: ≤0.4mΩ |
Outer conductor: ≤1.5mΩ | |
RF leakage (at 1 GHz) | ≥128dB |
MECHANICAL DATA | |
Coupling nut torque | Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
Proof torque: 35 Ncm / 310 in.lbs | |
Coupling nut retention force | ≥1000N / 225.0 lbs |
Contact captivation | ≥200N / 45.0 lbs |
Durability (matings) | ≥500 |
ENVIRONMENTAL DATA | |
Temperature range | -65°C to +165°C |
MATERIAL DATA | |
Bodies | Brass--ternary alloy plating |
Pin contacts | Brass--Au/Ag plating |
Socket contacts | Phosphor bronze / Beryllium copper--Ag plated |
Crimp ferrules | Copper--ternary alloy plating |
Insulator | PTFE |
Gaskets | Silicone rubber |
Applications
- Wireless Infrastructure
- Base Stations
- Lightning Protection
- Satellite Communications
- Antenna Systems
