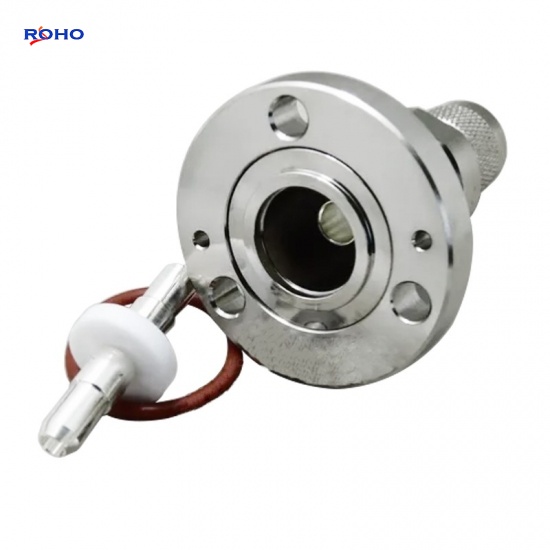

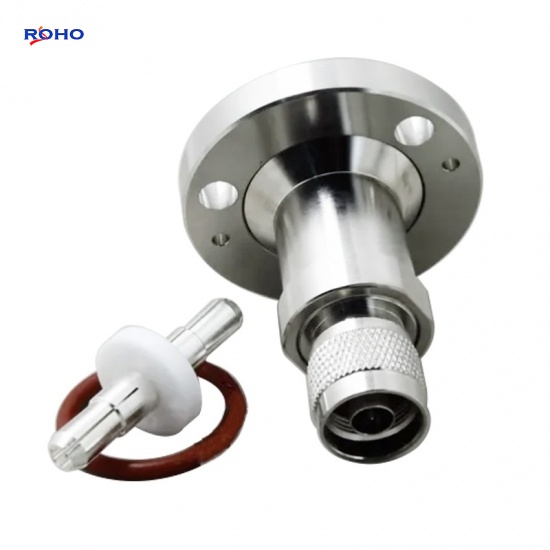

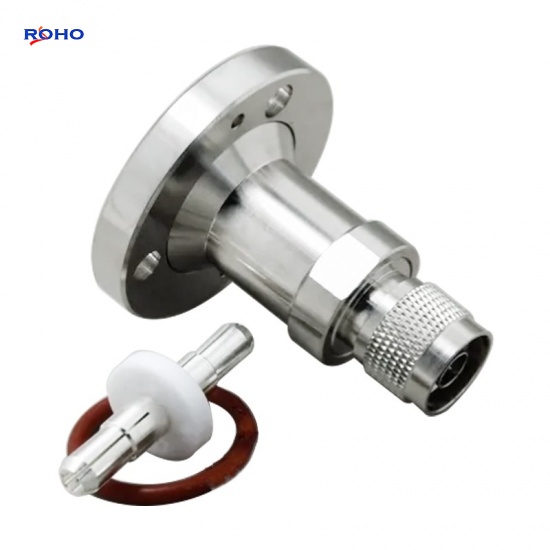

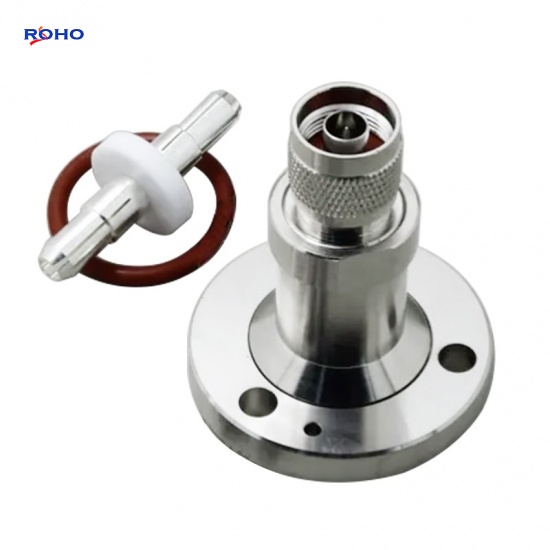

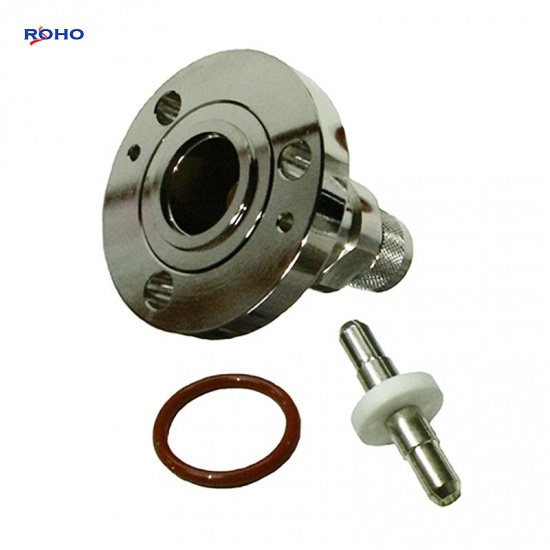

7/8" EIA Flange to N Type Male Straight Connector Adaptor
The EIA coaxial connectors are available in EIA 7/8”, EIA 1 5/8”, EIA 3 1/8”, EIA 4 1/2” and EIA 6 1/8” versions, all of which are suitable for RF applications. Designed to support cables with foam or air-dielectric, they consist of a main body, mounting flange with various bolt circles, and typically have interchangeable/removable center conductor “bullets”. Due to the flexibility of their design, EIA connectors are often not identified as male or female, as the connector can typically be configured as either. EIA connectors can be found in high power applications on directional couplers, coaxial cables, power amplifier outputs, and interconnects on communication towers and antennas. The most common sizes found in general test and measurement applications are the 1 5/8 and 7/8 EIA. There are a variety of adapters available to adapt the EIA series to some of the larger RF connectors such as the 7-16 and N type. This is a 7/8" EIA flange connector to N male adaptor, and is a straight adapter.
Specifications
| ELECTRICAL DATA | |
| Frequency Range | DC-5GHz |
| VSWR | ≤1.07@DC-1000MHz |
| Insertion loss typical | ≤0.05DBi |
| Dielectric Withstanding Voltage | ≥6000V RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Peak Power Maximum | 90KW |
| Average Power | 2.3KW @900MHz |
| Contact Resistance | Center Contact ≤1.5mΩ Outer Contact ≤1.5 mΩ |
| MECHANICAL DATA | |
| Durability | Mating cycles ≥500 |
| ENVIRONMENTAL DATA | |
| Operating Temperature | -45 °C-85 °C |
| Weatherproof Rate | IP67 |
| RoHs (2002/95/EC) | Compliant |
| Suitable Cable Family | / |
| MATERIAL DATA | |
| Body | Brass |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze |
| Coupling Nut | Brass |
| Gasket | Silicone Rubber |
| Cable Clamp | Brass |
| Hardware kit(Bolts /Nut/Washer) | Stainless Steel |
Applications
- Mobile communication
- Broadcast
- Measurement
- Satellite communication
