Assemblies Process Workshop1 Nov 18, 2021
Cable Assembly Process

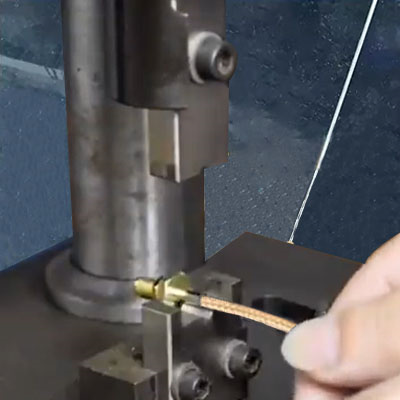

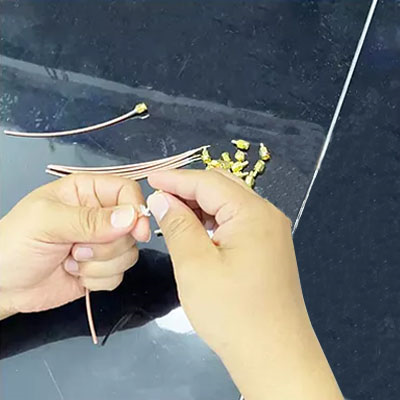

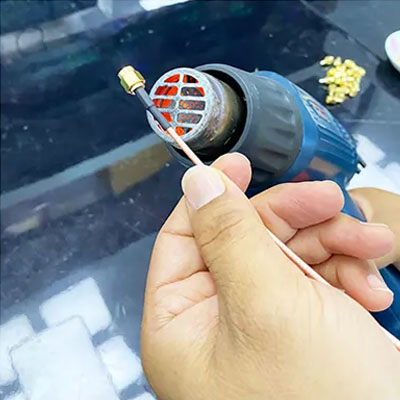

4.Mount   5.Crimp   6.Blow

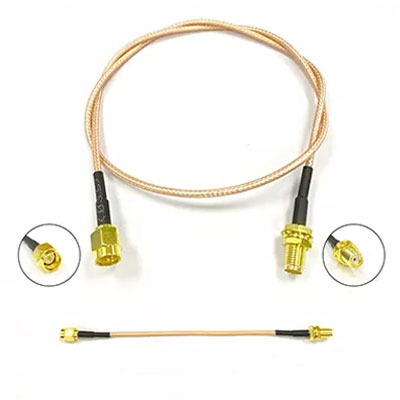

8.Finished Cable


     This cable Assembly is combine with our company self-made precision connector connect different brand and model flexible soft cable, or semi-rigid, semi-flexible cable assembly , with characteristics of wide bandwidth,low loss, good homogeneity, It’s widely used in microwave equipment and data communications equipment, avionics, phased array radar, RF device.


     We focus on coaxial assemblies

     Our custom RF cable assemblies are built-in and shipped worldwide

     RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB

     RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications

     If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.

     Note: connector and cable type,length can be changed based on customer's requirements.
