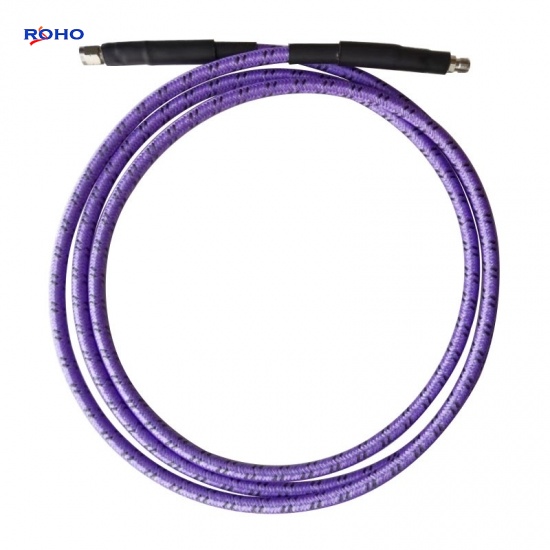

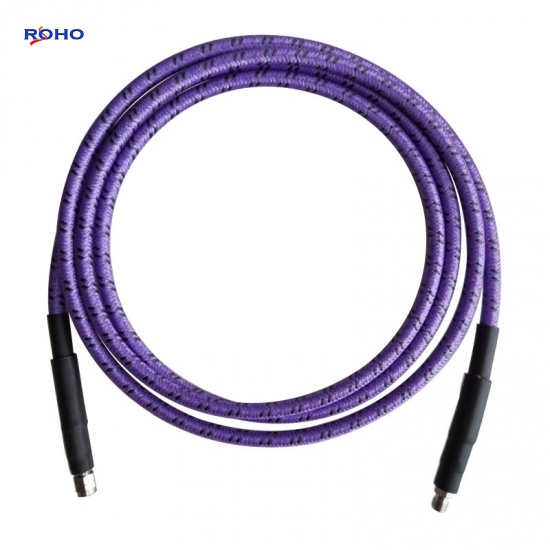

Factory Supply Stainless Steel 2.4mm Male to SMA Female Connector Cable Assembly with ZT40P Cable

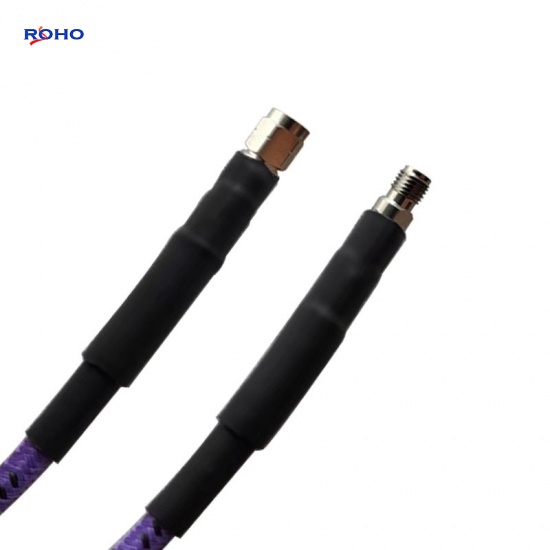

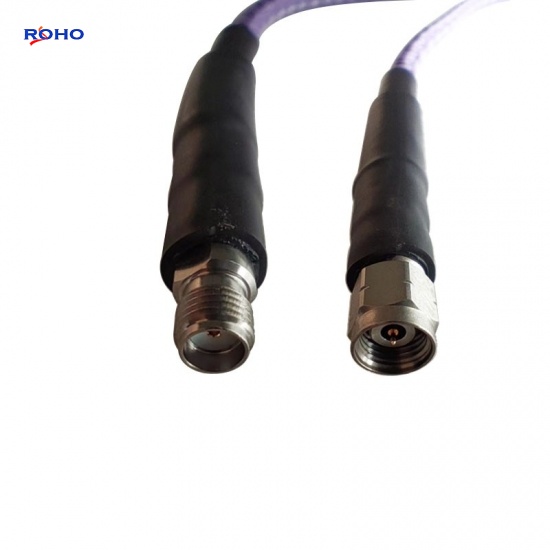

The 2.4mm cable assembly can use flexible, formable or semirigid coaxial cable such as RG405, RG402, ZT40, ZT40P Cable; the body of 2.4mm to SMA cable assembly is straight connectors which is female to female, male to female or male to male gender. This 2.4mm male to SMA female cable assembly uses a 50ohm straight 2.4mm for connector 1 and a 50ohm straight SMA for connector 2, Cable is 50ohm ZT40P.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | 2.4mm |
Connector 1 Style | Str Male |
Cable Type | ZT40P |
Connector 2 Series | SMA |
Connector 2 Style | Str Female |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | No |
Max Frequency | 3GHz |
Working Temperature | -65°C to +165°C |
ELECTRICAL DATA | |
Body Material |
Stainless Steel |
Body Finish |
Passivated |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material | PTFE |
Applications
- VNA network analyzer
- RF and microwave test instrument
- production line test
- ATE system
- laboratory
