N Type Attenuators

300W DC-6GHz 40dB Fixed Attenuator N Type Female to Female Connector

N Type Attenuator Features:

  • N connector input, out connector can be 7-16 DIN, N, SMA or TNC;
  • Maximum frequency of 18 GHz;
  • A male gender in and a female gender out;
  • Attenuation values range from 1dB to 60dB.



  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

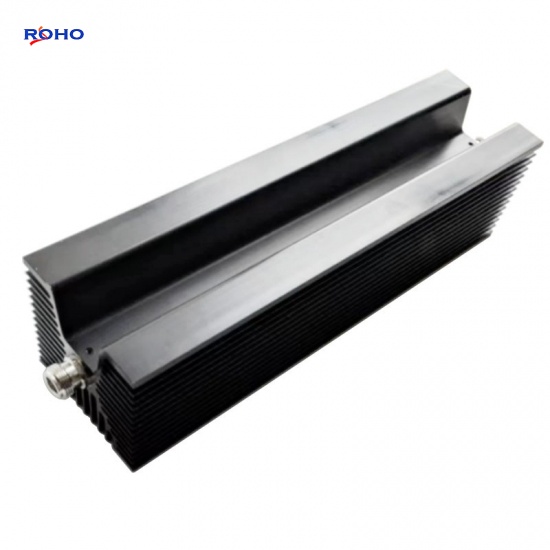

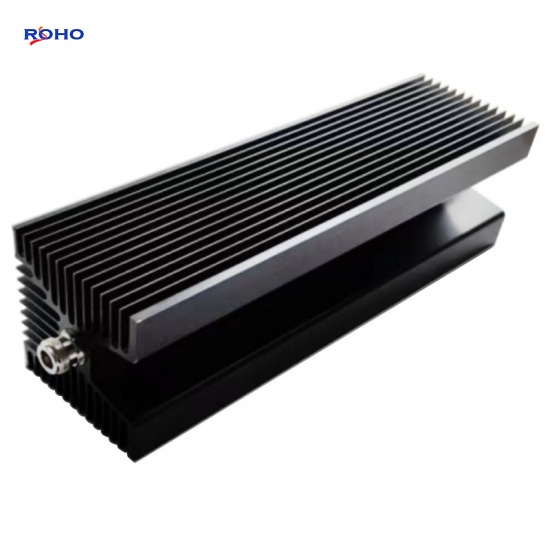

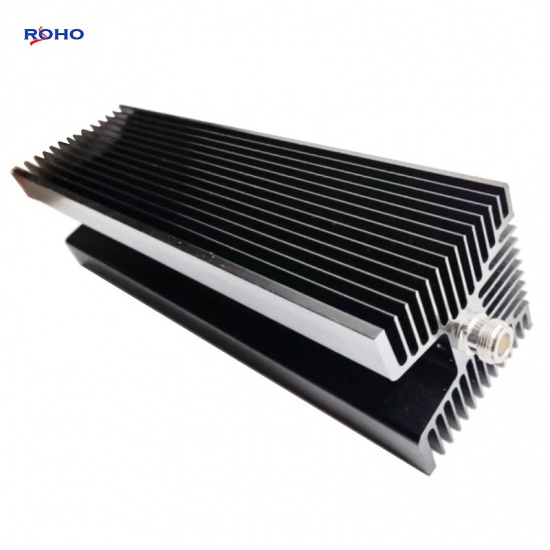

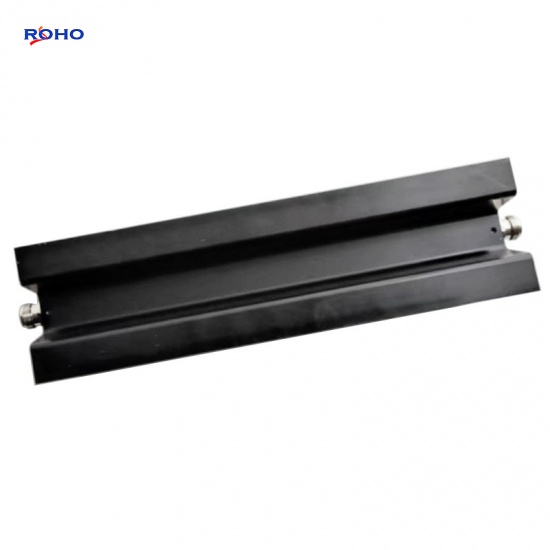

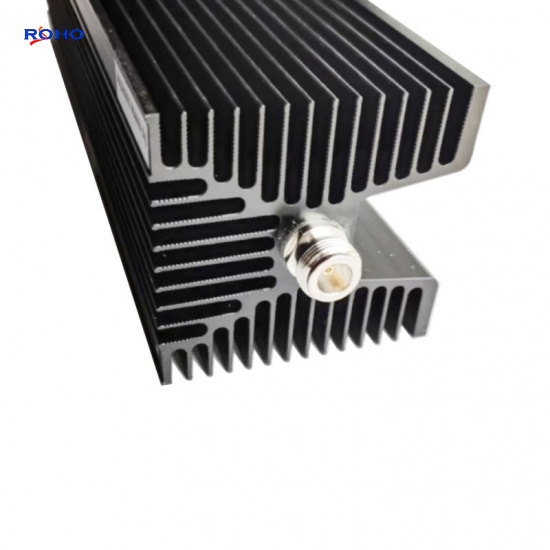

300W DC-6GHz 40dB Fixed Attenuator N Type Female to Female Connector



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's N Type Attenautor is a High Power Coaxial Attenuator from 1 to 500W, and we offer 50ohm loads terminations male and female type. This 300W N to N Attenuator has a N female gender on side 1 and a N female connector on side 2. attenuation Max value is 50dB, frequency Max is 18GHz.



Specifications

ELECTRICAL DATA
Frequency DC~6GHz
Connector N Female to Female
VSWR ≤1.3
Power 300W
Impedance 50Ω
Attenuation value 40dB
Attenuation 1, 3, 6, 10, 15, 20, 30, 40, 50dB available
1-10dB±0.8dB, 15-30dB±1dB, 40-50dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • In-door distribution system
  • Cluster communication
  • Satellite communication
  • Shortwave communication
  • Hopping radio
  • Reduce the power level of an RF signal
  • Control a signal
