N Type Attenuators

30W N Type Coaxial Fixed Attenuator Male to Female DC-3GHz/4GHz 1-50dB 50ohm

N Type Attenuator Features:

  • N connector input, out connector can be 7-16 DIN, N, SMA or TNC;
  • Maximum frequency of 18 GHz;
  • A male gender in and a female gender out;
  • Attenuation values range from 1dB to 60dB.



  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

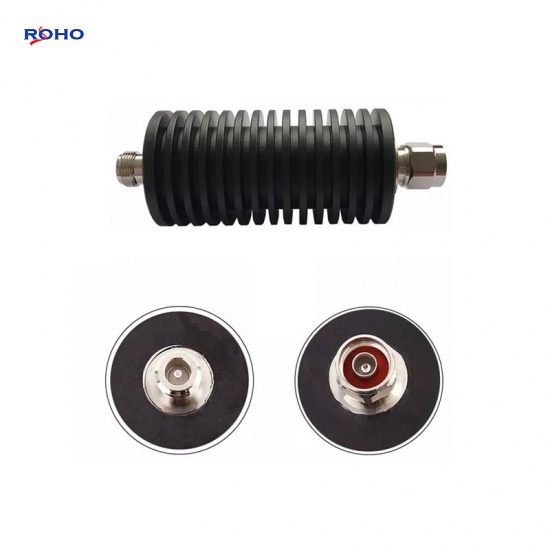

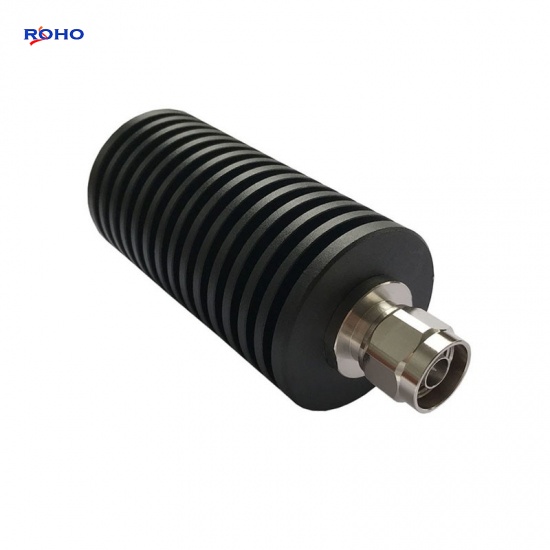

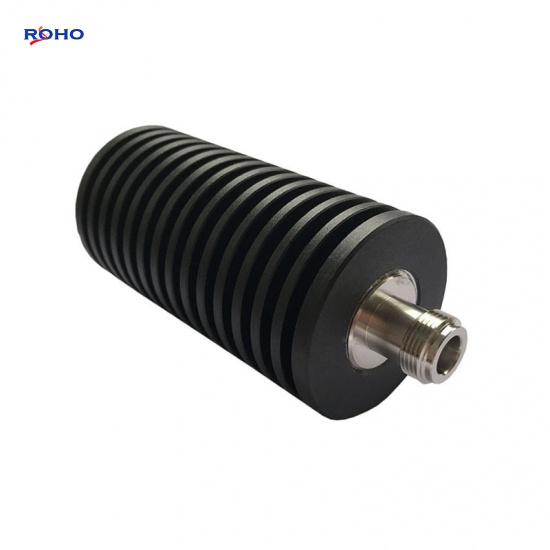

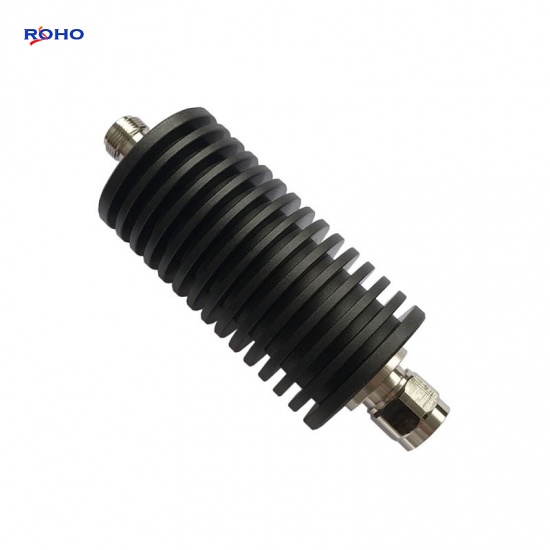

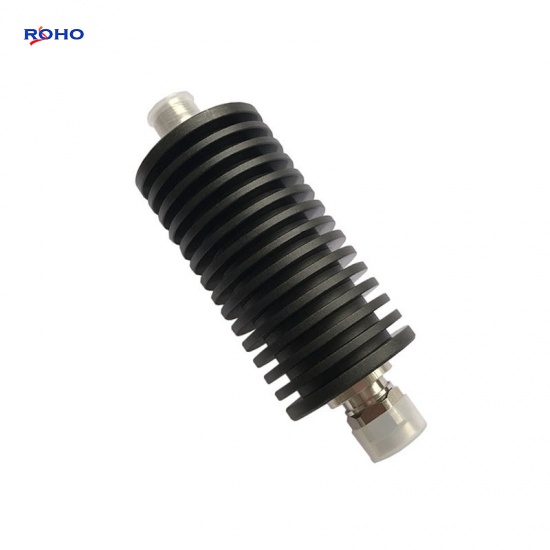

30W N Type Coaxial Fixed Attenuator Male to Female DC-3GHz/4GHz 1-50dB 50ohm



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's N Type Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 30W N to N Attenuator has a N male gender on side 1 and a N female connector on side 2. attenuation Max value is 50dB, frequency Max is 18GHz.



Specifications

ELECTRICAL DATA
Frequency DC~3GHz/4GHz
Connector N Male to Female
VSWR ≤1.3
Power 50W
Impedance 50Ω
Attenuation value 1-50dB
Attenuation 1, 3, 5, 6, 10, 15, 20, 30, 40, 50dB is available
1-10dB.±0.5dB,15-30dB±1dB, 40-50dB±1.5dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ni
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au
Housing  Aluminum,Black



Applications

  • In-door distribution system
  • Cluster communication
  • Satellite communication
  • Shortwave communication
  • Hopping radio
  • Reduce the power level of an RF signal
  • Control a signal
