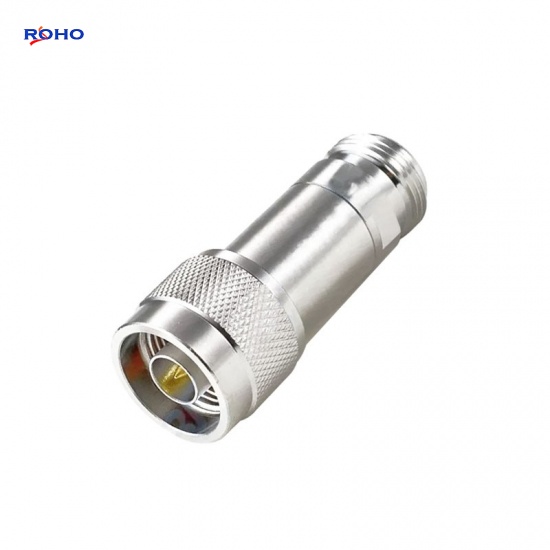

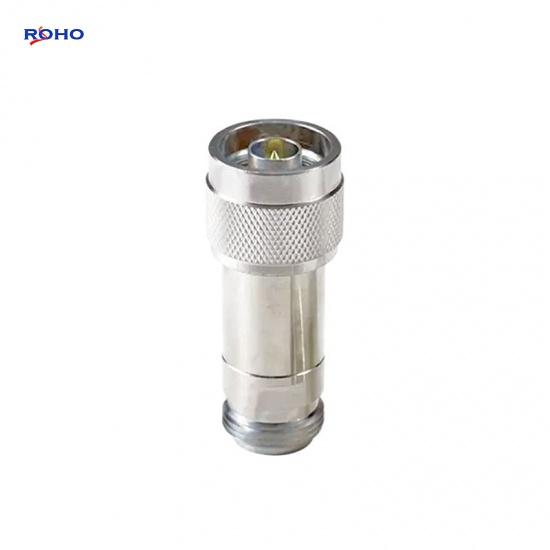

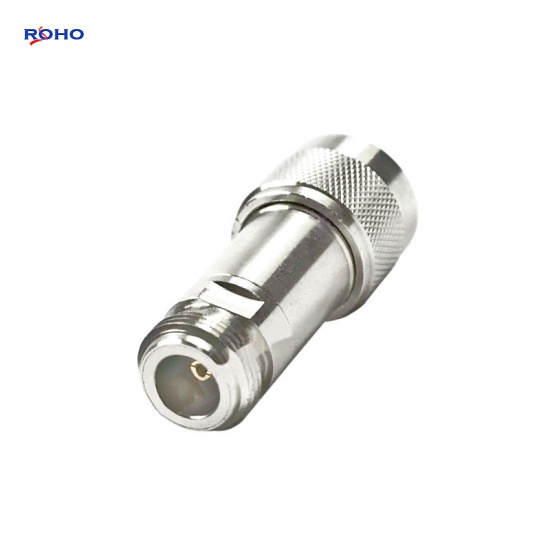

5W N Type Male to Female RF Coaxial Fixed Attenuator DC-3GHz/4GHz 1-40dB Avaliable
The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's N Type Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 5W N to N Attenuator has a N male gender on side 1 and a N female connector on side 2. attenuation Max value is 40dB, frequency Max is 18GHz.
Specifications
| ELECTRICAL DATA | |
| Frequency | DC~3GHz/4GHz |
| Connector | N Male to Female |
| VSWR | ≤1.3 |
| Power | 2W or 5W |
| Impedance | 50Ω |
| Attenuation value | 1-40dB |
| Attenuation | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 40dB available 1-10dB.±0.5dB,15-30dB±1dB, 40dB±1.5dB |
| Temperature Range | -55℃～+125℃ |
| MATERIAL DATA | |
| Connector body | Brass,Plating Ni |
| Insulator | PTFE |
| Inner Conductor | Phosphor Bronze ,Plating Au |
| Housing | Aluminum,Black |
Applications
- In-door distribution system
- Cluster communication
- Satellite communication
- Shortwave communication
- Hopping radio
- Reduce the power level of an RF signal
- Control a signal
