FAKRA Cable Assemblies

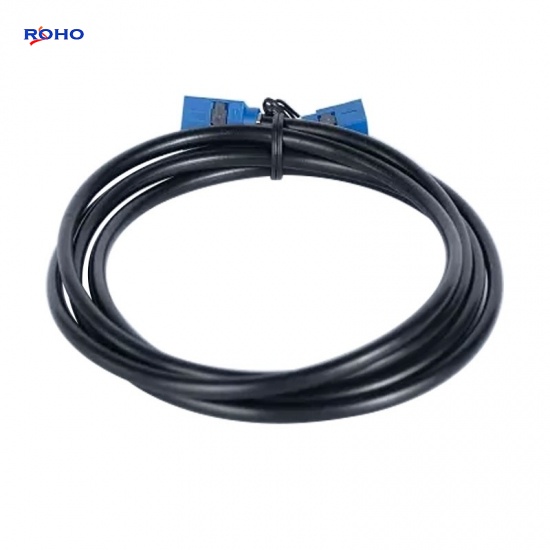

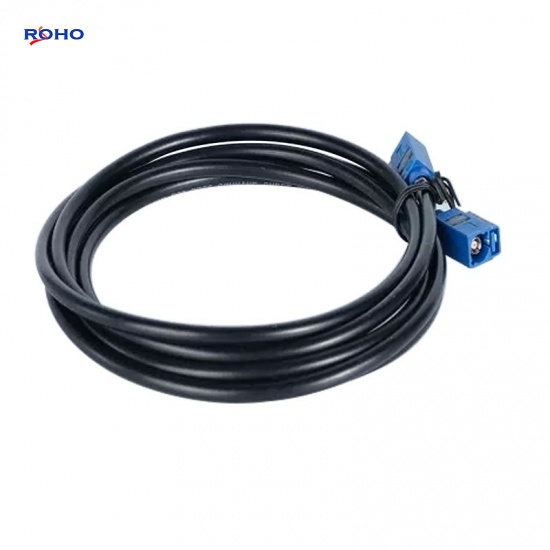

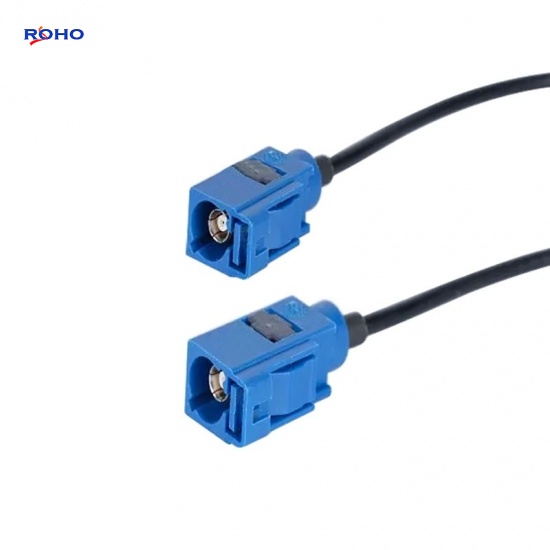

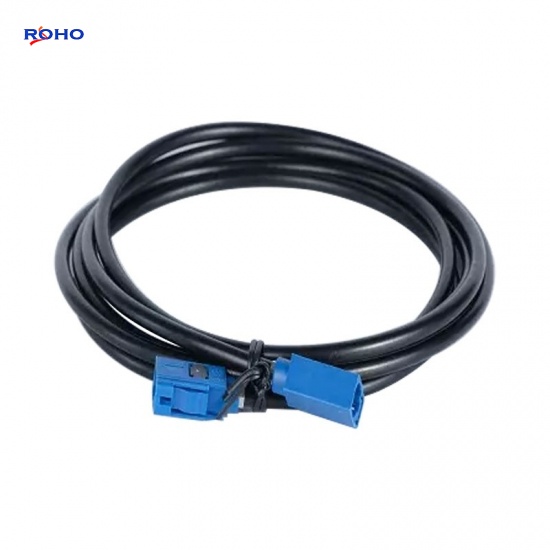

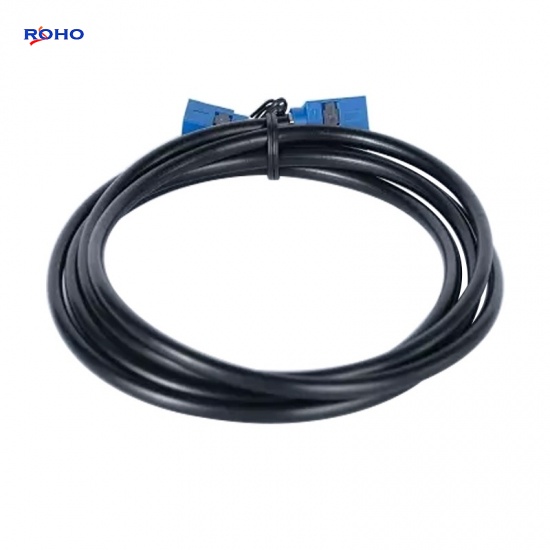

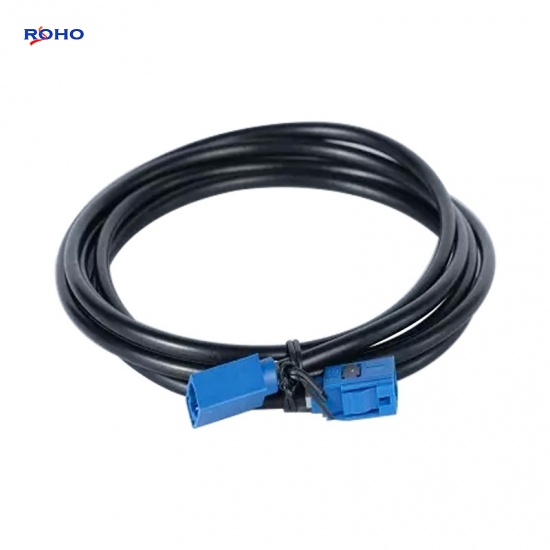

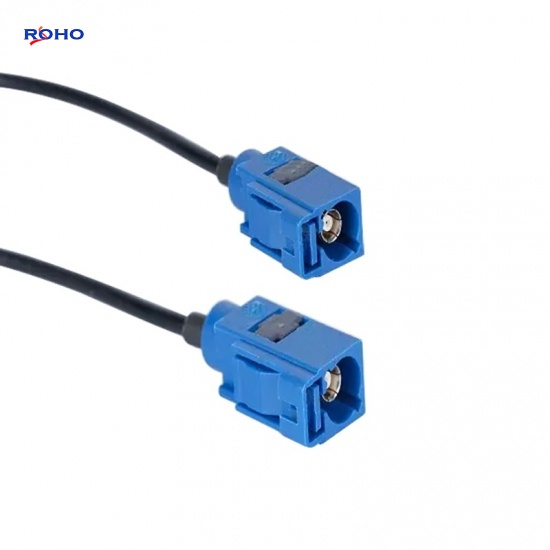

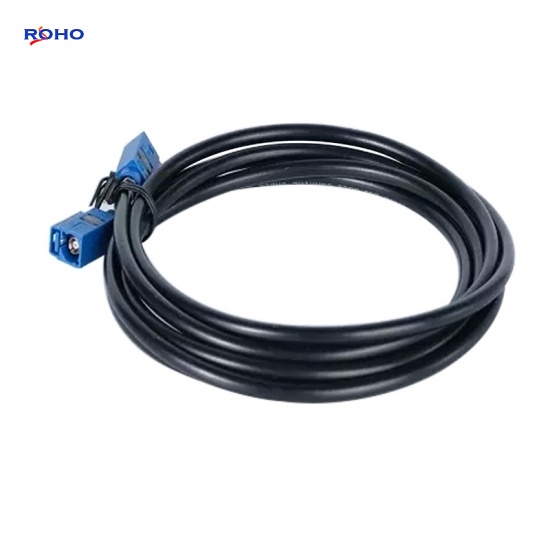

Automotive Fakra Cable Assembly Fakra C Jack Female to Jack Female Coaxial Connector with RG174 Pigtail Cable

FAKRA Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, SMA or TNC connector;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Automotive Fakra Cable Assembly Fakra C Jack Female to Jack Female Coaxial Connector with RG174 Pigtail Cable



The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to Fakra cable assembly is right angle or straight connectors which is jack to jack, jack to plug, plug to jack or plug to plug gender. This Fakra jack to Fakra jack cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm Fakra for connector 2, Cable is 50ohm flexible cable type RG174.



Specifications

ELECTRICAL DATA
Connector 1 Series Fakra C
Connector 1 Style Str Jack
Cable Type RG174
Connector 2 Series Fakra C
Connector 2 Style Str Jack
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material PA / PBT & PA / LCP
Body Finish
Black /  White /  Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Advanced Driving Assistant System (ADAS)
  • Telematics, multimedia
  • Infotainment, GPS
  • Navigation and camera
  • Body control, safety, security and comfort
