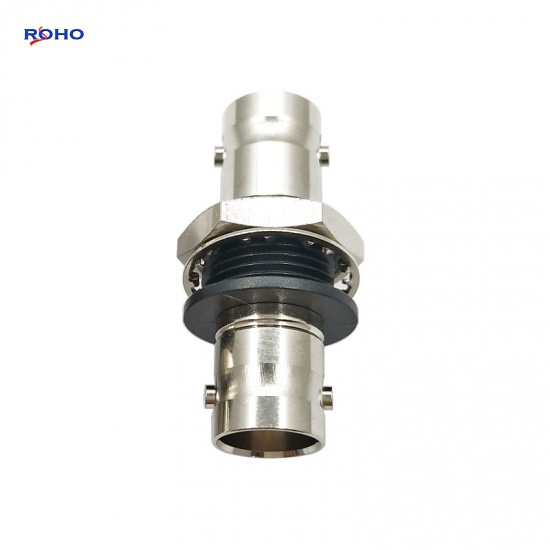

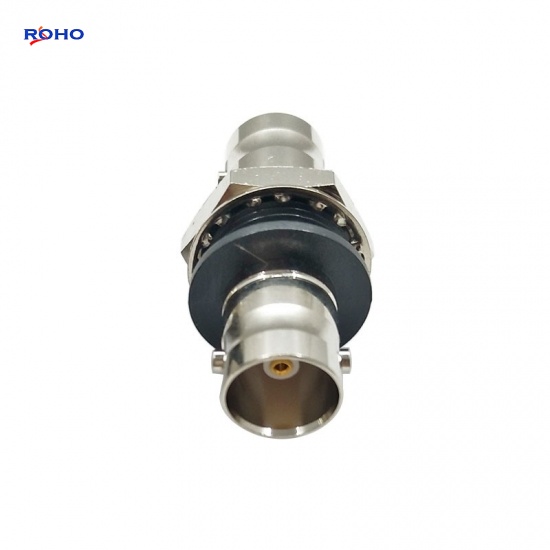

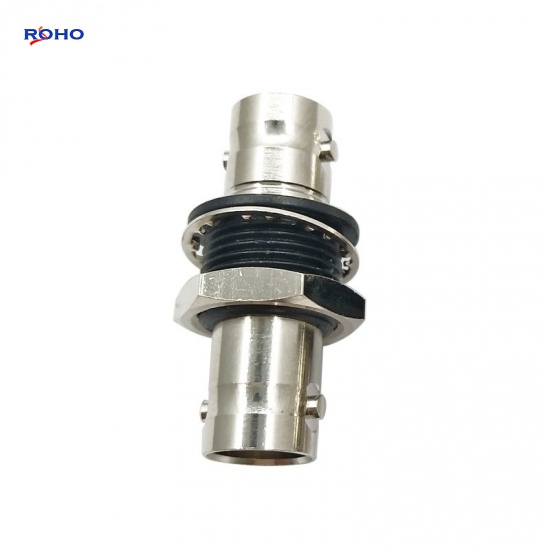

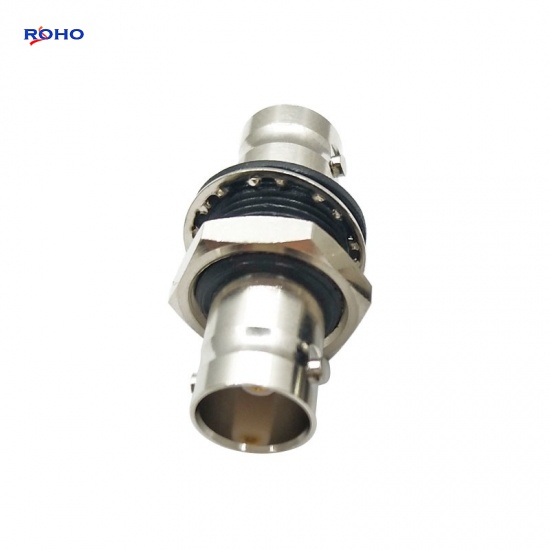

BNC Female to BNC Female Bulkhead Mount RF Connector Adapter with Isolated Ground
The BNC Adapter has different BNC to BNC adapter gender, is a in-series coaxial adapter. The BNC to BNC adapters has female to female, female to male, male to female or male to male gender designs. it has straight, tee or right angle body. ROHO's BNC to BNC adapters offers standard or high performance designs. This BNC female to BNC female adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | BNC |
Adapter Side 1 Style | Female |
Adapter Side 2 Series | BNC |
Adapter Side 2 Style | Female |
Frequency (Max GHz) | 4 |
Impedance (Ohms) | 50 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
ELECTRICAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- Suitable for Antennas
- Broadcast, Radios
- Wi-Fi, Telecom,LMR
- Wireless LAN Devices, CCTV
- Microwave Applications and Digital Communication System
