BNC Cable Assemblies

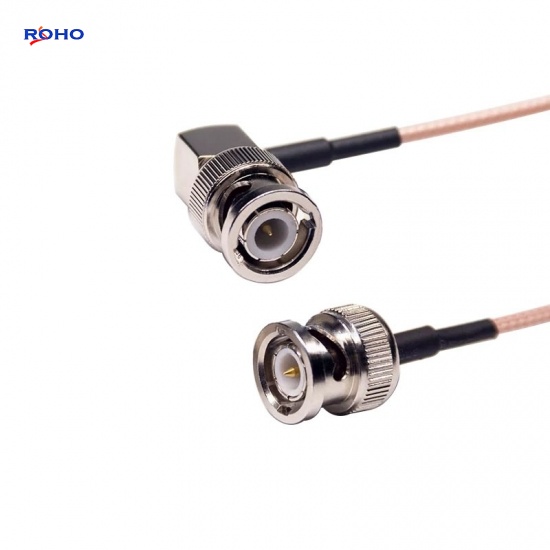

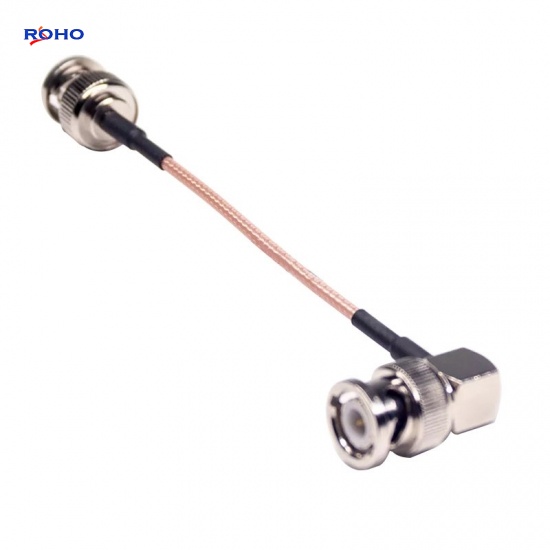

BNC Male Right Angle to BNC Male Straight Connector Cable Assembly with RG316 Coax Cable

BNC Cable assembly Features:

  • Can be combined with 1.0-2.3, 7-16 DIN, BMA, BNC, F, FAKRA, MCX, N, SMA, SMB, Straight Cut Lead, TNC, or UHF connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible, formable or semirigid cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

BNC Male Right Angle to BNC Male Straight Connector Cable Assembly with RG316 Coax Cable



The BNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195, LMR240, RG142, RG174, RG178, RG179, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG405, RG55, RG58 or RG59 cable; the body of BNC to BNC cable assembly is right angle or straight connectors which is female to male, male to female or male to male gender. This BNC male to BNC male cable assembly uses a 50ohm right angle type BNC for connector 1 and a 50ohm straight type BNC for connector 2, Cable is 50ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series BNC
Connector 1 Style RA Male
Cable Type RG316
Connector 2 Series BNC
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 4GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Telecommunications
  • Automotive
  • Computers/LANs
  • Medical Equipment
  • Base Stations
  • Antennas
