FAKRA Cable Assemblies

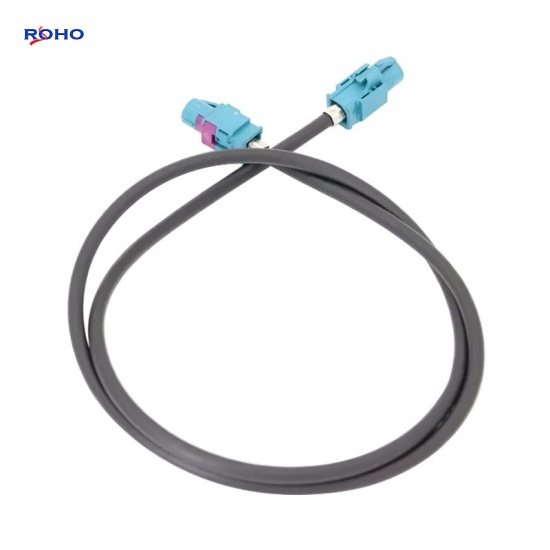

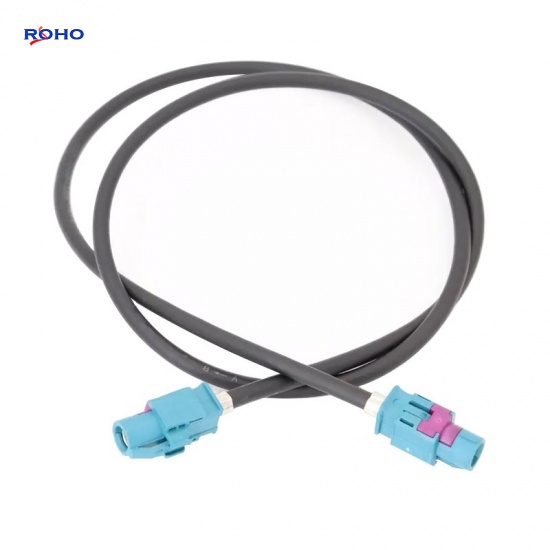

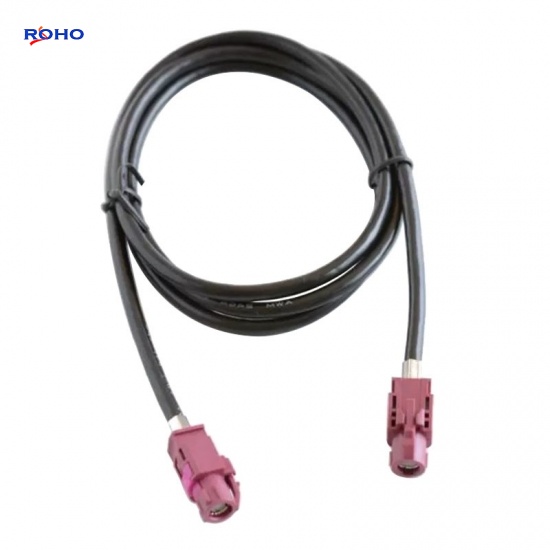

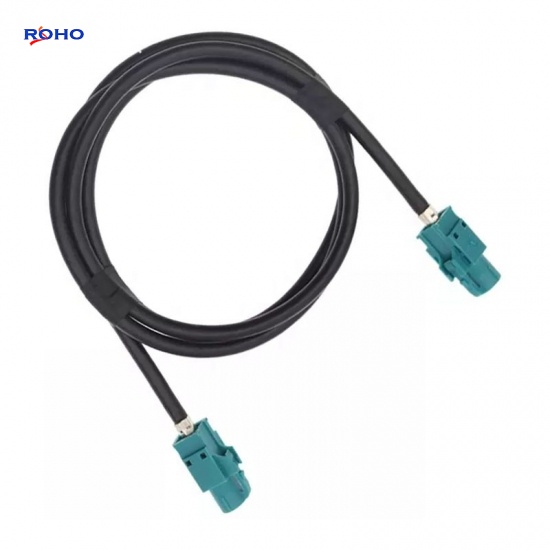

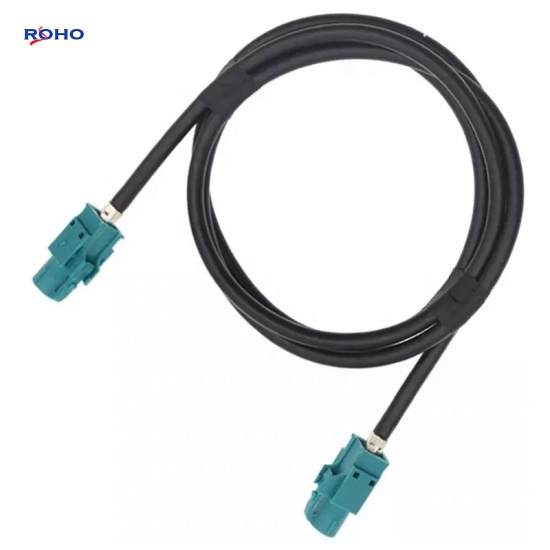

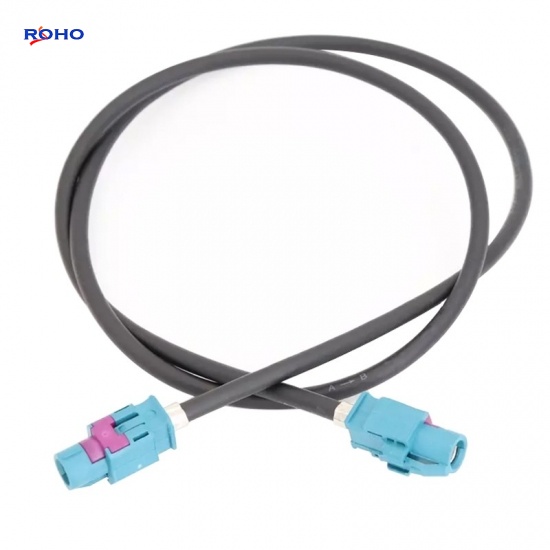

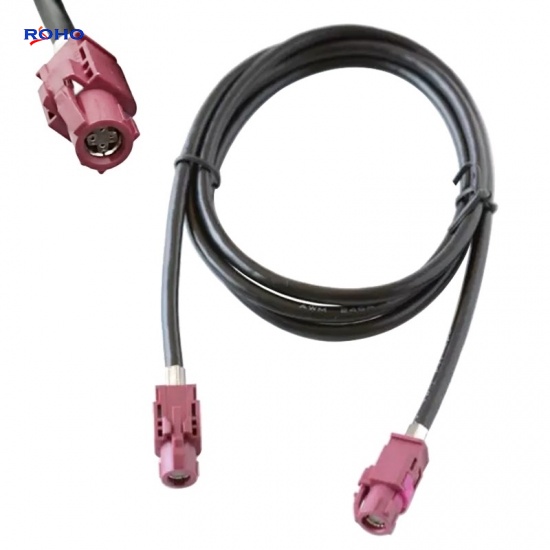

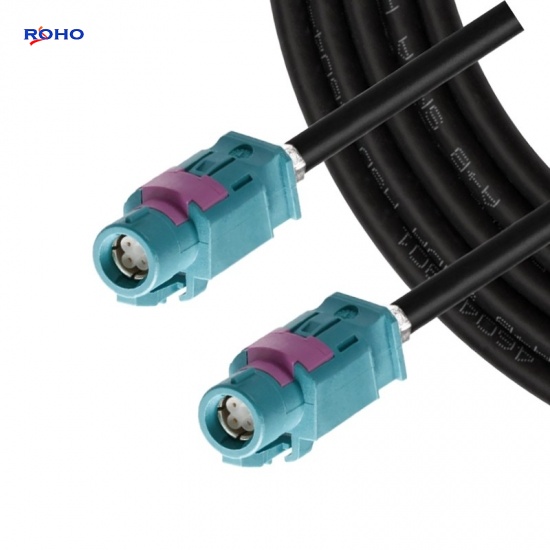

Fakra HSD LVDS 4 Pin Fakra HSD Z O H Jack to Fakra HSD Z O H Jack with Dacar 535 4-Core Cable

FAKRA Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, SMA or TNC connector;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Fakra HSD LVDS 4 Pin Fakra HSD Z O H Jack to Fakra HSD Z O H Jack with Dacar 535 4-Core Cable



The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to Fakra cable assembly is right angle or straight connectors which is jack to jack, jack to plug, plug to jack or plug to plug gender. This Fakra HSD jack to Fakra HSD jack cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm Fakra for connector 2, Cable is 50ohm flexible cable type dacar 535 4-core.



Specifications

ELECTRICAL DATA
Connector 1 Series Fakra HSD Z&O&H
Connector 1 Style Str Jack
Cable Type Dacar 535 4-Core
Connector 2 Series Fakra HSD Z&O&H
Connector 2 Style Str Jack
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material PA / PBT & PA / LCP
Body Finish
Black /  White /  Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Advanced Driving Assistant System (ADAS)
  • Telematics, multimedia
  • Infotainment, GPS
  • Navigation and camera
  • Body control, safety, security and comfort
