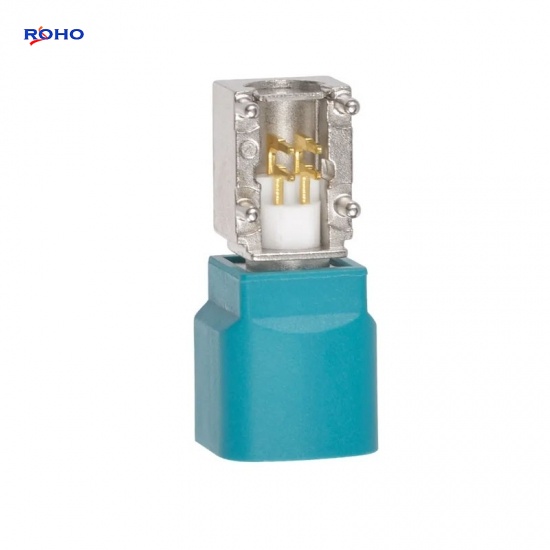

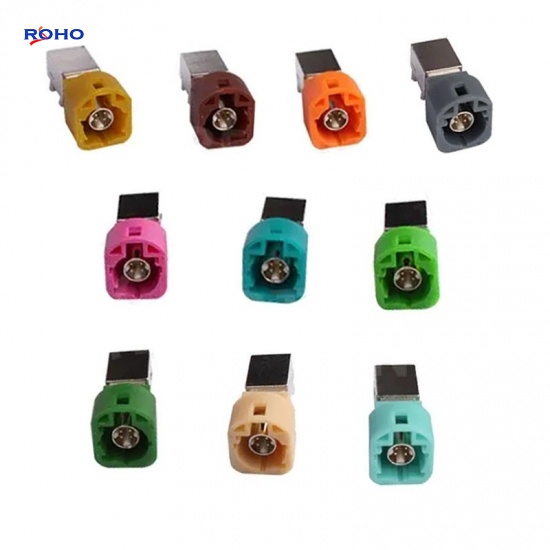

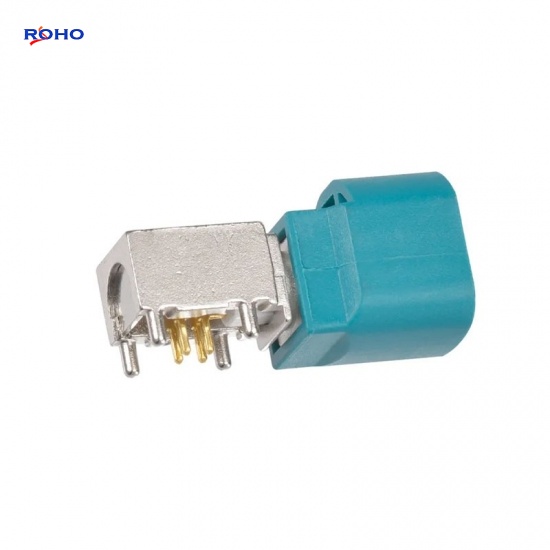

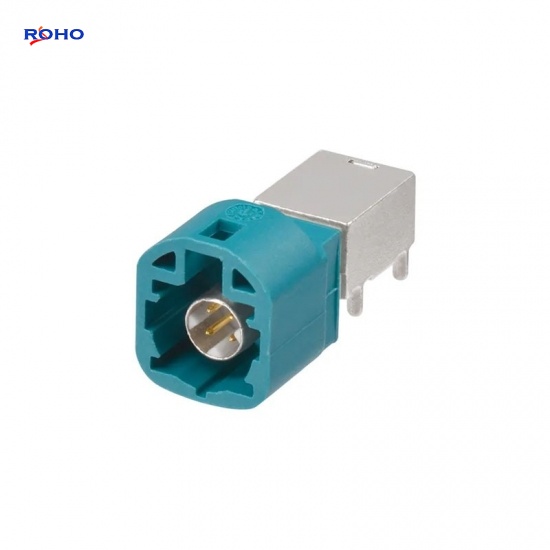

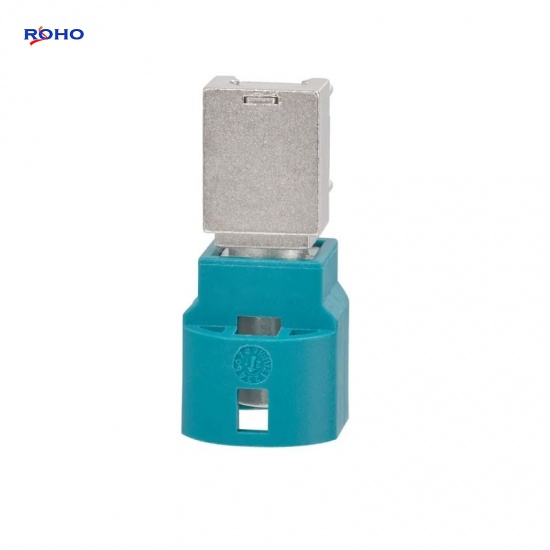

HSD Fakra Z 4 Pin Plug Male Right Angle PCB Mount Coaxial Connector for HSD RF Car
RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards; FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.
Specifications
ELECTRICAL DATA | |
Insertion Loss | ≤0.25dB |
Characteristic impedancd | 50Ω |
Frequency range | 0~6GHz |
Working voltage | ≤335V |
VSWR | ≤1.3 |
Insulation Resistance | 1000MΩ |
Dielectric Withstanding voltage | ≥1000V |
Contact resistance | ≤20mΩ |
MECHANICAL DATA | |
Plastic housing retention force | ≥100N |
Cable retention force | ≥120N |
Temperature Range | −40°C to +105°C |
Solder version | to 200℃/60s |
Solder version SND | to 260℃/60s |
Material And Plating | |
Plastic housing | P.A |
Female center contacts | Bronze |
female and male body ¢er contact | Brass or Zinc Alloy |
Insulators | PTFE |
Applications
- Global Positioning Satellite
- Automotive
- Satellite Radio
- Bluetooth
- Remote Vehicle Diagnostic
- Infotainment Systems
