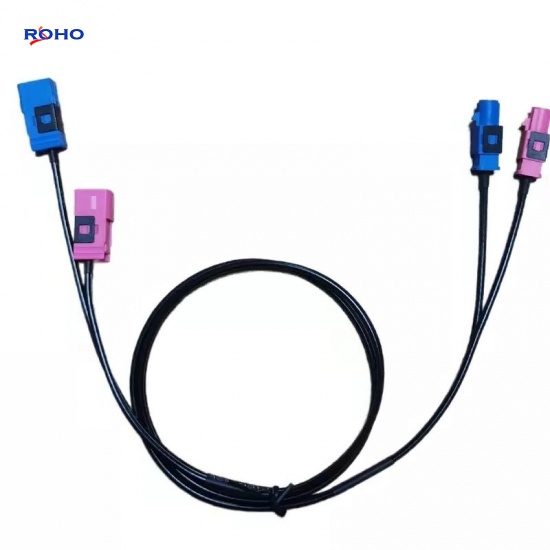

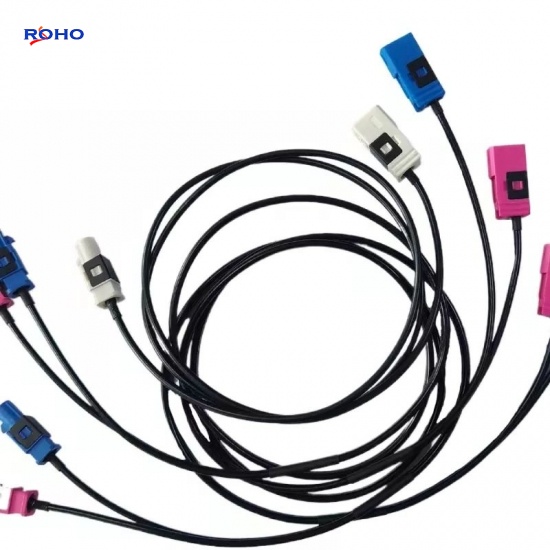

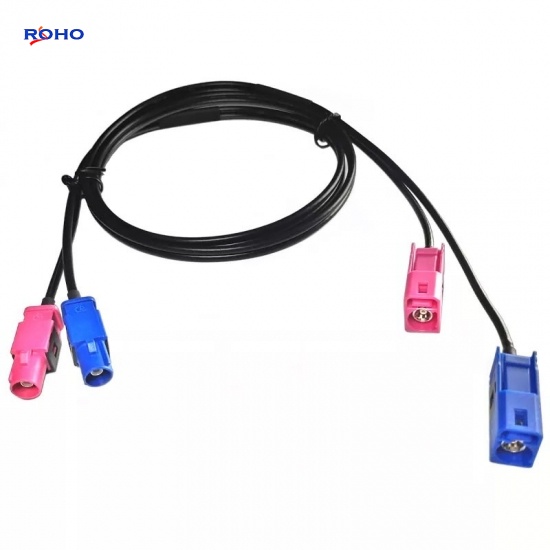

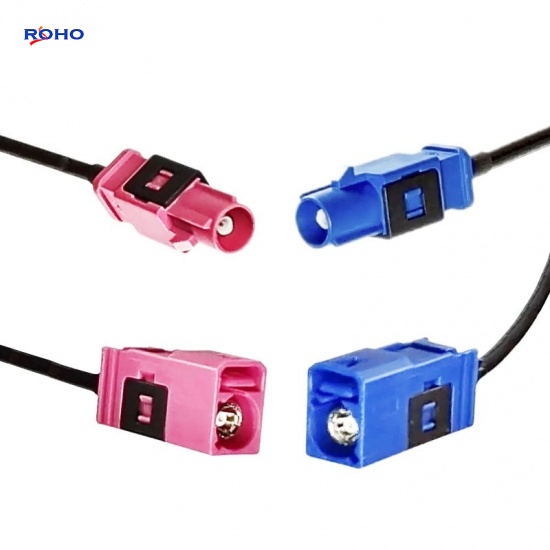

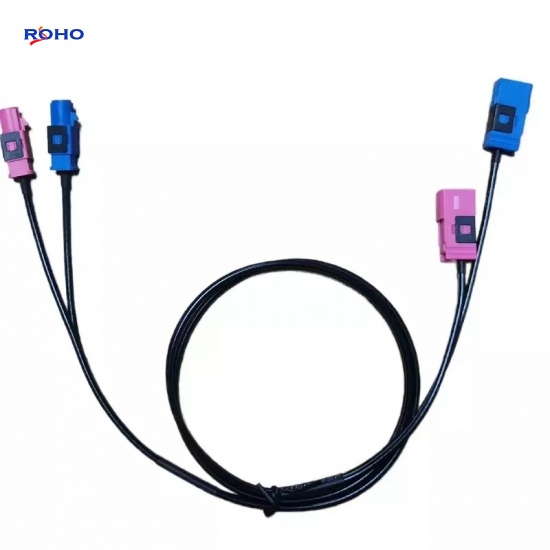

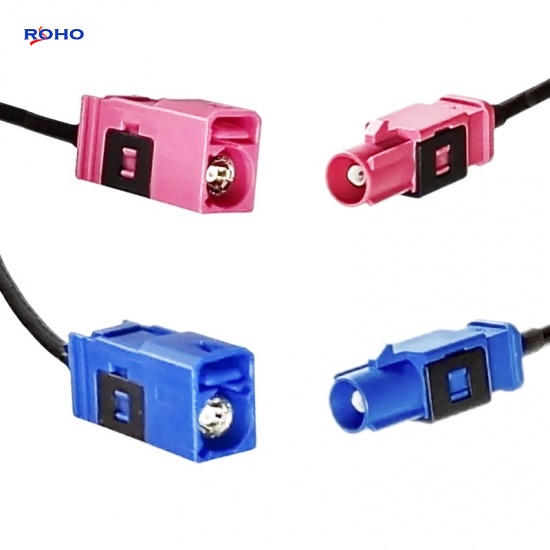

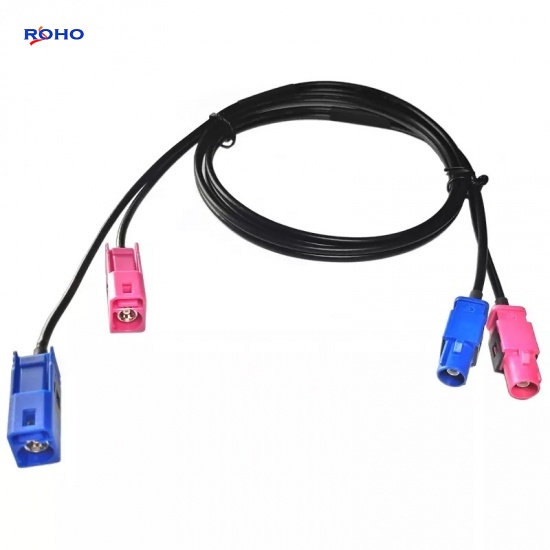

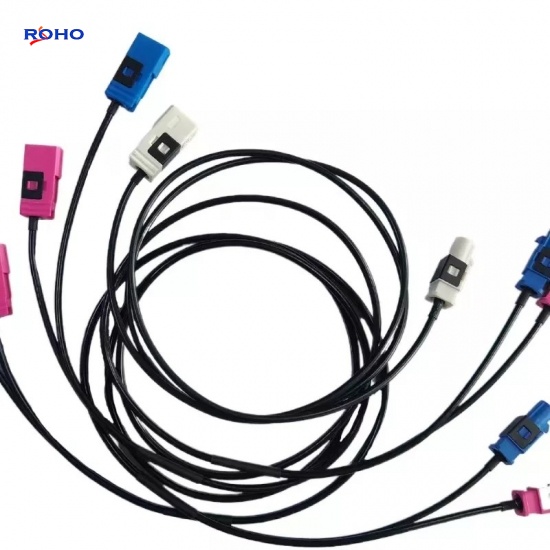

Low Loss Fakra H C Jack Female to Fakra Jack Female with Various Widely Extension Pigtail RF 1.13mm RG174 RG178 Cable
The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to Fakra cable assembly is right angle or straight connectors which is jack to jack, jack to plug, plug to jack or plug to plug gender. This Fakra jack to Fakra jack cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm Fakra for connector 2, Cable is 50ohm flexible cable type 1.13mm or RG174 or RG178.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | Fakra H or C |
Connector 1 Style | Str Jack |
Cable Type | 1.13mm or RG174 or RG178 |
Connector 2 Series | Fakra H or C |
Connector 2 Style | Str Jack |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | No |
Max Frequency | 6GHz |
Working Temperature | -65°C to +165°C |
MATERIAL DATA | |
Body Material | PA / PBT & PA / LCP |
Body Finish |
Black / White / Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
|
Contact Material | Phosphor Bronze/Beryllium Copper |
Contact Finish | Gold/Silver |
Insulator Material | PTFE |
Applications
- Advanced Driving Assistant System (ADAS)
- Telematics, multimedia
- Infotainment, GPS
- Navigation and camera
- Body control, safety, security and comfort
