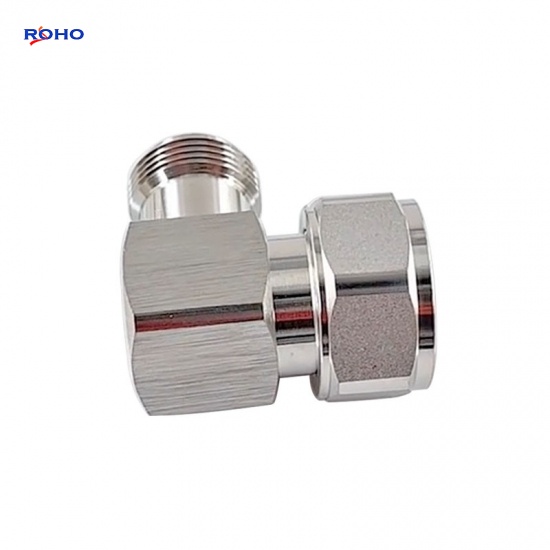

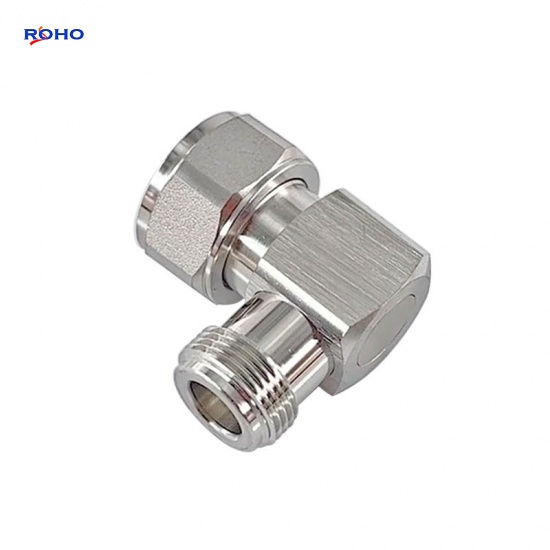

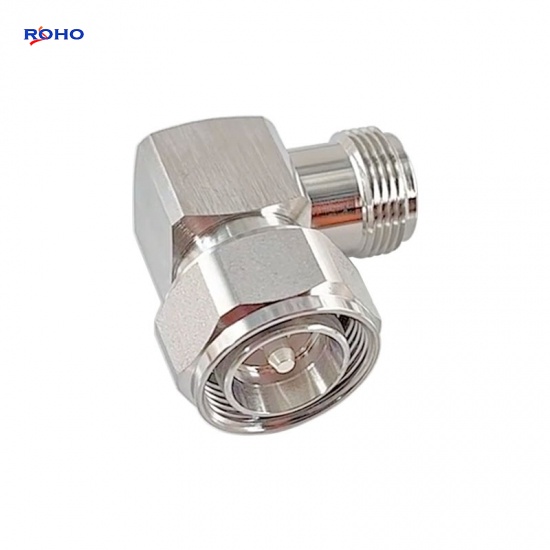

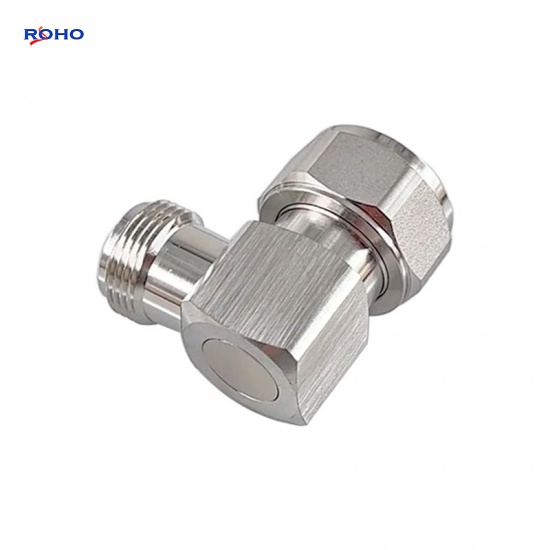

Low Pim N Female to 4.3-10 Male Right Angle RF Connector Adapter
The N Type Adapter has N to 4.3-10 standard polarity adapter gender. The N to 4.3-10 adapters has female to female, female to male, male to female or male to male gender, and has bulkhead, 4 hole panel or mountless configurations. ROHO's N to 4.3-10 standard polarity adapters are available in quick disconnect (QD) or standard interfaces; it has 50ohm or 75ohm impedance standard polarity, and has straight, radius right angle or right angle versions. ROHO offers low PIM or high performance designs.This N female to 4.3-10 male adapter has a maximum frequency of 6GHz, and is a right angle RF adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | N-Type |
| Adapter Side 1 Style | Female |
| Adapter Side 2 Series | 4.3-10 |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 6 |
| Impedance (Ohms) | 50 |
| Low PIM | Yes |
| Orientation | Right Angle |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material | Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Base stations
- Broadcast systems
- Radar equipment
- Microwave Radio
- Outdoor antennas
- Wireless LAN
- Satellite systems
- Surge protection
