N Type Adaptors

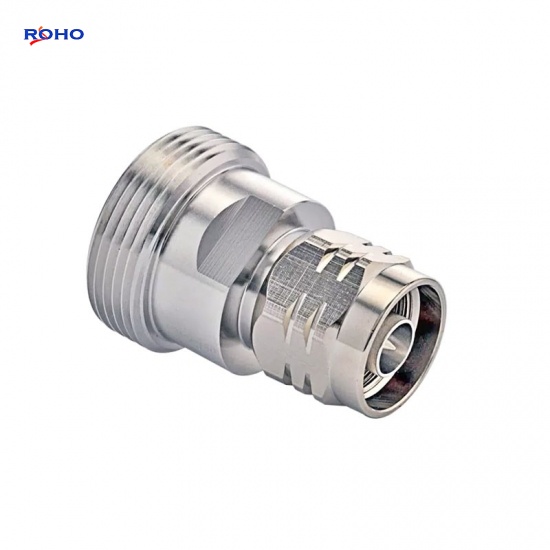

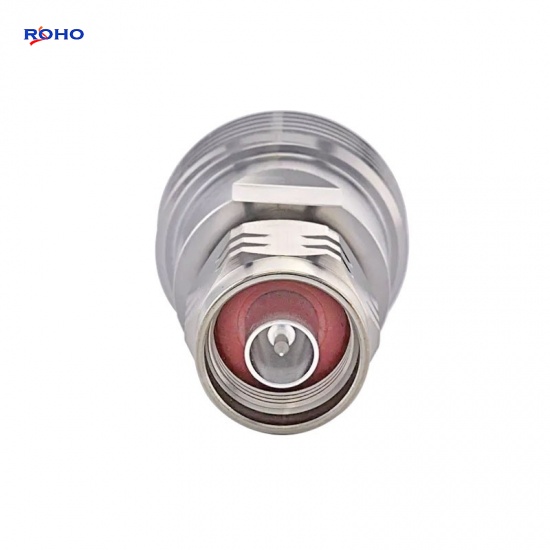

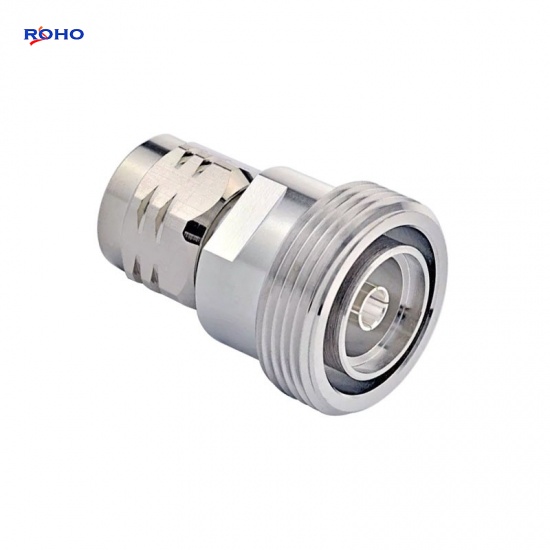

Low Pim N Male to 7-16 DIN Female Straight RF Connector Adapter

N type adapters Features:

  • Allow to interface N connectors with N, QMA, QN, SMA, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7-16 DIN, 4.3-10, BNC, MCX, UHF, SMB, TNC or UHF connectors;
  • Satisfy for a durable, weatherproof, medium-size RF adapter with consistent performance;
  • High frequency range up to 8GHz;
  • Threaded coupling mechanism, used in all systems where excellent RF and mechanical performance.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

Low Pim N Male to 7-16 DIN Female Straight RF Connector Adapter



The N Type Adapter has N to 7-16 DIN standard polarity adapter gender. The N to 7-16 DIN has female to female, female to male, male to female or male to male gender, and has bulkhead or mountless configurations. ROHO's N to 7-16 DIN standard polarity adapters are available in standard interfaces; it has 50ohm impedance standard polarity, and has straight body. ROHO offers low PIM or high performance designs.This N male to 7-16 DIN female adapter has a maximum frequency of 8GHz, and is a straight RF adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series N-Type
Adapter Side 1 Style Plug/Male
Adapter Side 2 Series 7-16 DIN
Adapter Side 2 Style Jack/Female
Frequency (Max GHz) 8
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material Brass
Body Finish
Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Base stations
  • Broadcast systems
  • Radar equipment
  • Microwave Radio
  • Outdoor antennas
  • Wireless LAN
  • Satellite systems
  • Surge protection
