MCX Plug Male Right Angle Connector Crimp Solder Attachment for RG178 Cable

MCX Connector Features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less;
  • Attachment methods include crimp/solder or solder;
  • Body is brass or stainless steel.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

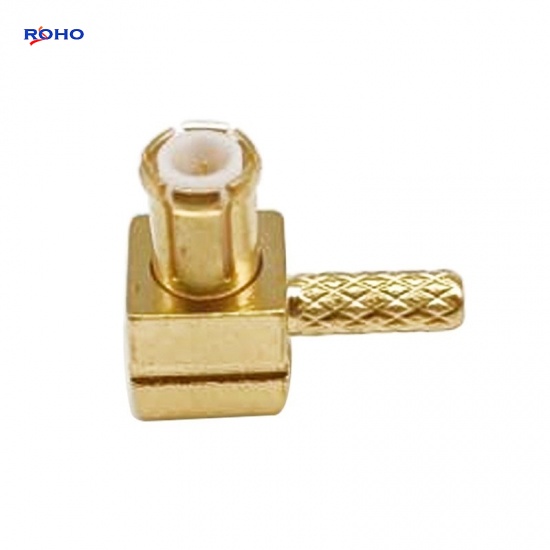

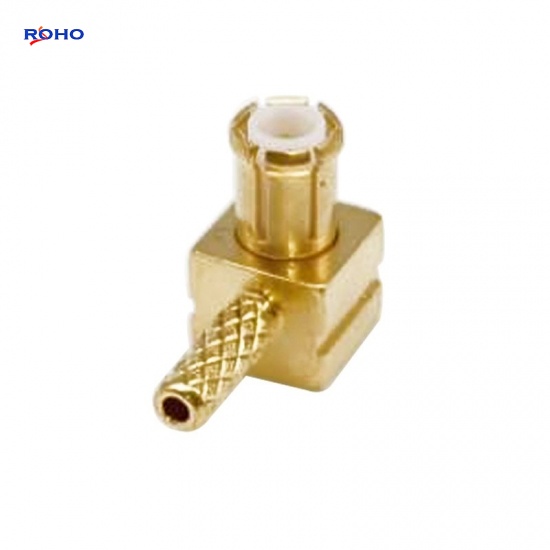

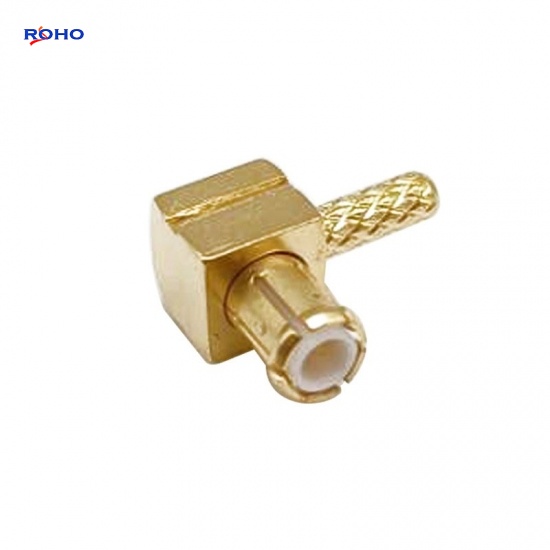

MCX Plug Male Right Angle Connector Crimp Solder Attachment for RG178 Cable



The MCX (Micro Coaxial) connector is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling;A robust range of connectors are available, including printed circuit board and cable connectors, as well as 12G optimized products; this MCX male coaxial connector has an interface type of RG178 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its right angle body is brass with gold plating.





Specifications

50 OHM

ELECTRICAL DATA
Impedance                                                                   50Ω
Frequency range 6GHz
Dielectric withstanding voltage (at sea level) 750Vrms,50Hz
Working voltage 225Vrms,50Hz (at sea level) / 42Vrms,50Hz (at 21000m/70000ft)
Insulation resistance  10000 mΩ
Contact resistance Inner conductor: 5mΩ
Outer conductor: 1mΩ
RF leakage(measured at 1GHZ) Flexible: 60dB
Semi-rigid cable: 70dB
MECHANICAL DATA
Engagement force 25Nm /5.6lbs
Disengagement force 8N-20N / 1.8 lbs-4.5lbs
Contact captivation 10N / 2.3 lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range −40°C to +90°C
MATERIAL DATA
Bodies Brass--Au plated
Pin contacts Brass--Au plating
Socket contacts Coppper beryllium alloy / Phosphor bronze--Au plating
Crimp ferrules Brass--Au plating
Insulator PTFE

75 OHM

ELECTRICAL DATA
Impedance                                                                   75Ω
Frequency range 6GHz
Dielectric withstanding voltage (at sea level) 750Vrms,50Hz
Working voltage 170Vrms,50Hz (at sea level) / 42Vrms,50Hz (at 21000m/70000ft)
Insulation resistance  10000 mΩ
Contact resistance Inner conductor: 5mΩ
Outer conductor: 1mΩ
RF leakage(measured at 1GHZ) Flexible: 60dB
Semi-rigid cable: 70dB
MECHANICAL DATA
Engagement force 25Nm /5.6lbs
Disengagement force 8N-20N / 1.8 lbs-4.5lbs
Contact captivation 10N / 2.3 lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range −65°C to +165°C
MATERIAL DATA
Bodies Brass--Au plated
Pin contacts Brass--Au plating
Socket contacts Coppper beryllium alloy / Phosphor bronze--Au plating
Crimp ferrules Brass--Au plating
Insulator PTFE



Applications

  • Global Positioning System (GPS)
  • WLAN
  • PC/LAN
  • Base Station
  • Radios
  • Head End Equipment
  • Instrumentation
  • Automotive
