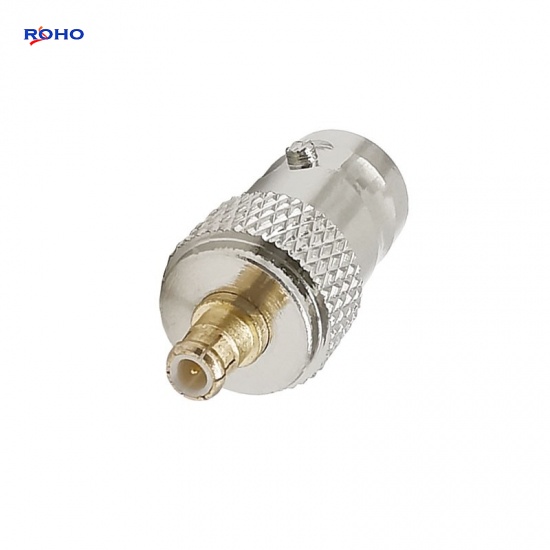

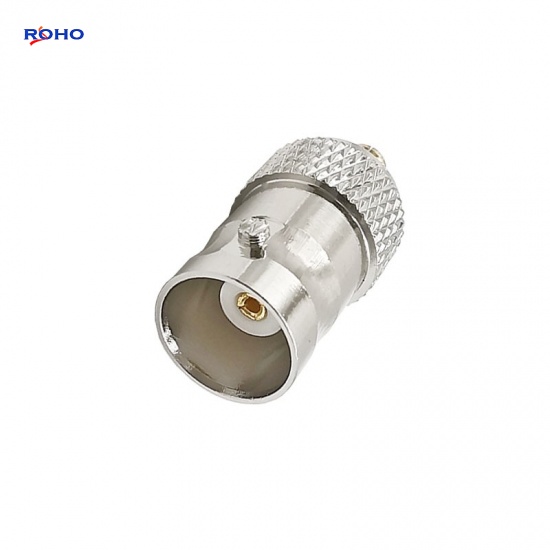

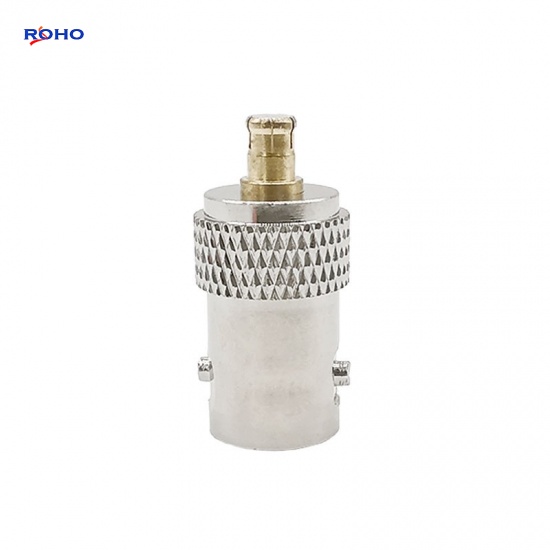

MCX Plug Male to BNC Female RF Coaxial Connector Adapter
The MCX Adapter has different MCX to BNC adapter gender, that is a connectivity of two series adapters, The MCX to BNC adapters has jack to female, jack to male, plug to female, or plug to male gender varieties, and has bulkhead or mountless configurations. ROHO's MCX to BNC adapters offers standard polarity or reverse polarity options. This MCX plug to BNC female adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
ELECTRICAL DATA | |
Adapter Side 1 Series | MCX |
Adapter Side 1 Style | Plug |
Adapter Side 2 Series | BNC |
Adapter Side 2 Style | Female |
Frequency (Max GHz) | 4 |
Impedance (Ohms) | 50 |
Low PIM | No |
Orientation | Straight |
Temp (Max Degrees Celsius) | 165 |
Temp (Min Degrees Celsius) | -65 |
MATERIAL DATA | |
Body Material |
Brass |
Body Finish |
Nickel/Ternary alloy |
Contact Material |
Phosphor Bronze/Beryllium Copper |
Contact Finish |
Gold/Silver |
Insulator Material |
PTFE |
Applications
- FPV Drone, Extension Cable
- Signal Booster, Repeaters
- Audio, Video, Car Aerial
- Networks, Wifi router
- Wifi antenna, GPS
- Radio scanners, Wlan
- Radio, Telecom
