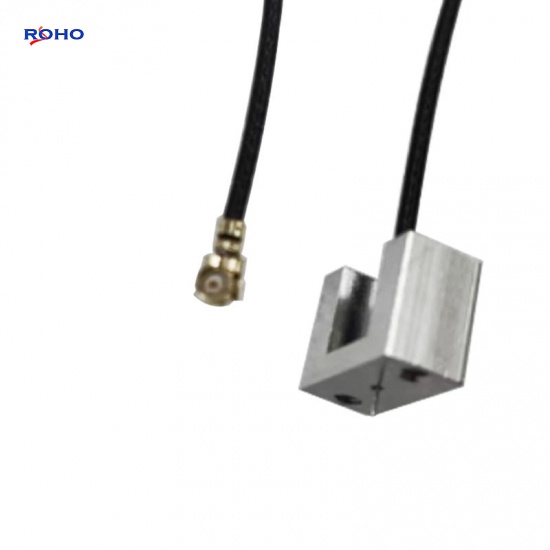

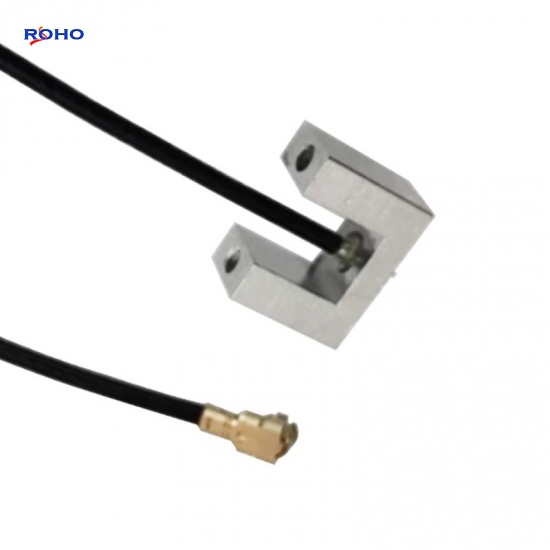

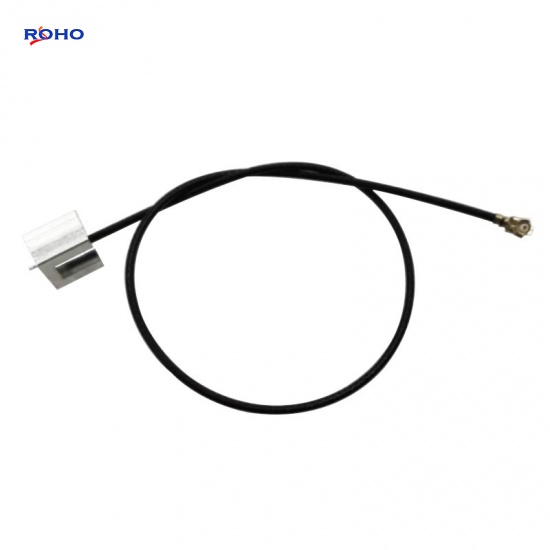

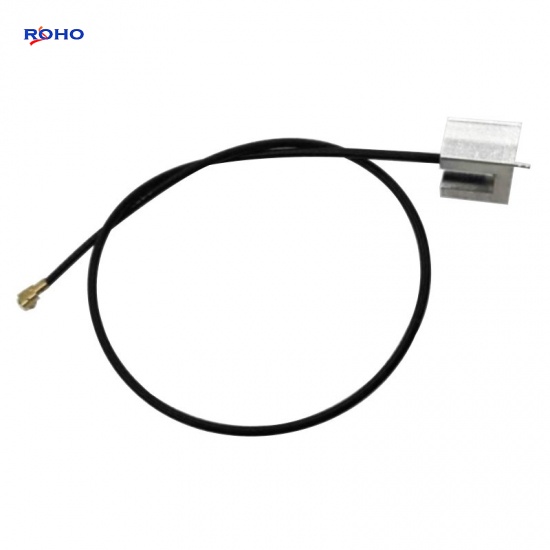

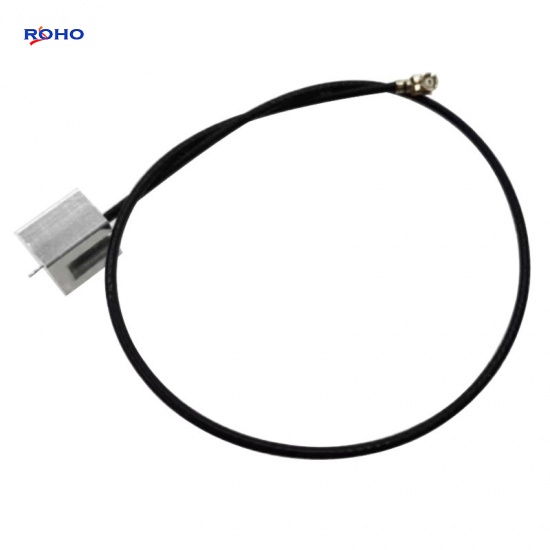

MHF IPEX UFL Angle Plug Connector to 2 Screw Thread Bushing with 1.3mm Cable Assembly
The UFL cable assembly can use ultra-fine coaxial cable such as 0.81mm, 1.13mm, 1.37mm, RG178; the body of UFL to UFL cable assembly is straight connectors which is plug to plug or plug to jack gender. This UFL plug to bushing cable assembly uses a 50ohm straight UFL for connector 1 and a bushing for connector 2, Cable is a 50ohm Type 1.3mm.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | UFL/IPEX/MHF |
| Connector 1 Style | Plug |
| Cable Type | 1.3mm |
| Connector 2 Series | Bushing |
| Connector 2 Style | / |
| Contact Termination | Solder |
| Shield Termination | / |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6.5GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Wireless LAN Devices (Wi-Fi 6)
- Bluetooth devices
- Car navigation
- drone,PDA,GPS
- wireless transmission devices
- electronic measuring devices
