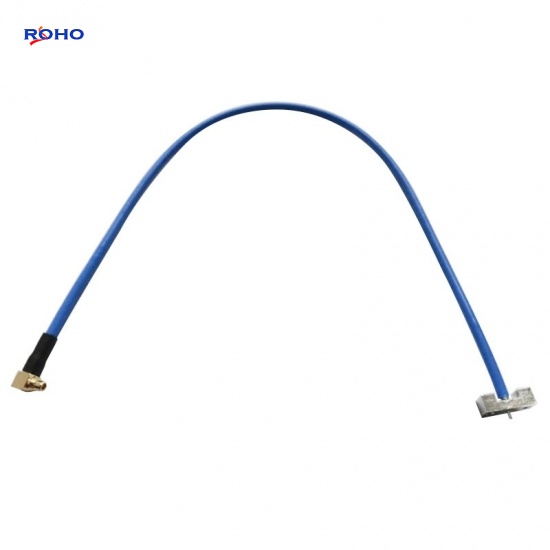

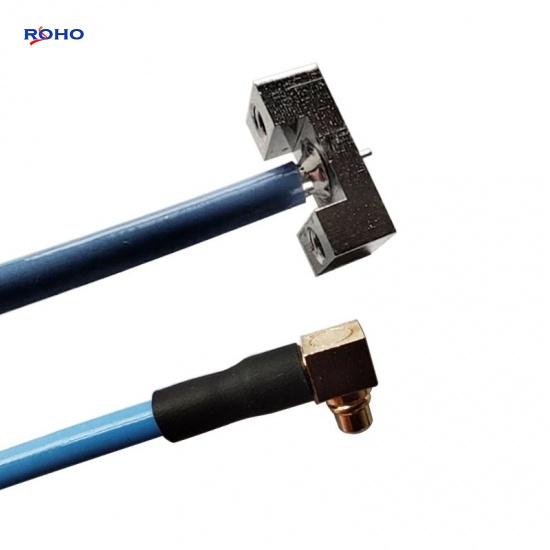

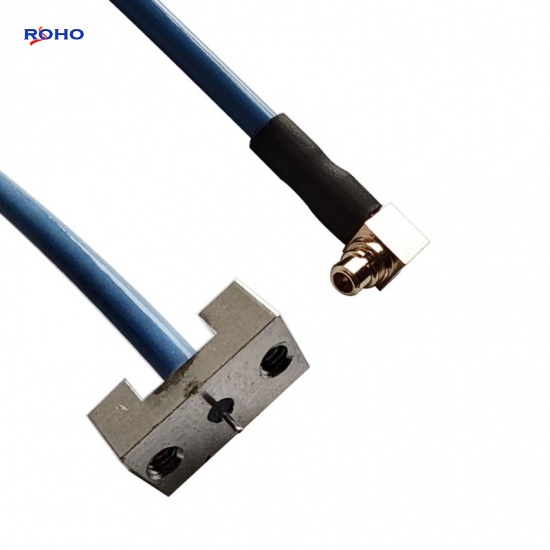

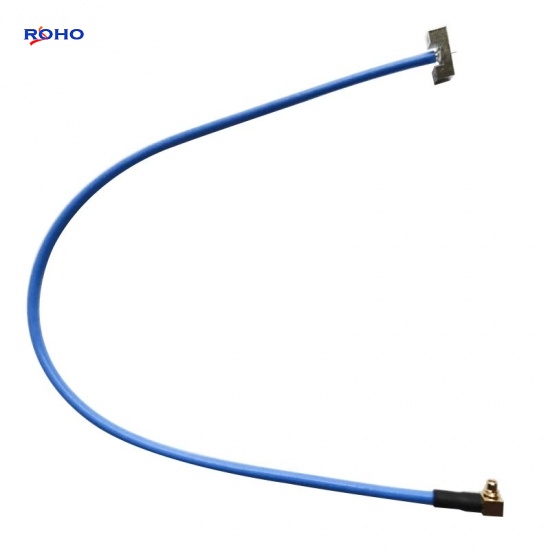

MMCX Right Angle Plug Male Connector to Bushing with RG405 Cable Assembly
The MMCX cable assembly can use flexible or formable coaxial cable such as LMR100, RG174, RG178, RG188 or RG316 cable; the body of MMCX to N cable assembly is right angle or straight connectors which is plug to male, jack to female, jack to male or plug to female gender. This MMCX plug to N female cable assembly uses a 50ohm right angle MMCX for connector 1 and a bushing for connector 2, Cable is 50ohm cable type RG405.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | MMCX |
| Connector 1 Style | RA Plug |
| Cable Type | RG405 |
| Connector 2 Series | Bushing |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material | Brass |
| Body Finish | Nickel/Ternary alloy |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Antennas
- Instrumentation
- Base Stations
- Broadband
- Telecommunications
