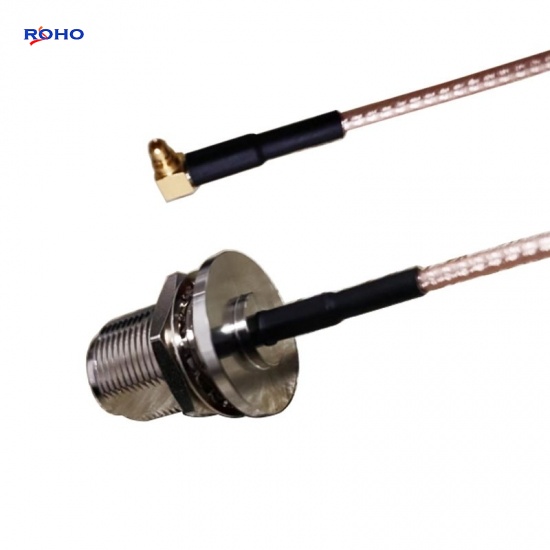

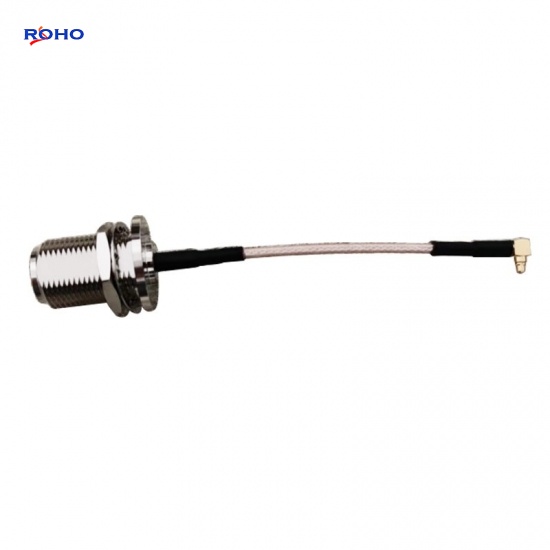

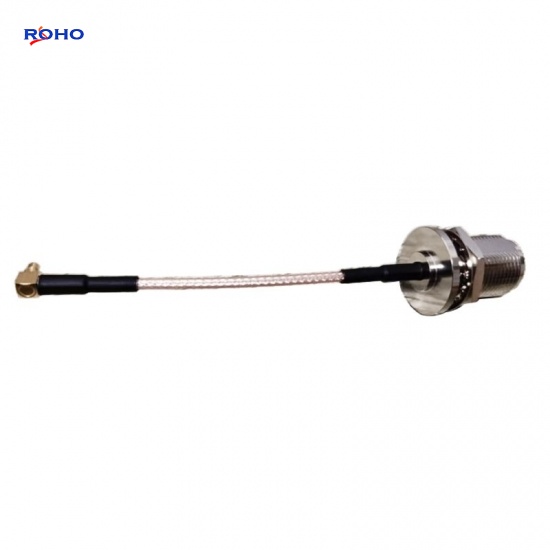

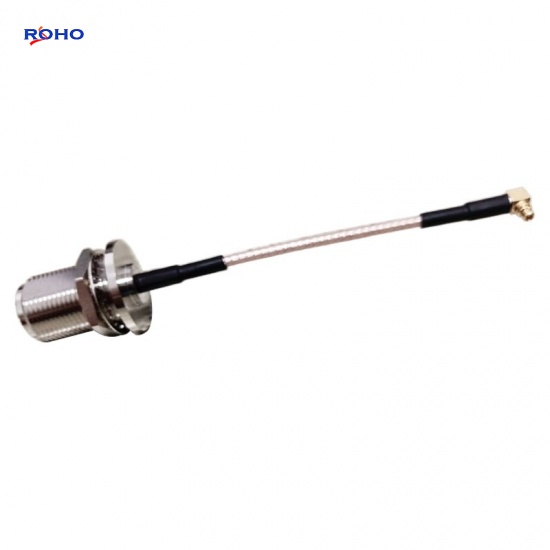

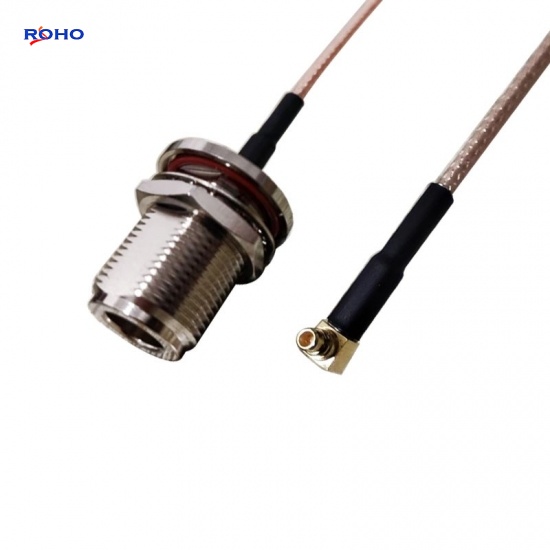

MMCX Right Angle Plug Male to N Female Bulkhead Connector Cable Assembly with RG316 Cable
The MMCX cable assembly can use flexible or formable coaxial cable such as LMR100, RG174, RG178, RG188 or RG316 cable; the body of MMCX to N cable assembly is right angle or straight connectors which is plug to male, jack to female, jack to male or plug to female gender. This MMCX plug to N female cable assembly uses a 50ohm right angle MMCX for connector 1 and a 50ohm straight N for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA | |
| Connector 1 Series | MMCX |
| Connector 1 Style | RA Plug |
| Cable Type | RG316 |
| Connector 2 Series | N |
| Connector 2 Style | Str Female |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Max Frequency | 6GHz |
| Working Temperature | -65°C to +165°C |
| MATERIAL DATA | |
| Body Material | Brass |
| Body Finish | Nickel/Ternary alloy |
| Contact Material | Phosphor Bronze/Beryllium Copper |
| Contact Finish | Gold/Silver |
| Insulator Material | PTFE |
Applications
- Antennas
- Instrumentation
- Base Stations
- Broadband
- Telecommunications
