MMCX Cable Assemblies

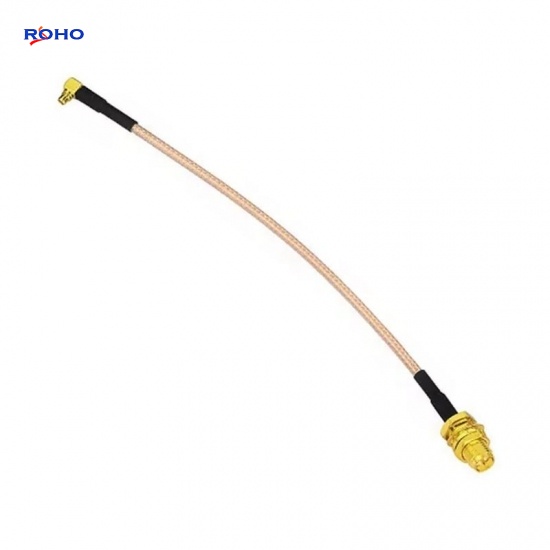

MMCX Right Angle Plug Male to Straight RP SMA Female Bulkhead RF Coaxial Connector Assembly with RG316 Cable

MMCX Cable assembly Features:

  • Can be combined with MMCX, N, SMA, SMB, SMP, TNC or U.FL connector;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible or formable cable.
  • Brand:

    ROHO
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-17days

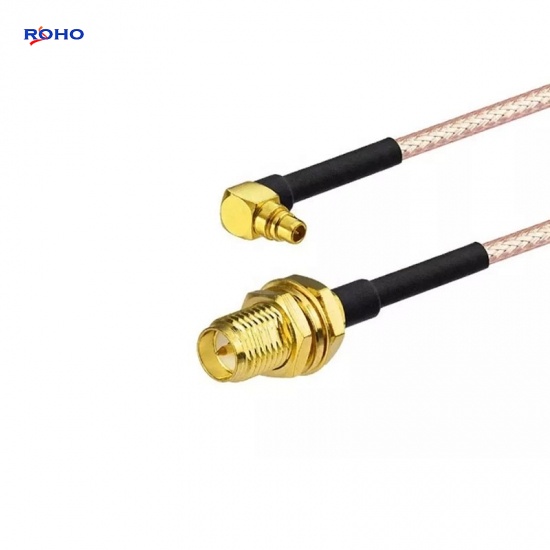

MMCX Right Angle Plug Male to Straight RP SMA Female Bulkhead RF Coaxial Connector Assembly with RG316 Cable



The MMCX cable assembly can use flexible or formable coaxial cable such as LMR100, RG174, RG178, RG188 or RG316 cable; the body of MMCX to SMA cable assembly is right angle or straight connectors which is plug to male, jack to female, jack to male or plug to female gender. This MMCX plug to RP SMA female cable assembly uses a 50ohm right angle MMCX for connector 1 and a 50ohm straight RP SMA for connector 2, Cable is 50ohm flexible cable type RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series MMCX
Connector 1 Style RA Plug
Cable Type RG316
Connector 2 Series RP SMA
Connector 2 Style Str Female
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Antennas
  • Instrumentation
  • Base Stations
  • Broadband
  • Telecommunications
